CRL 105Β° No-Hold-Open Concealed Overhead Door Closer - Side-Load ADA
CRL 105Β° No-Hold-Open Concealed Overhead Door Closer - Side-Load ADA
Regular price
$194.55 CAD
Regular price
Sale price
$194.55 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL8972S
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Americans with Disabilities Act
Yes
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Bottom Pivot Type
Dual Purpose Pivot
Closer Type
Overhead Concealed
Handing
Double Acting
Includes
CRL6972, CRL8010FS, CRL8010S, CRL8010DP
Material
Aluminum
Maximum Door Weight
200
No Hold Open
105Β°
Package Type
Side Load ADA S
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
CRL8010CPAL, CRL8010CPDU, HMC035, DCH4SAS, DCH4DUS, CRL8010SCP, SLB3, SLS1
Similar
CRL8772GE
Spindle
1/2
Spring Size
8.5
Top Rail Depth
1/2
Type
Center Hung
UL Listed
Yes
Overview
- For doors with 1/2" (13 mm) top rail depth
- Adjustable dual-purpose bottom pivot set for floor or threshold mounting
- Includes all necessary parts
- 5 Year Limited Warranty
- UL Listed

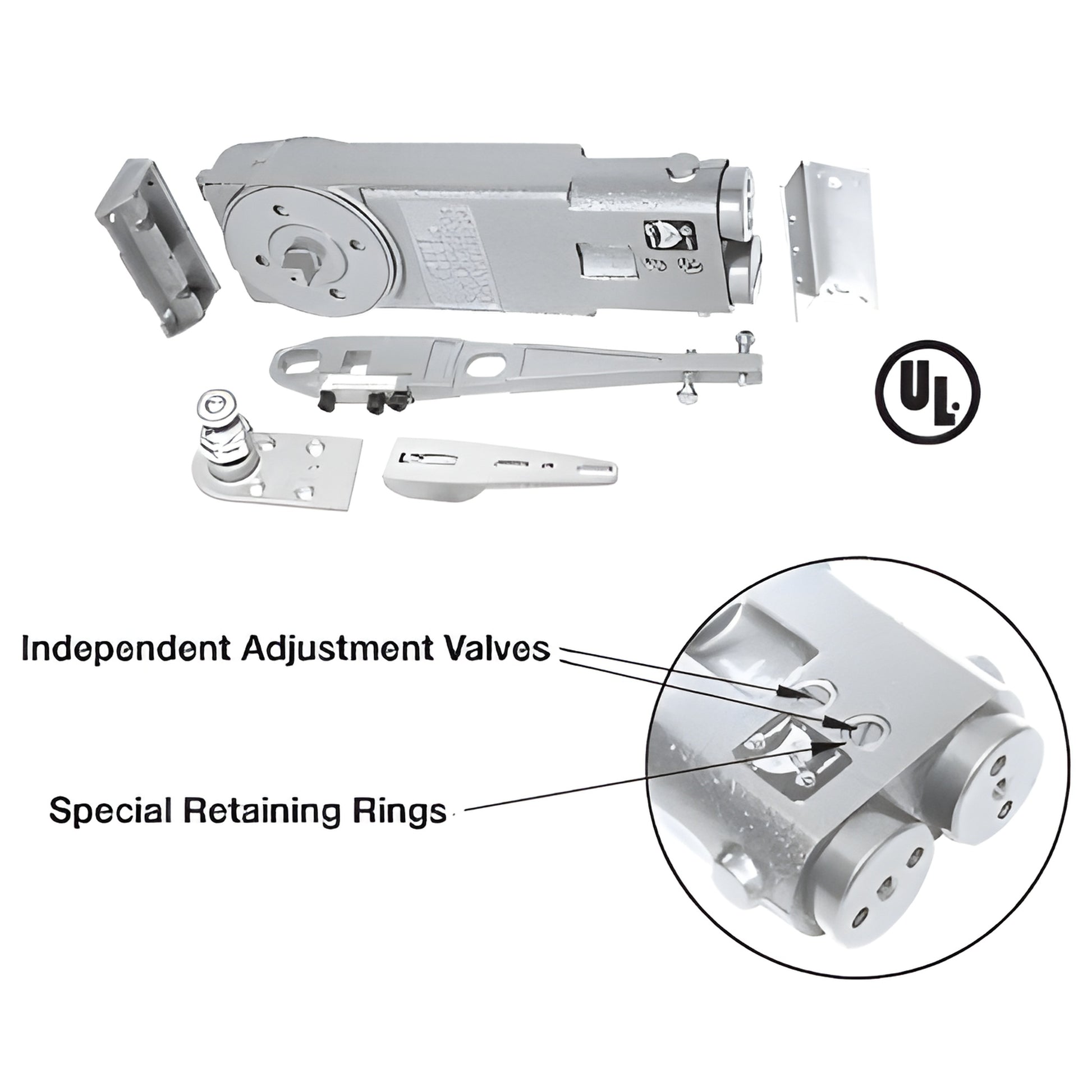

Model: CRL8972S β CRL Overhead Door Closer Kit designed for storefront and commercial aluminum doors. Each kit includes a medium spring-size door closer body, mounting clips, Type "S" side-load arm, and your choice of "DP" adjustable dual-purpose bottom pivot set or "GE" bottom pivot set. The closer fits standard 1-3/4" x 4" (44 x 102 mm) or larger extrusions.
Key features & differentiators
- Independent adjustment valves β Dual-action valves independently control closing speed and latching speed for precise operation.
- Special retaining rings β Prevent valve screws from backing out of the door closer body for improved reliability.
- Multiple hold options β Available in 90Β° and 105Β° hold-open or no hold-open configurations to match installation needs.
- Adjustable dual-purpose pivot β DP pivot allows floor or threshold mounting, reducing SKU complexity for installers.
Notes & limitations
- An auxiliary floor or overhead door stop is recommended to prevent damage from excessive door swing.
- A.D.A. compliant settings reduce opening force but may not provide sufficient spring power for some door sizes or site conditions.
- Not for use on doors weighing over 200 lbs (91 kg) or wider than 36" (914 mm).
Product warning: Closers set to meet A.D.A. opening force limits may not control and close certain doors due to varying site conditions and door size.
SKU: CRL8972S β Order this adjustable overhead door closer kit for reliable commercial storefront performance.
