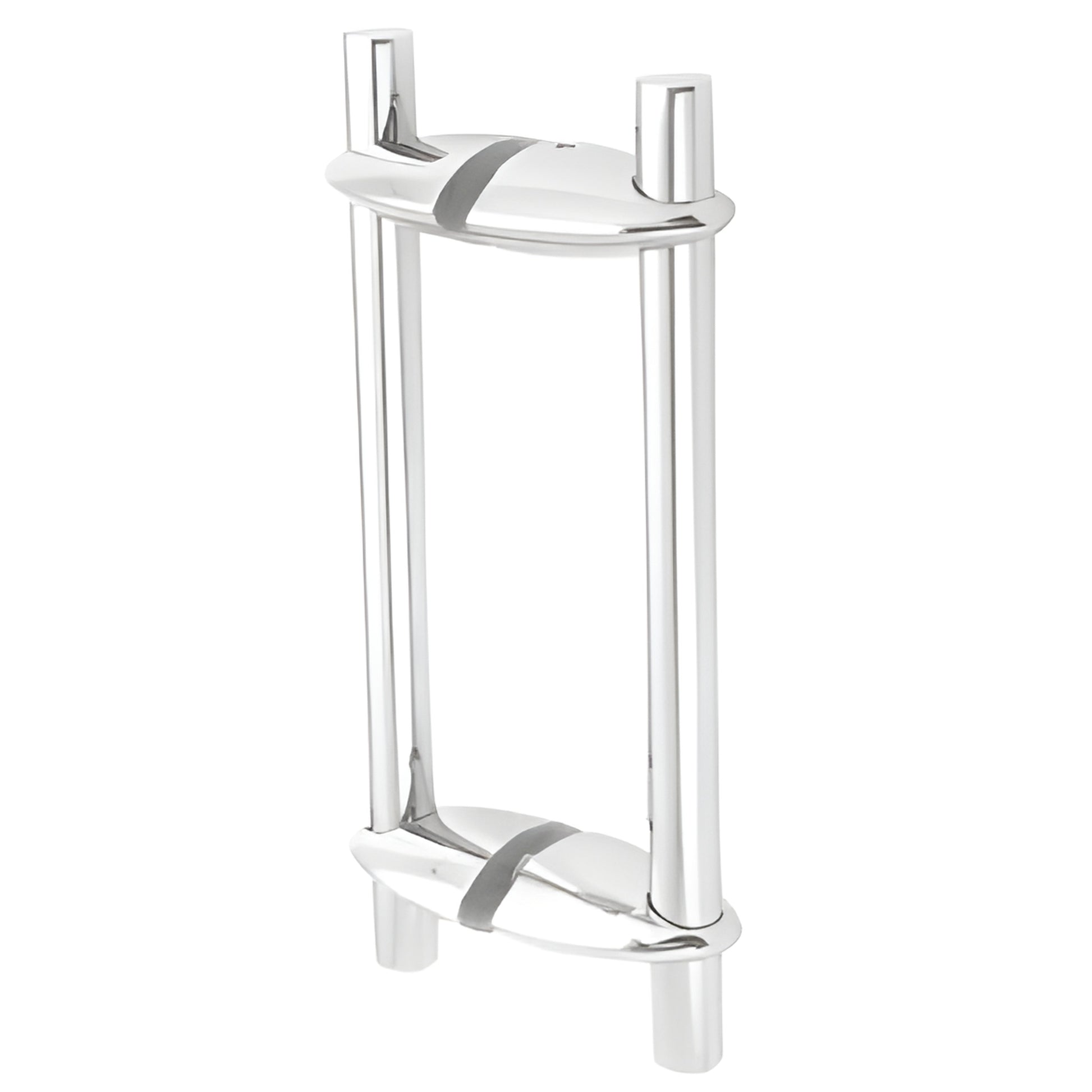

CRL 16" Polished Stainless Steel Adjustable Door Pull w/ VP2 Post
CRL 16" Polished Stainless Steel Adjustable Door Pull w/ VP2 Post
Regular price
$373.80 CAD
Regular price
Sale price
$373.80 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# VPS216PS
Shipping Weight: 5.291 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 5.291 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in. To 3/4 in. (10 mm To 19 mm)
Material
Stainless Steel
Mounting Center To Center
12 in. Adjustable (305 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Back-To-Back
Overall Length
16 in. (406 mm)
Overview
- Adjustable mounting posts fit 6" to 26-3/4" (152 to 679 mm) centers
- Fits 3/8" to 3/4" (10 to 19 mm) tempered monolithic glass
- Constructed of 1" (25 mm) diameter stainless steel tubing
- Designed for frameless glass door applications and commercial glass entrances
Product: CRL Variant Series Adjustable Mounting Post Style Pulls (SKU: VPS216PS)
The CRL Variant Series adjustable mounting post pulls mount to standard hole patterns—12", 18" and 24" (305, 457 and 610 mm)—and expand to fit almost any hole spacing from 6" to 26-3/4" (152 to 679 mm). Adjustable posts allow retrofit on nonstandard hole centers; additional mounting posts are available separately. Ideal for tempered monolithic glass doors and commercial frameless glass assemblies.
SPECIFICATIONS:
- For use with: 3/8" to 3/4" (10 to 19 mm) glass
- Construction: 1" (25 mm) diameter stainless steel tubing
- Glass fabrication required: Two 5/8" (16 mm) diameter holes
- Standard center-to-center options:
- VPS x 16: 12" (305 mm)
- VPS x 22: 18" (457 mm)
- VPS x 28: 24" (610 mm)
NOTE: Shown hole centers are standard locations; actual hole centers may be varied using the adjustable posts.
INCLUDES:
- 2 through-bolts for glass mounting
- 4 adjustable mounting posts (VP1 or VP2 depending on handle style)
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not rust- or stain-proof. Periodic maintenance preserves the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
For reliable adjustable stainless steel glass door pulls for tempered monolithic glass—SKU VPS216PS—contact us or add to cart to order today.
