- Adjustable mounting posts — fit 6" to 26-3/4" (152 to 679 mm) centers
- For 3/8" to 3/4" (10 to 19 mm) glass
- Constructed of 1" (25 mm) diameter stainless steel tubing
- Designed for monolithic tempered glass
The

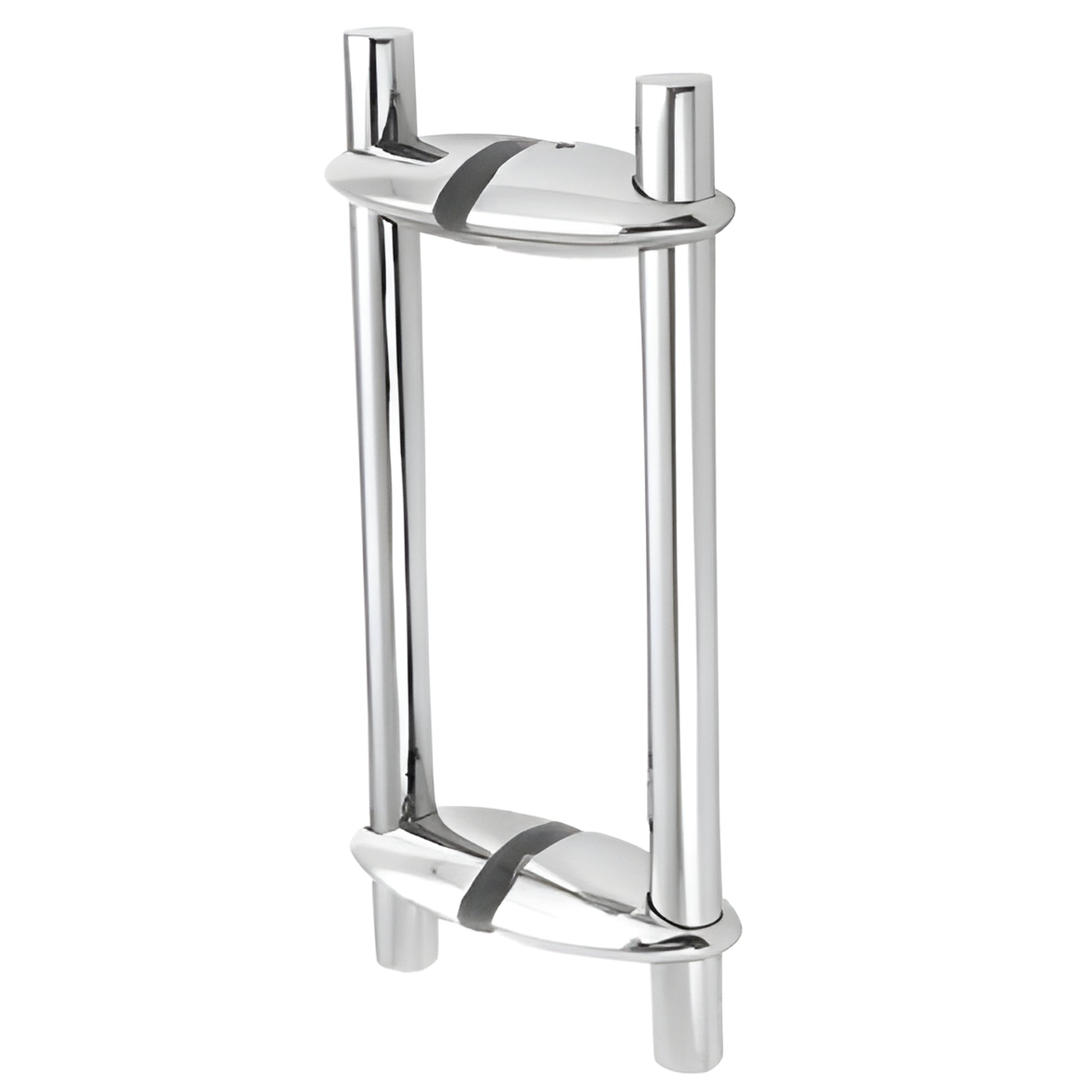

CRL Variant Series Adjustable Mounting Post Style Pulls (SKU: VPS216BS) are heavy-duty, stainless steel glass door pulls with adjustable mounting posts that accommodate common hole patterns (12", 18" and 24" / 305, 457 and 610 mm) and virtually any layout from 6" to 26-3/4" (152 to 679 mm). Ideal for tempered glass doors, these adjustable mounting post glass pulls allow flexible installation and replaceable posts are available separately.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) glass (tempered monolithic recommended)
Construction: 1" (25 mm) diameter stainless steel tubing — corrosion-resistant finish for commercial and architectural glass doors
Glass Fabrication Required:
Two 5/8" (16 mm) diameter holes
VPS x 16: 12" (305 mm) center-to-center
VPS x 22: 18" (457 mm) center-to-center
VPS x 28: 24" (610 mm) center-to-center
NOTE: Listed hole centers are standard mounting locations; actual hole centers may be varied to suit your project.
INCLUDES:
2 — Through-bolts for glass mounting
4 — Adjustable mounting posts (VP1 or VP2 depending on handle style)
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, please request this information from CRL Customer Service before placing your order. Product images are actual or close representations; colors may vary with monitor settings.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for care instructions.
