CRL 241 Rail Connector Block for 200/300/350/400 Series
Item# RCB2241
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Mill
Height
1 in. (25 mm)
Length
241 in. (6121 mm)
Material
Aluminum
Width
1-1/2 in. (38 mm)
- Designed for use when installing the 200, 300, 350 or 400 Series bottom rails
- Three standard lengths available
SKU: RCB2241

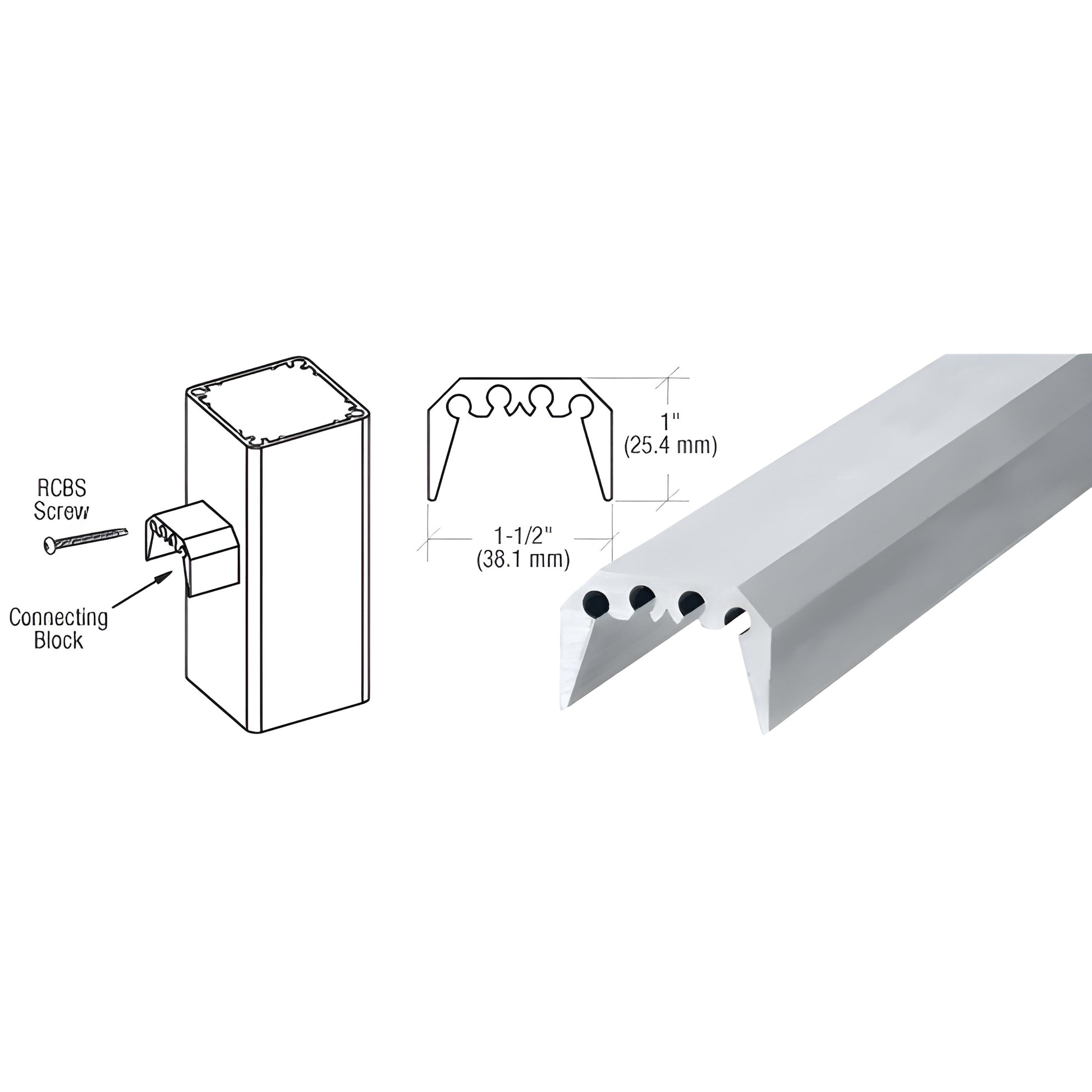

Use CRL Rail Connecting Blocks to securely connect bottom rails to vertical posts. Screw blocks into index grooves on the post using Cat. No. RCBS Rail Connecting Block Screws. Miter-cut the 12" or 241" lengths when building angles and slopes. All connecting blocks are extruded aluminum with a weather-resistant finish—ideal for exterior and commercial railing systems.
Key differentiators: extruded aluminum construction, weather-resistant finish, compatible with 200–400 Series bottom rails, and available in three standard lengths for easy on-site trimming and mitering.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Order SKU RCB2241 now or contact CRL Customer Service for help.
