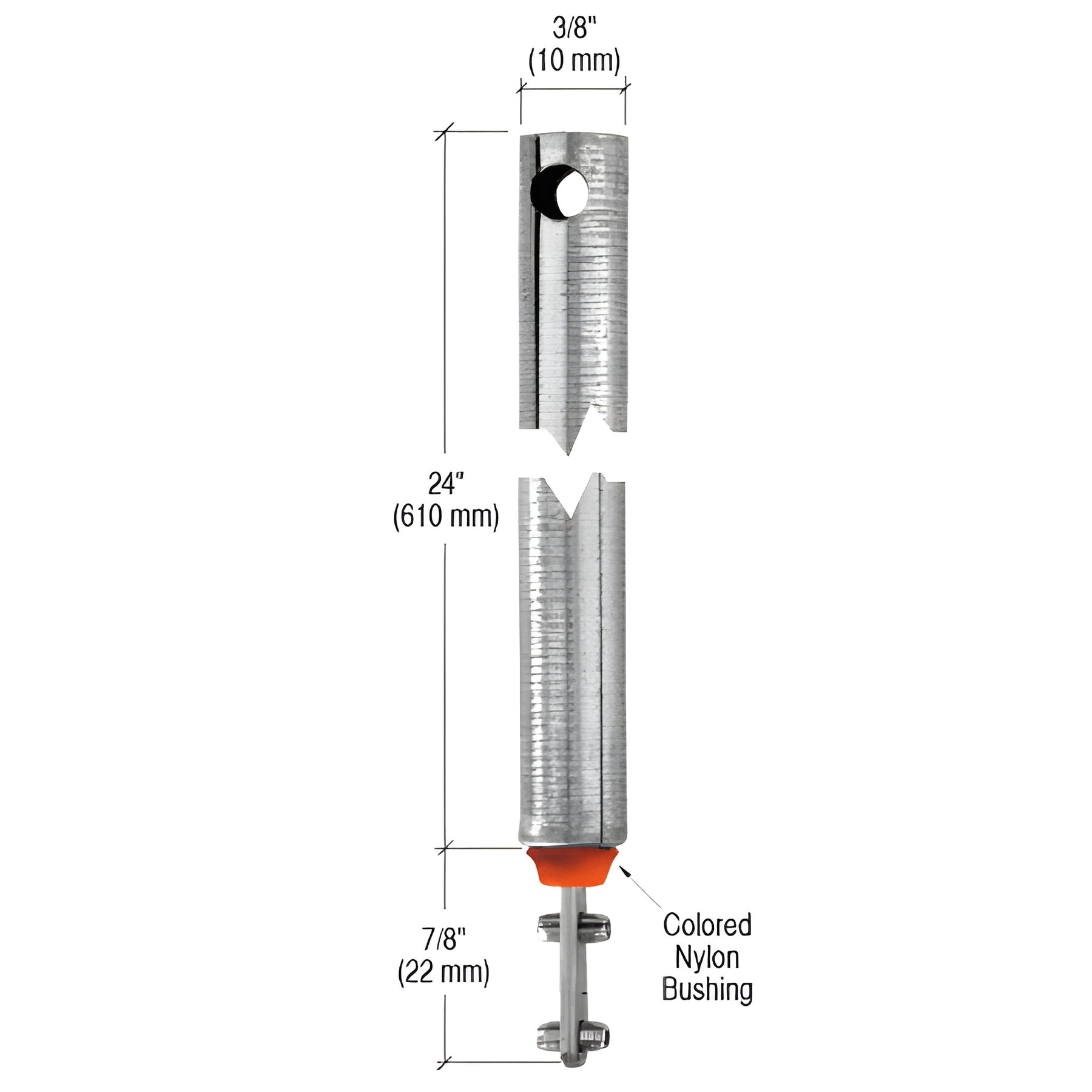

CRL 24 in Spiral Tilt Window Balance Red Bushing Replacement

• Red bushing indicates sash load capacity up to 25 pounds (11.3 kg)
• Tilt window tubular spiral balance with industry standard 3/8" (10 mm) tube diameter
• Direct replacement for metal or plastic tube balances and like-size spiral balances with a white bushing

CRL Tubular Spiral Window Balance (SKU: FL2420) — Designed for tilt-type windows, this 3/8" tubular spiral window balance replaces existing metal or plastic tube balances and supports sash weights up to 25 lb (11.3 kg). The red nylon bushing signals the correct sash load rating and helps you identify the right replacement quickly. Sold individually; for best performance and balance, replace both window balances at the same time.

How to Order Tubular Spiral Window Balances

1. Check the tube diameter of the existing metal or plastic tube balance (3/8" / 10 mm for this SKU).
2. Measure tube length from the end of the balance to the bottom of the colored nylon bushing only—do not include the rod extension.
3. Verify the color of the nylon bushing (red for this 25 lb capacity unit).
4. Confirm the rod extension style and length matches the photo/spec for this part.
5. Match tube diameter, tube length, and bushing color to the catalog information. If all details align, this is the correct replacement balance.

Key differentiators: clear red bushing for 25 lb sash load, industry-standard 3/8" tube diameter, direct replacement for metal or plastic tube balances—ideal for tilt window repair and DIY window balance replacement.

Order FL2420 now to restore smooth tilt-window operation — add to cart or contact customer service for help selecting the correct length.
