CRL 29 in Spiral Tilt Window Balance Replacement Green Bushing

• Red bushing indicates sash load up to 25 pounds (11.3 kg)
• Tilt window tubular spiral balance — industry standard 3/8" tube diameter
• Direct replacement for metal or plastic tube balances

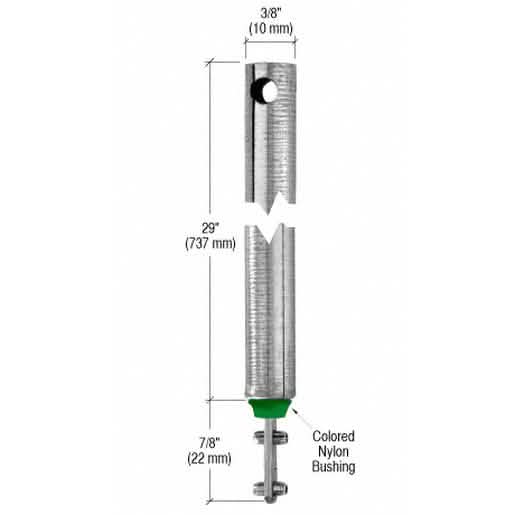

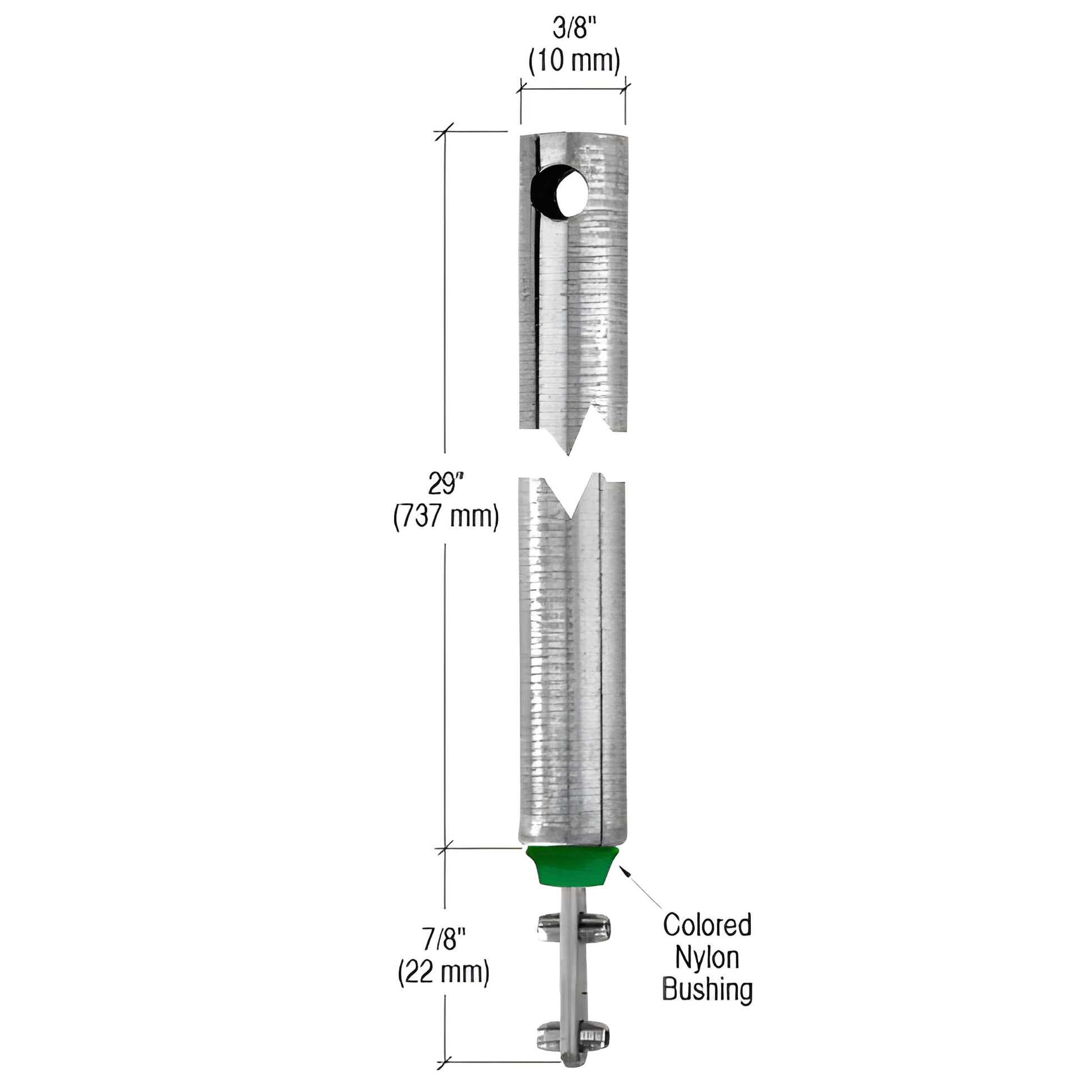

This CRL Tubular Spiral Window Balance (SKU: FL2940) is designed for tilt-type windows and replaces same-size spiral balances that use a white or red bushing. Rated for sash loads up to 25 pounds (11.3 kg), it fits a 3/8" tube diameter and is sold individually. For best performance and balanced operation, we recommend replacing both window balances at the same time.


How to order tubular spiral window balances

• 1. Check the tube diameter of the existing metal or plastic tube on the old balance.
• 2. Measure the tube length from the end of the balance to the bottom of the colored nylon bushing only — do not include the rod extension.
• 3. Note the color of the nylon bushing (red indicates up to 25 lb capacity).
• 4. Verify the rod extension style and length protruding from the nylon bushing matches the photo/spec.
• 5. Match tube diameter, measured tube length, and bushing color to the information shown next to the catalog number to confirm compatibility.

Fast, compatible tubular spiral balances for tilt windows — order replacement FL2940 now to restore smooth sash operation.
