CRL 30 in Spiral Tilt Window Balance Replacement with Red Bushing
CRL 30 in Spiral Tilt Window Balance Replacement with Red Bushing
Regular price
$17.31 CAD
Regular price
Sale price
$17.31 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# FL3020
Shipping Weight: 8.0 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.0 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Bushing Color
Red
Guides Attached
No
Heaviest Vent Weight Range
25
Series
FL Series Balances
Tube Diameter
3/8
Tube Length
30
Window Type
Tilt
Overview

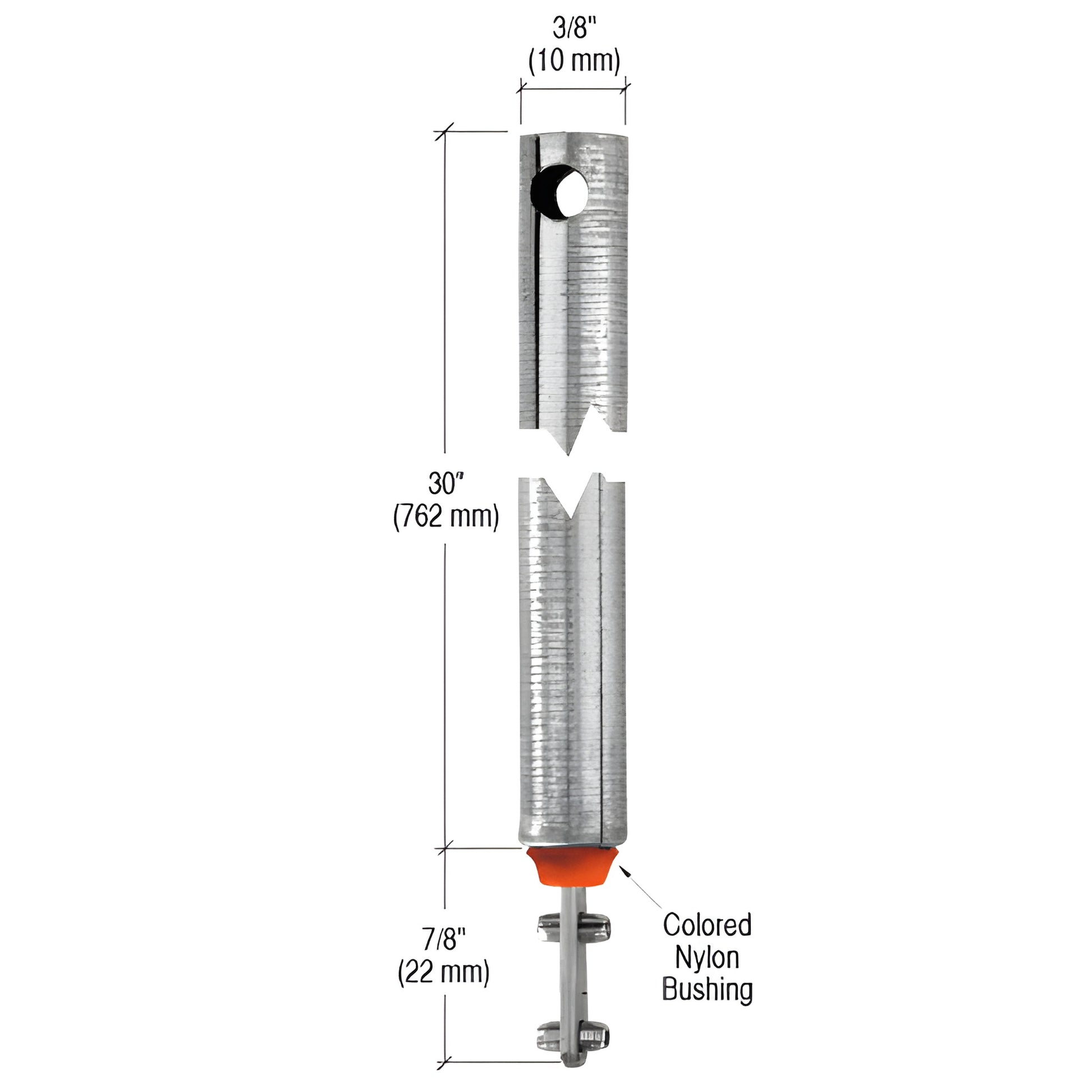

- Red bushing for sash load capacities up to 25 pounds (11.3 kg)
- Tilt window tubular spiral balance with industry-standard 3/8" (10 mm) tube diameter
- Direct replacement for either metal or plastic tube balances
CRL Tubular Spiral Window Balance (SKU: FL3020) — Designed for tilt-type windows, this tubular spiral balance replaces metal or plastic tube balances and fits same-size spiral balances that use a white bushing. Packaged individually; for best performance and balanced operation we recommend replacing both balances in the window at the same time.
How to Order Tubular Spiral Window Balances
- Confirm the tube diameter of the existing metal or plastic tube balance.
- Measure the tube length from the end of the balance to the bottom of the colored nylon bushing only (do not include the rod extension).
- Note the color of the nylon bushing.
- Verify the rod extension protruding from the nylon bushing matches your existing part.
- Match tube diameter, tube length, and bushing color to the specifications shown next to the catalog number. If all details and the rod extension match the product photo, this is the correct balance.
Contact CRL Customer Service for help confirming fit or to place an order.
