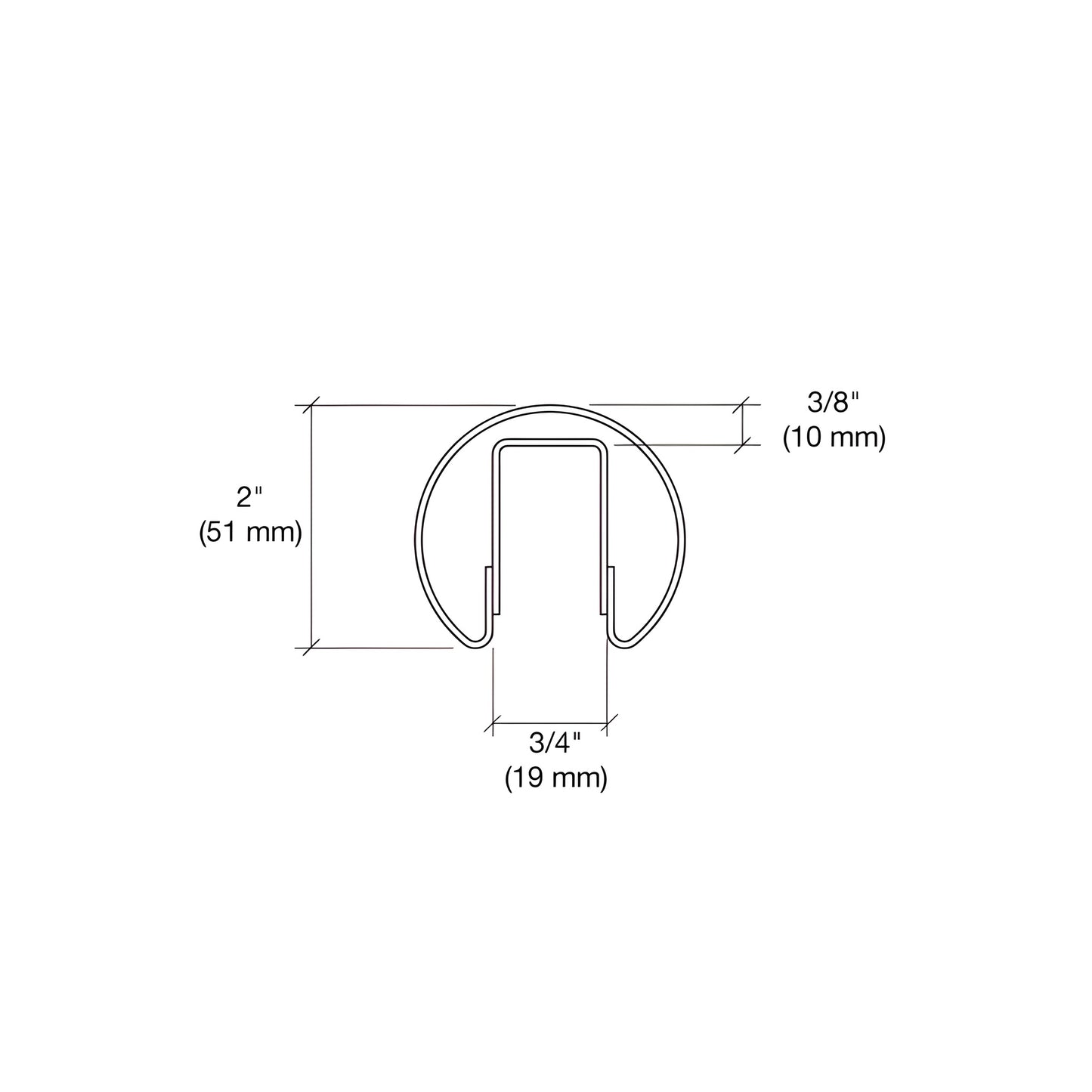

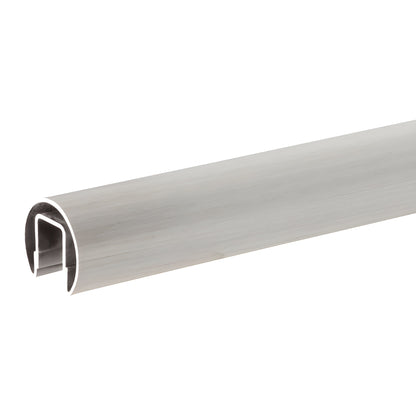

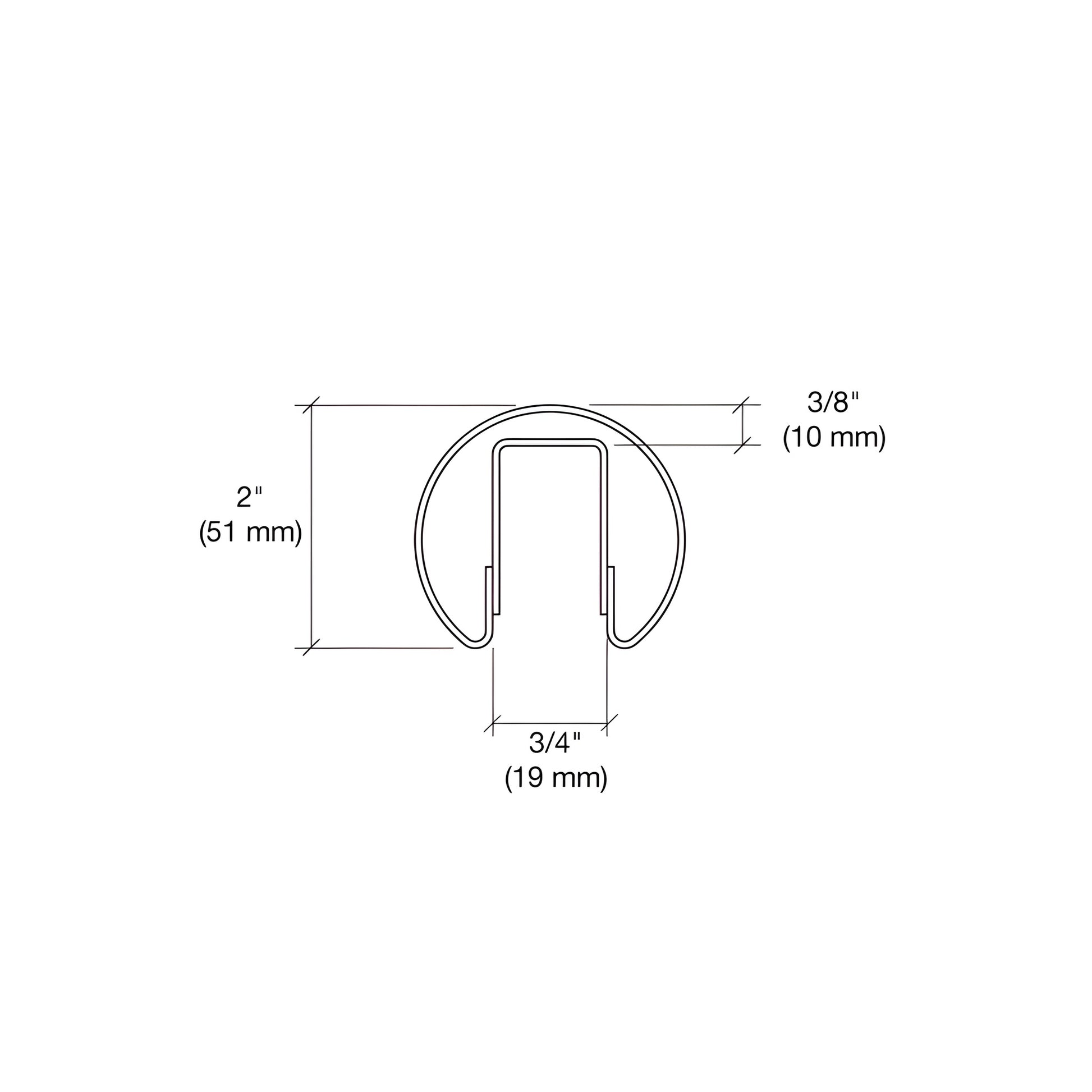

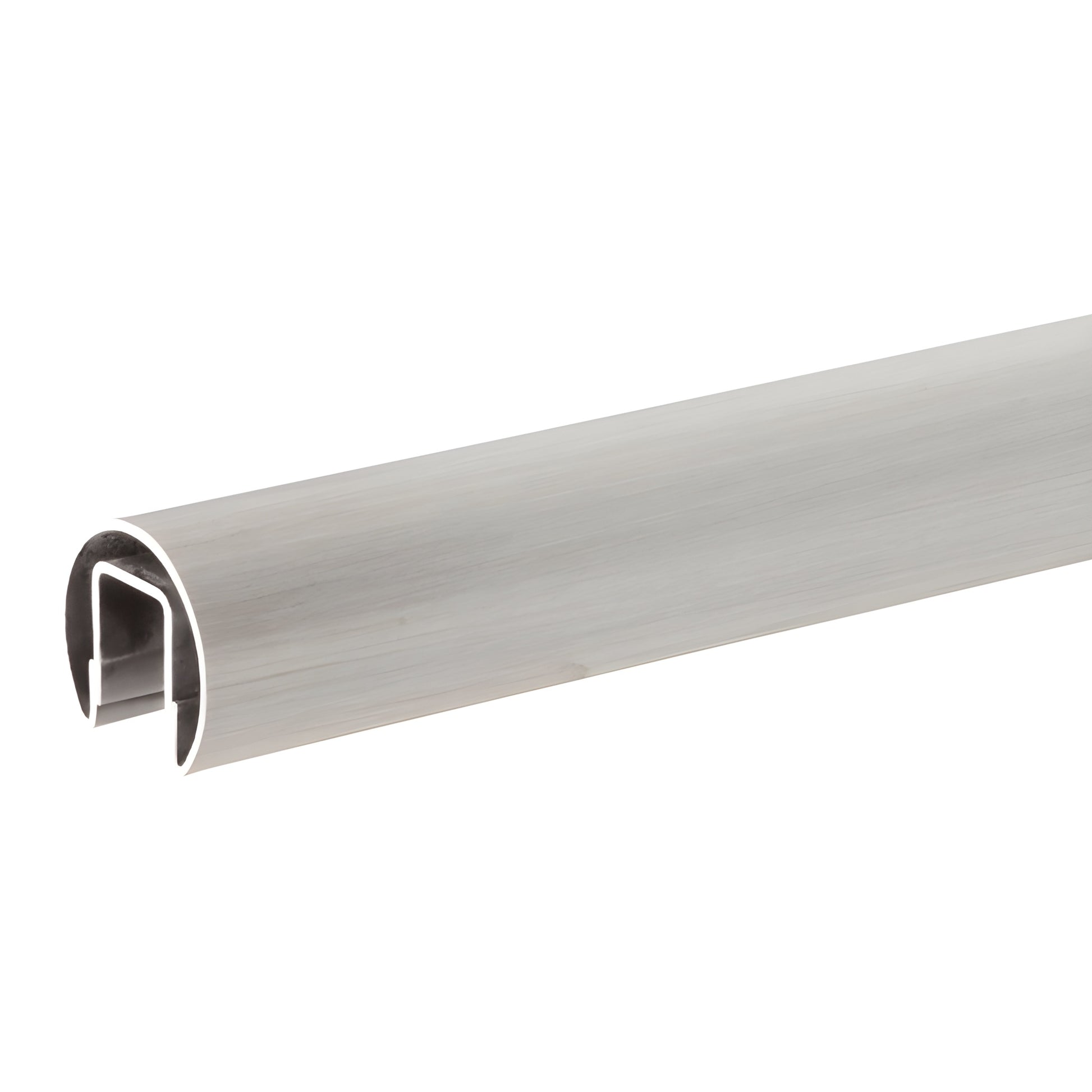

CRL 304 Brushed Stainless 2" Glass Railing Cap for 1/2–5/8" Panels, 168"

• Bump-formed and welded stock lengths: 120" (3.05 m) and 168" (4.27 m)
• Available in seven diameters from 1-1/2" (38.1 mm) to 4" (101.6 mm)
• Four architectural finishes
• Connects to a variety of fabricated corners and end caps
• Cut-to-size or custom fabricated lengths available
• Use connector sleeve Cat. No. GR20CSS

CRL's Premium Cap Rails (SKU: GR20BS14) are manufactured using a proprietary bump-forming process that delivers tighter tolerances, consistent radius, and superior fit into welded corners compared with roll-formed cap rails. Double-sided channel welds add strength and stability, minimizing stress and spring-back for a straight, true profile ideal for architectural glass railing and commercial balustrade projects.

All Premium Cap Rail sections are formed with precision tooling to maintain uniform diameters for smooth hairline transitions at splices, corners, and end caps. The welded internal channel increases rigidity for fabrication. For a secure, permanent bond at all connections use Cat. No. 32629 Metal Contact Cement. Connector sleeves connect cap rails; use Cat. No. GR20CSS where specified. Sold in 120" (3.05 m) lengths; 168" (4.27 m) lengths and custom sizes available.

Glass compatibility & installation notes: When used with 1/2" (12 mm) glass, use Cat. No. GR5PV cap rail vinyl and 95CBL silicone. When used with 5/8" (16 mm) glass, secure with 95CBL silicone and shims. For 3/4" (19 mm) glass, use 95CBL silicone and shims. Contact CRL Technical Sales for application guidance or a quote.

All CRL Premium Cap Rails are stainless alloy 304; stainless alloy 316 is available on special order. For recommended maintenance, see the Stainless Steel Disclaimer in Technical References.

Stainless Steel Advisory:
