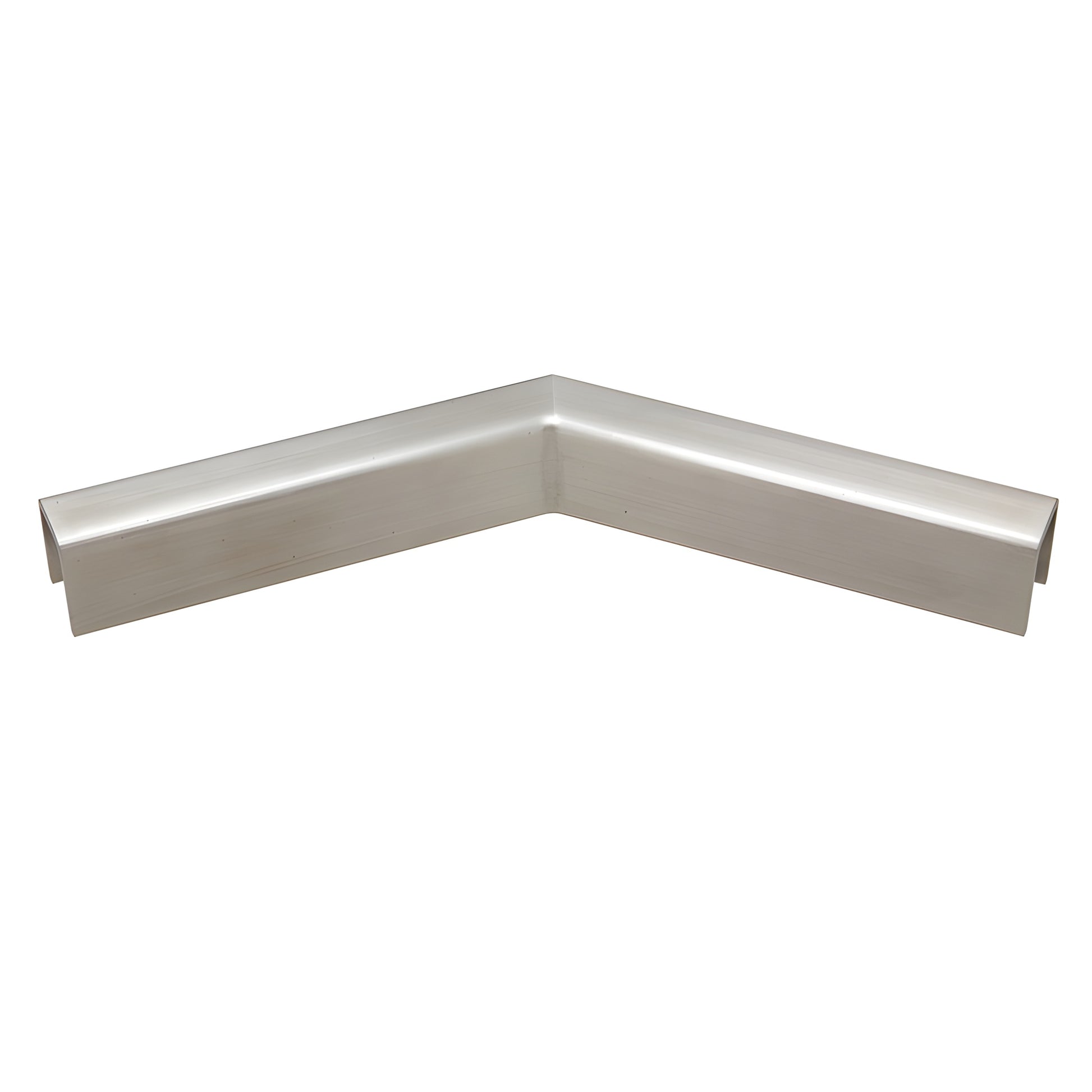

CRL 316 Brushed Stainless 135° 11ga Corner for 1/2in Glass Cap Rail
CRL 316 Brushed Stainless 135° 11ga Corner for 1/2in Glass Cap Rail
Regular price
$181.47 CAD
Regular price
Sale price
$181.47 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# GRL10H3BS
Shipping Weight: 1.35 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.35 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description

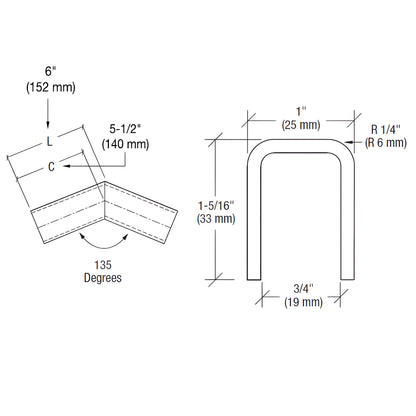

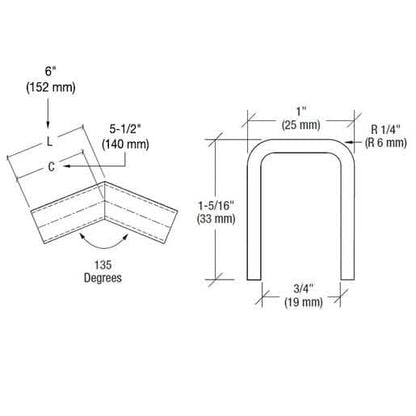

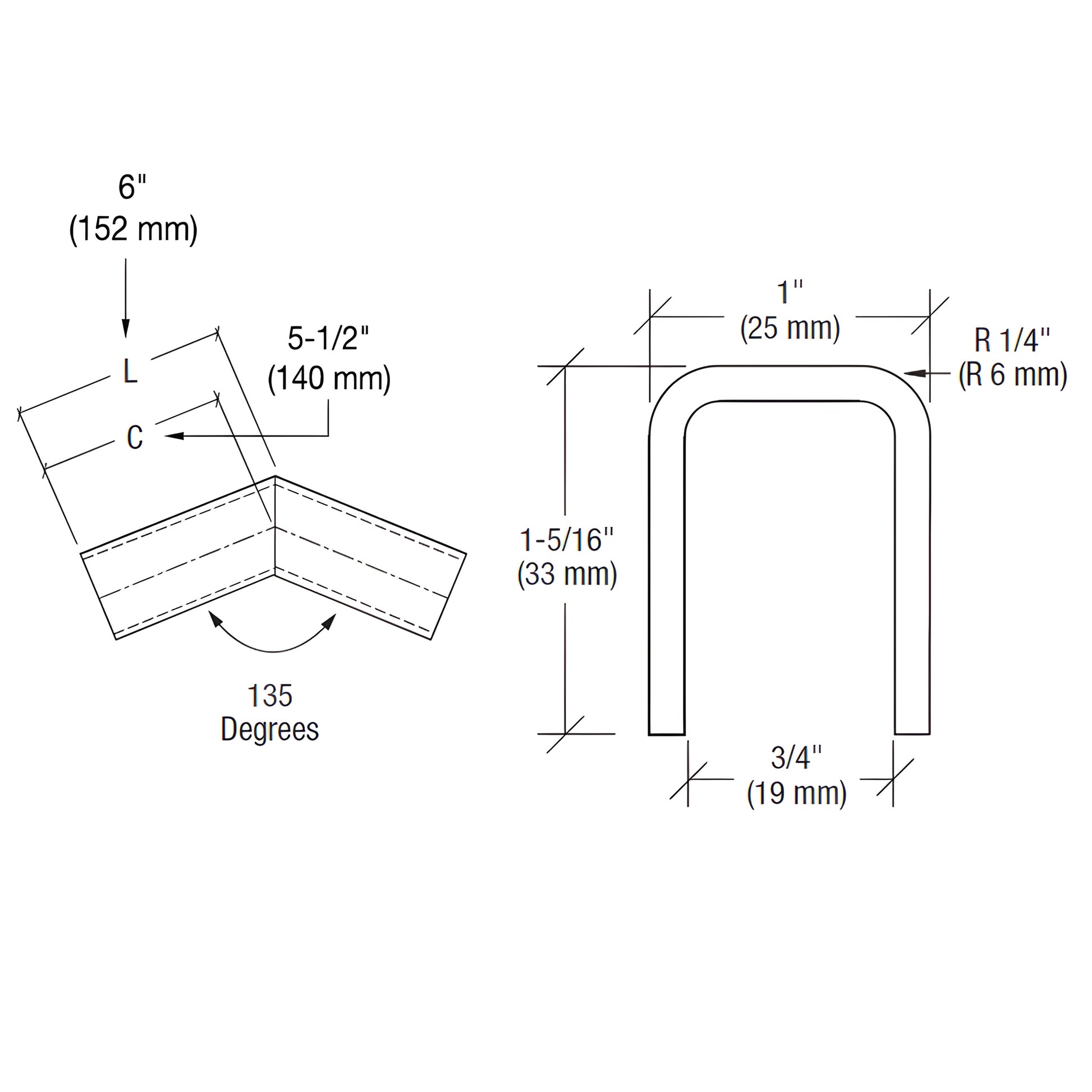

Angle
135
Centerline
5-1/2 in. (139.7 mm)
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. & 5/8 in. (12 mm & 16 mm)
Length
6 in. (152.4 mm)
Material
316 Stainless Steel
Overview
- Two profiles for 1/2" (12 mm) or 5/8" (16 mm) glass
- Two finishes available
- Welded and finished
- Ready-to-install
CRL Slip-Fit 135 Degree Horizontal Corners (SKU: GRL10H3BS) provide precision slip-fit 135° horizontal corners for glass railing and balustrade systems using 1/2" (12 mm) or 5/8" (16 mm) thick glass. Designed for hairline joint assemblies with straight lengths of CRL 11 Gauge Cap Railing, these corners allow a clean, continuous cap rail appearance for commercial and residential glass railing installations. Use Cat. No. 32629 Metal Contact Cement for a secure permanent bond. Two connector sleeves are required per corner. Standard stainless alloy: 316.
Glass securing notes: When used with 1/2" (12 mm) glass, use GR5PV cap rail vinyl and 95CBL silicone to secure the glass. When using 5/8" (16 mm) glass, use 95CBL silicone and shims only to secure the glass.
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For details, see the Stainless Steel Disclaimer in the Technical References section.
Order the GRL10H3BS slip-fit 135° horizontal corner for a clean, durable glass railing finish — contact CRL or add to cart to get started.
