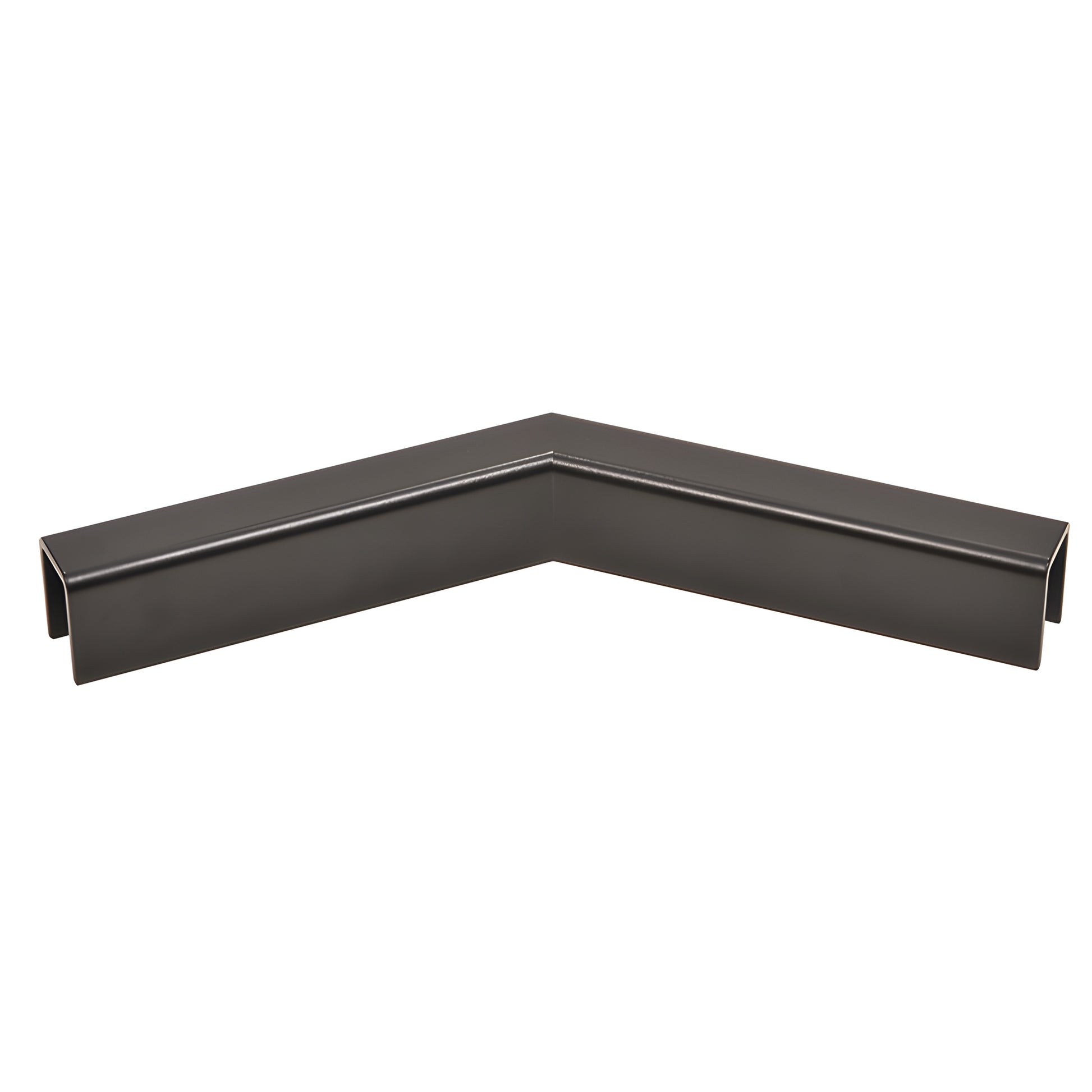

• Matte black stainless steel 135 cap rail corner for 1/2" or 5/8" glass, SKU GRL10H3MBL
  • Matte black stainless steel 135 cap rail corner for 1/2" or 5/8" glass, SKU GRL10H3MBL
1 2

CRL

CRL 135° Matte Black 11-Gauge Cap Rail Corner for 1/2 in Glass

CRL 135° Matte Black 11-Gauge Cap Rail Corner for 1/2 in Glass

$127.94 CAD
$127.94 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# GRL10H3MBL
Shipping Weight: 1.35 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

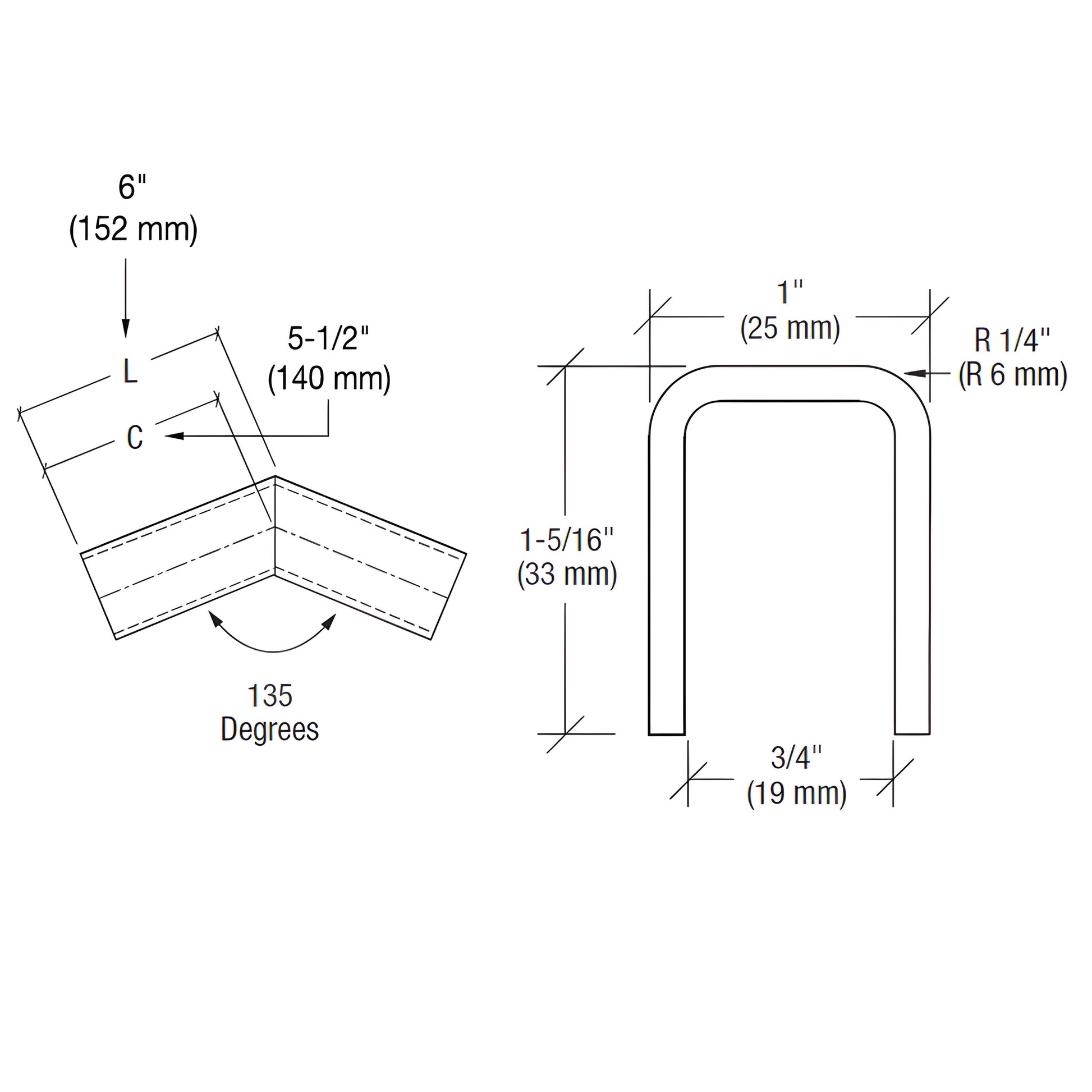

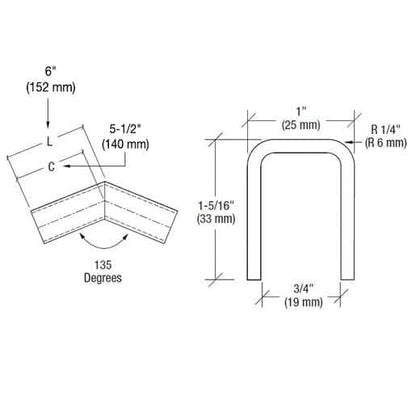

Product Information

Description

Angle
135
Centerline
5-1/2 in. (139.7 mm)
Finish/Color
Matte Black
Glazing Thickness
1/2 in. & 5/8 in. (12 mm & 16 mm)
Length
6 in. (152.4 mm)
Material
Stainless Steel

Overview

  • Two profiles for 1/2" (12 mm) or 5/8" (16 mm) glass
  • Three finishes available
  • Welded and finished
  • Ready-to-install

CRL Slip-Fit 135 Degree Horizontal Corners (SKU: GRL10H3MBL) are engineered for hairline joint assemblies with straight lengths of CRL 11 Gauge Cap Railing. Designed for 1/2" (12 mm) or 5/8" (16 mm) thick glass, these cap railing corners provide a clean, low-profile connection for glass railing systems and balustrades. Use Cat. No. 32629 Metal Contact Cement for a secure, permanent bond. Two connector sleeves are required per corner for proper installation.

Installation notes and glass fastening: When using 1/2" (12 mm) glass, secure with GR5PV Cap Rail Vinyl plus 95CBL Silicone. For 5/8" (16 mm) glass, secure with 95CBL Silicone and shims only. These connectors are ideal for commercial and residential glass railing projects that require precise alignment and minimal visible hardware.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on monitor settings.


Key differentiators: two-profile fit for 1/2" or 5/8" glass, welded finished construction, three finish options, and ready-to-install design for fast glass railing assembly.

Order SKU GRL10H3MBL today to complete your glass cap railing project—contact CRL Customer Service for specifications or bulk pricing.
