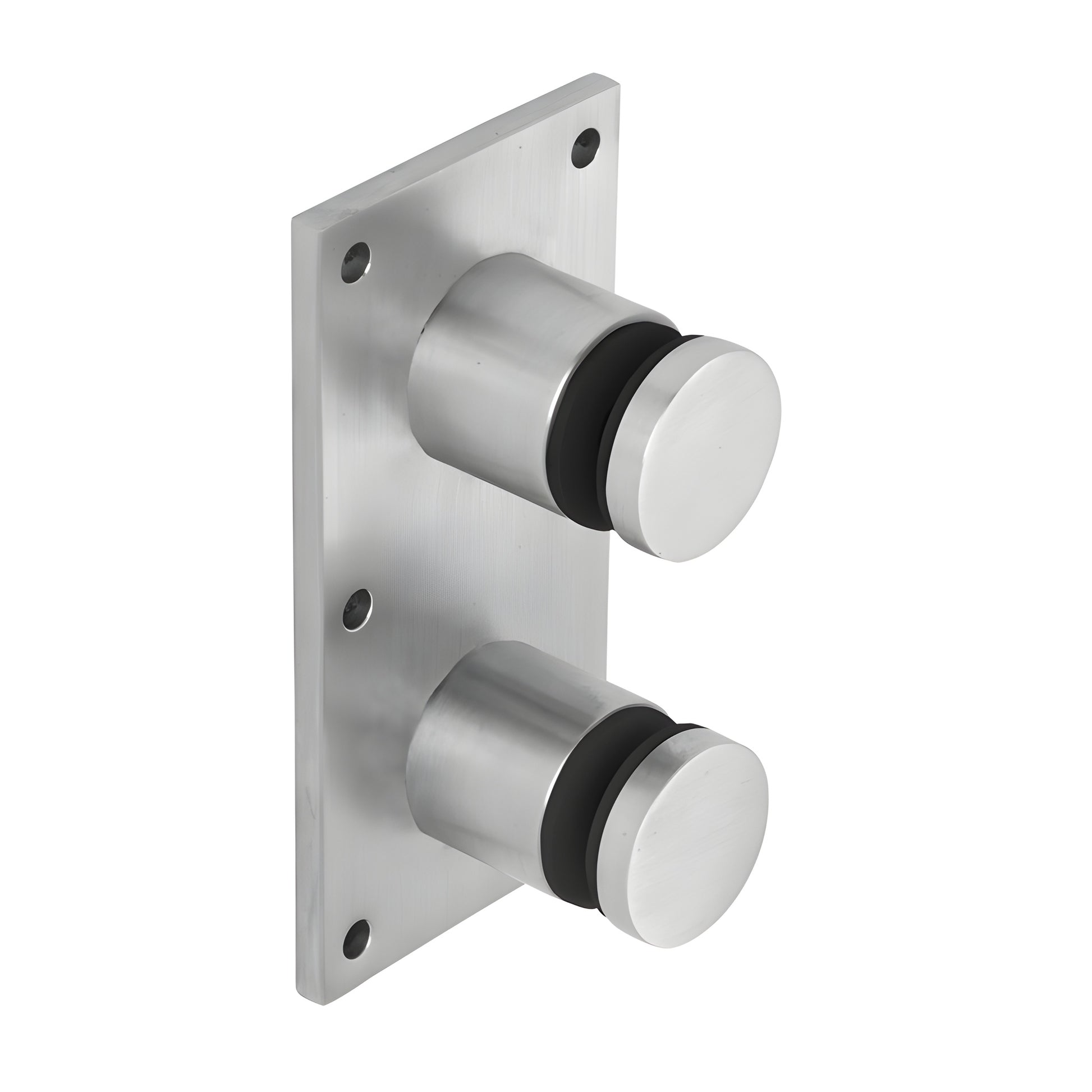

CRL 316 Brushed Stainless 2" Glass Rail Standoff with Mounting Plate
CRL 316 Brushed Stainless 2" Glass Rail Standoff with Mounting Plate
Regular price
$509.41 CAD
Regular price
Sale price
$509.41 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# RS0B20BS
Shipping Weight: 3.8 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 3.8 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Plate Height
8 in. (203 mm)
Base Plate Length
4 in. (102 mm)
Base Plate Thickness
3/8 in. (10 mm)
Finish/Color
Brushed Stainless Steel
Material
316 Stainless Steel
Overview
- High-grade 316 stainless steel alloy
- For laminated glass 11/16" & 27/32" (17.52 mm & 21.52 mm) using Kuraray SentryGlas® interlayer
- Designed to mount to wood, concrete, or steel substrates
- Custom finishes available
- Weight: 7.45 lbs (3.38 kg)
- SKU: RS0B20BS

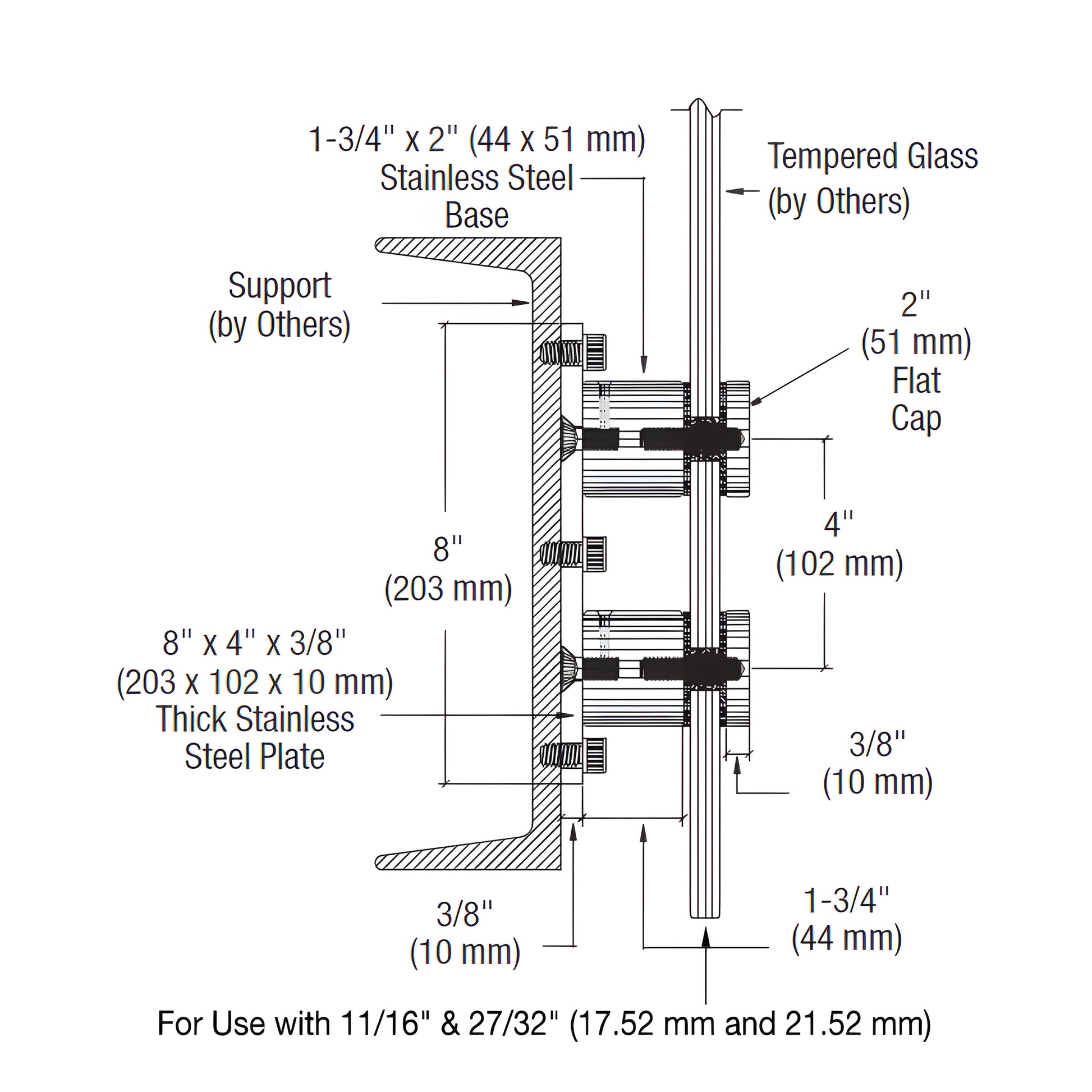

CRL Glass Rail Standoff Fittings — 316 stainless steel standoffs engineered for laminated glass up to 27/32" (21.52 mm). Each assembly uses 2" (51 mm) diameter caps on threaded bolts to secure glass and fastens to a 3/8" (10 mm) pre-drilled stainless steel mounting plate. Two popular stainless finishes are available from stock. Ideal for glass railing, balustrade, and architectural partition applications where corrosion resistance and clean aesthetics are required.
SPECIFICATIONS:
11/16" & 27/32" (17.52 & 21.52 mm) tempered laminated glass only (do not use with raw or annealed glass).
Glass fabrication: Two 3/4" (19 mm) diameter holes per fitting.
Standoff diameter: 2" (51 mm).
Mounting plate thickness: 3/8" (10 mm), pre-drilled.
Hole spacing between standoffs: 4" (102 mm). Maximum spacing and panel widths vary by use and mounting conditions.
Product Warning:
For use only with 11/16" & 27/32" (17.52 mm – 21.52 mm) tempered laminated glass with appropriate interlayer. Do not use with raw or annealed glass. Verify bracket spacing and maximum panel widths for your installation and substrate before ordering.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not stain- or rust-proof. Periodic maintenance is recommended to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for more information.
Need help selecting the right glass rail standoff? Contact CRL or order SKU RS0B20BS today.
