- High Grade 316 Stainless Steel Alloy Standard
- For Use with 11/16" & 27/32" (17.52mm and 21.52 mm) Laminated Glass Using Kuraray SentryGlas® Interlayer
- Designed to Mount to Wood, Concrete or Steel
- Custom Finishes Available
- Weight: 7.45 lbs (3.38 kg)

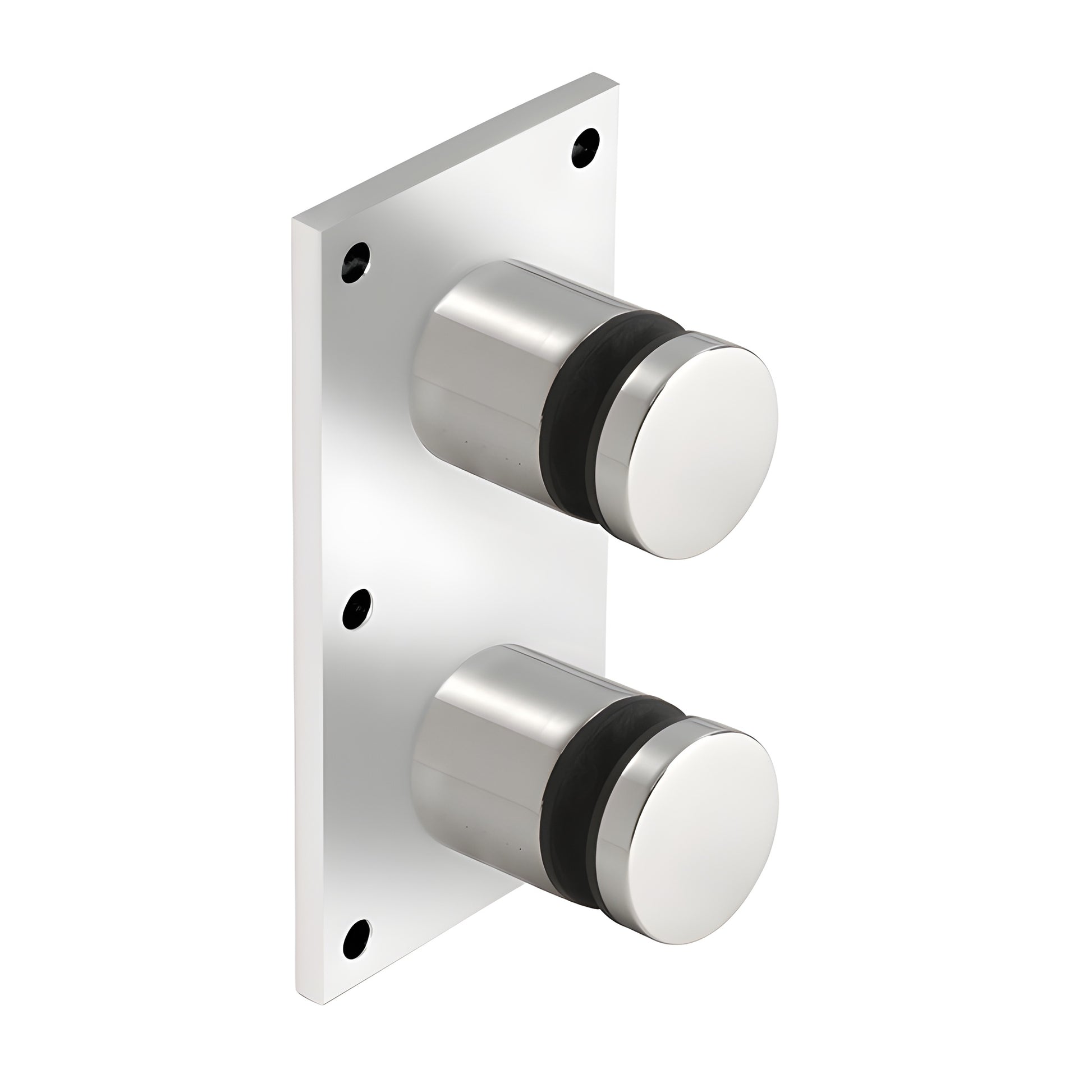

Our
CRL Glass Rail Standoff Fittings

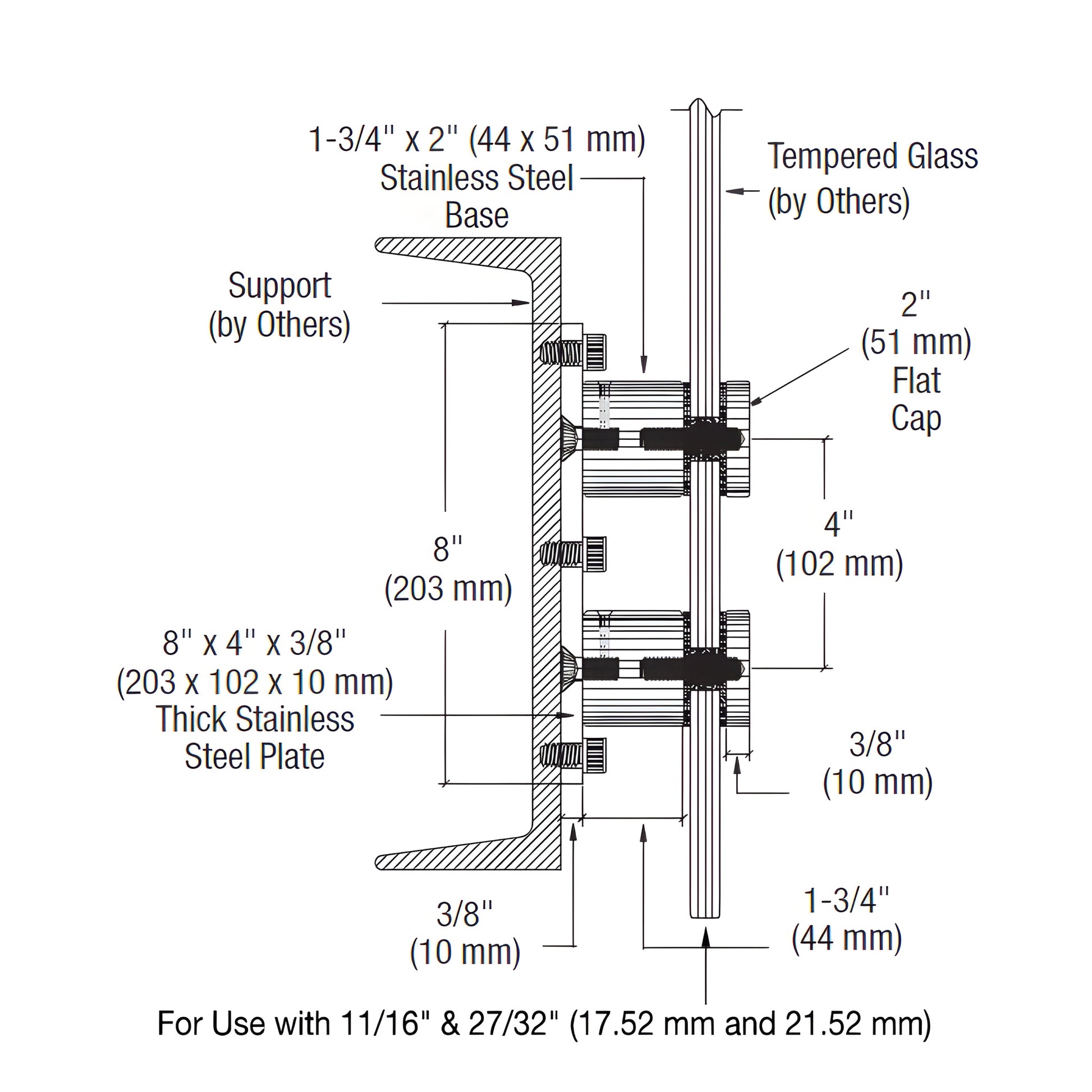

can be used to mount glass up to 27/32" (21.52 mm) thick. This Alloy 316 stainless steel assembly can be mounted to a wood, concrete, or steel substrate, and features 2" (51 mm) diameter caps on threaded bolts to secure the glass. The 2" (51 mm) diameter Standoffs are fastened to a 3/8" (10 mm) thick stainless steel plate that is pre-drilled for mounting. Two popular stainless finishes are available from stock.
SPECIFICATIONS
For use with 11/16" & 27/32" (17.52 & 21.52 mm) Tempered Laminated Glass (Do Not Use with Raw or Annealed Glass) Glass Fabrication: Two 3/4" (19 mm) Diameter Holes Per Fitting Spacing: Maximum spacing between fittings depends on use and mounting conditions; Hole spacing between Standoffs is 4" (102 mm).
Product Warning
For use with 11/16" & 27/32" (17.52 mm – 21.52 mm) tempered laminated glass. Do not use with raw or annealed glass)
NOTE: Bracket spacing and maximum glass panel widths vary depending on use and mounting conditions.
Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
