- Bump-Formed and Welded 118-1/8" (3 m) Stock Lengths are Available in Two Diameters and Four Architectural Finishes
- Connect to Fabricated Corners and End Caps
- Use with Sleeve Number L20CSS
- Cut to Size or Custom Fabricated Lengths
- For Stainless, Alloy 316 is Standard
All

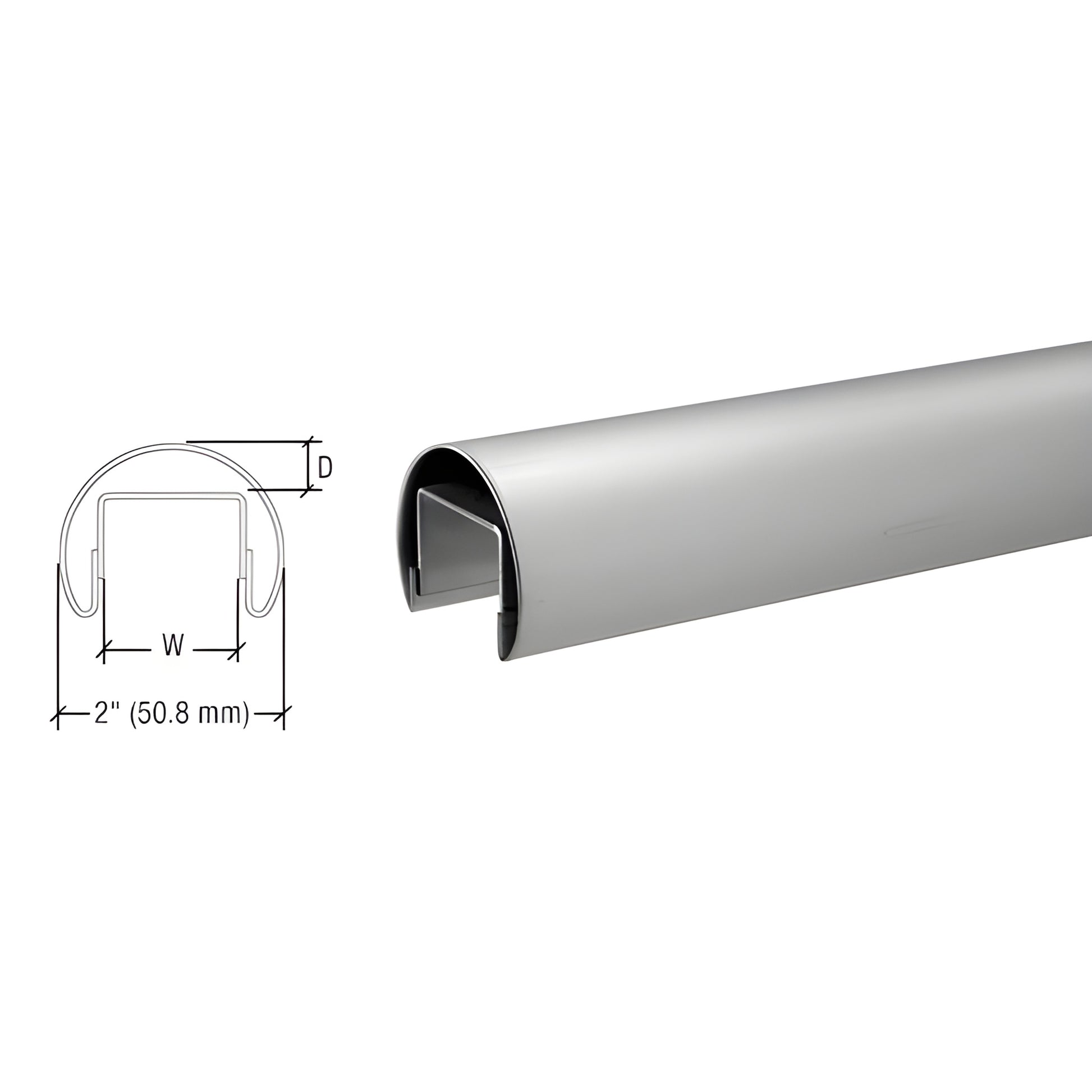

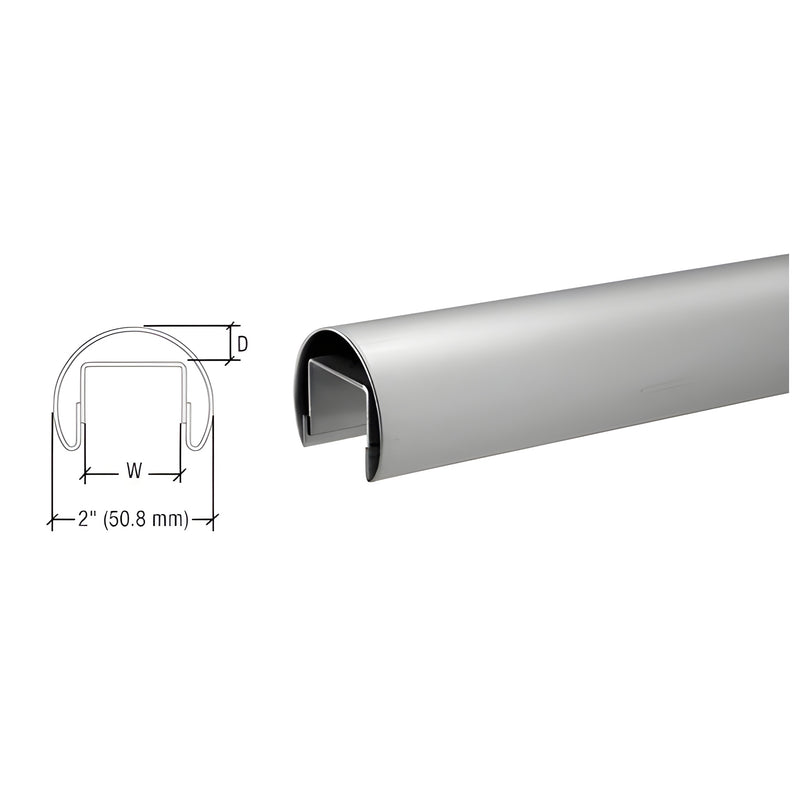

CRL Premium Cap Rails
for Laminated Glass are formed using precision tooling to maintain uniform profiles, allowing for smooth hairline transitions at splices, corners, and end caps. Both Cap Rails support 27/32" (21.52 mm) and 1-1/16" (25.52 mm) laminated glass thicknesses by using CRL different rubber protective inserts. Sold in 3 meters lengths.
Use the
Connector Sleeves
to connect Cap Rails. All CRL Premium Cap Railings are stainless alloy 304. Stainless alloy 316 is available on special order.
Please contact
CRL Technical Sales
for more information or for a quote.
NOTE
When using 21.52 mm laminated glass, we recommend using
LR21PV Series Rubber Insert
, for 25.52 mm laminated glass, use
LR22PV Series Rubber Insert
with shim and silicone.
Dimension is used to calculate the glass size. Add the clearance you desire or add an additional 1/8" (3.2 mm) if using Cap Rail Rubber Insert.
Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
