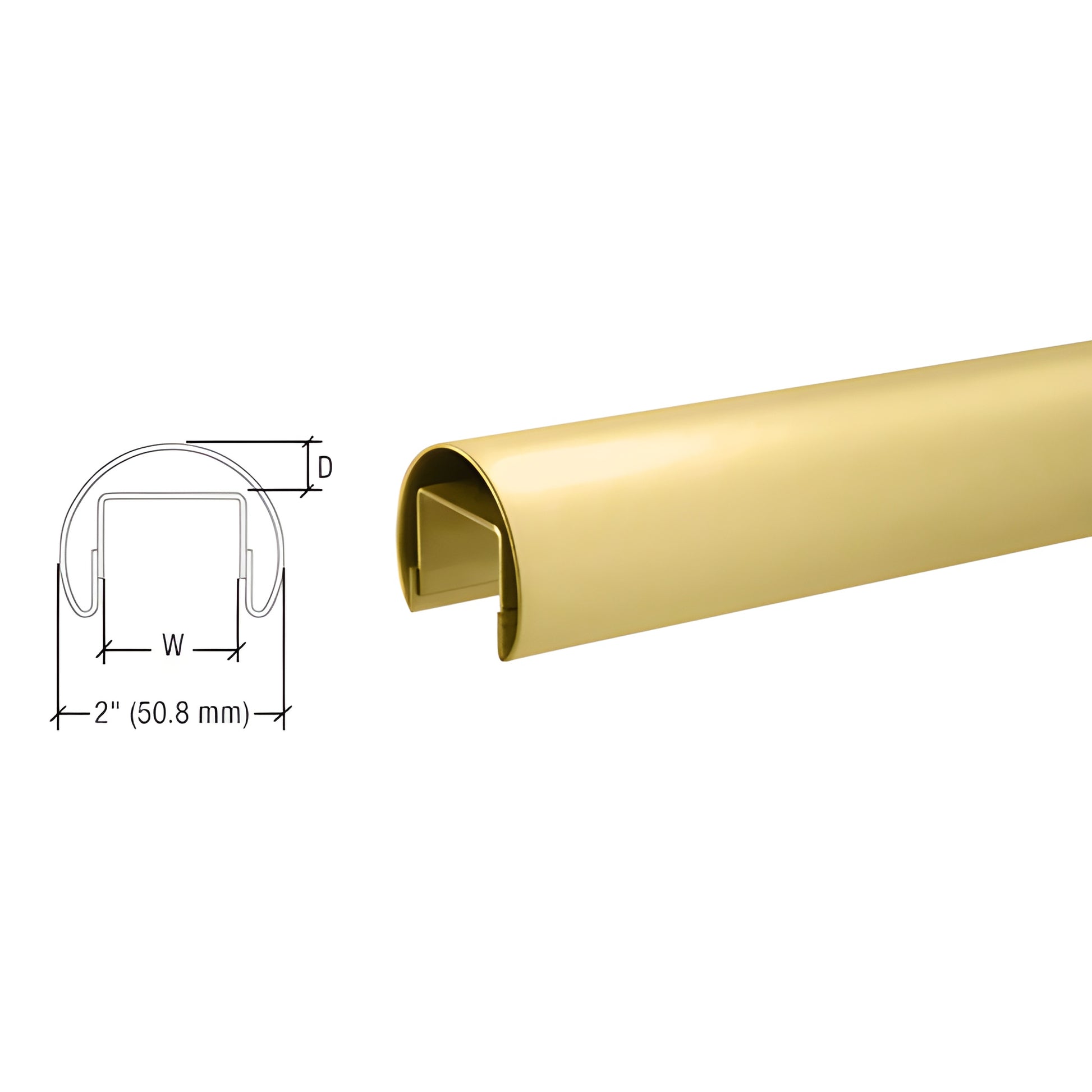

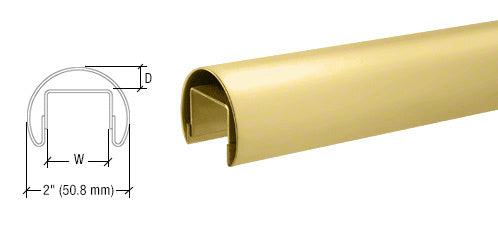

CRL Satin Brass 50.8mm Cap Rail for 21.52/25.52mm Glass - 3m
CRL Satin Brass 50.8mm Cap Rail for 21.52/25.52mm Glass - 3m
Regular price
$1,836.78 CAD
Regular price
Sale price
$1,836.78 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# LR20SB
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Satin Brass
Glazing Thickness
27/32 in. & 1-1/16 in. (21 mm & 27 mm)
Length
118-1/8 in. (3000 mm)
Material
Brass
Overview
- Bump-formed and welded 118-1/8" (3 m) stock lengths available in two diameters and four architectural finishes
- Connects to fabricated corners and end caps (use with sleeve L20CSB)
- Cut-to-size or custom fabricated lengths available
- Standard stainless alloy 316 available on special order
All CRL Premium Cap Rails for laminated glass are precision-formed to maintain uniform profiles and smooth hairline transitions at splices, corners, and end caps. These architectural cap rails support 27/32" (21.52 mm) and 1-1/16" (25.52 mm) laminated glass using CRL rubber protective inserts. Sold in 3 m (118-1/8") lengths. Ideal for commercial storefronts, interior glass partitions, and glass railing systems requiring a finished stainless cap rail for laminated glass.
Use the Connector Sleeves to join cap rails. Standard material is stainless alloy 304; stainless alloy 316 is available by special order for enhanced corrosion resistance. For protective inserts, when using 21.52 mm laminated glass, use the LR21PV Series Rubber Insert; for 25.52 mm laminated glass, use the LR22PV Series Rubber Insert with shim and silicone.
Dimension is used to calculate glass size—add desired clearance or add an additional 1/8" (3.2 mm) if using the cap rail rubber insert.
Please contact CRL Technical Sales for quotes, stainless 316 availability, or custom fabrication options. SKU: LR20SB.
Brass Finish Advisory:
Brass finishes are durable but prone to oxidation and may develop a tarnished appearance over time. For more details, see the Brass Finish Disclaimer in the Technical References section.
