CRL 316 Brushed Stainless Steel P1 180° Center-Post Railing Kit
CRL 316 Brushed Stainless Steel P1 180° Center-Post Railing Kit
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# P136CBSC
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Angle
180
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. To 1 in. (12 mm To 25 mm)
Height
36 in. (914 mm)
Material
316 Stainless Steel
Overview
- Compatible with 1/2" (12 mm) to 1" (25 mm) thick panels
- Glass attachment fittings sold separately (required)
- Meets or exceeds guardrail and handrail code standards
- Top saddle supports 1-1/4" (31.8 mm) or 1-1/2" (38.1 mm) diameter Schedule 40 handrail tubing
- Standard post heights: 36" (914 mm) and 42" (1.07 m); custom heights available
- Two standard stainless finishes; custom powder coat finishes available

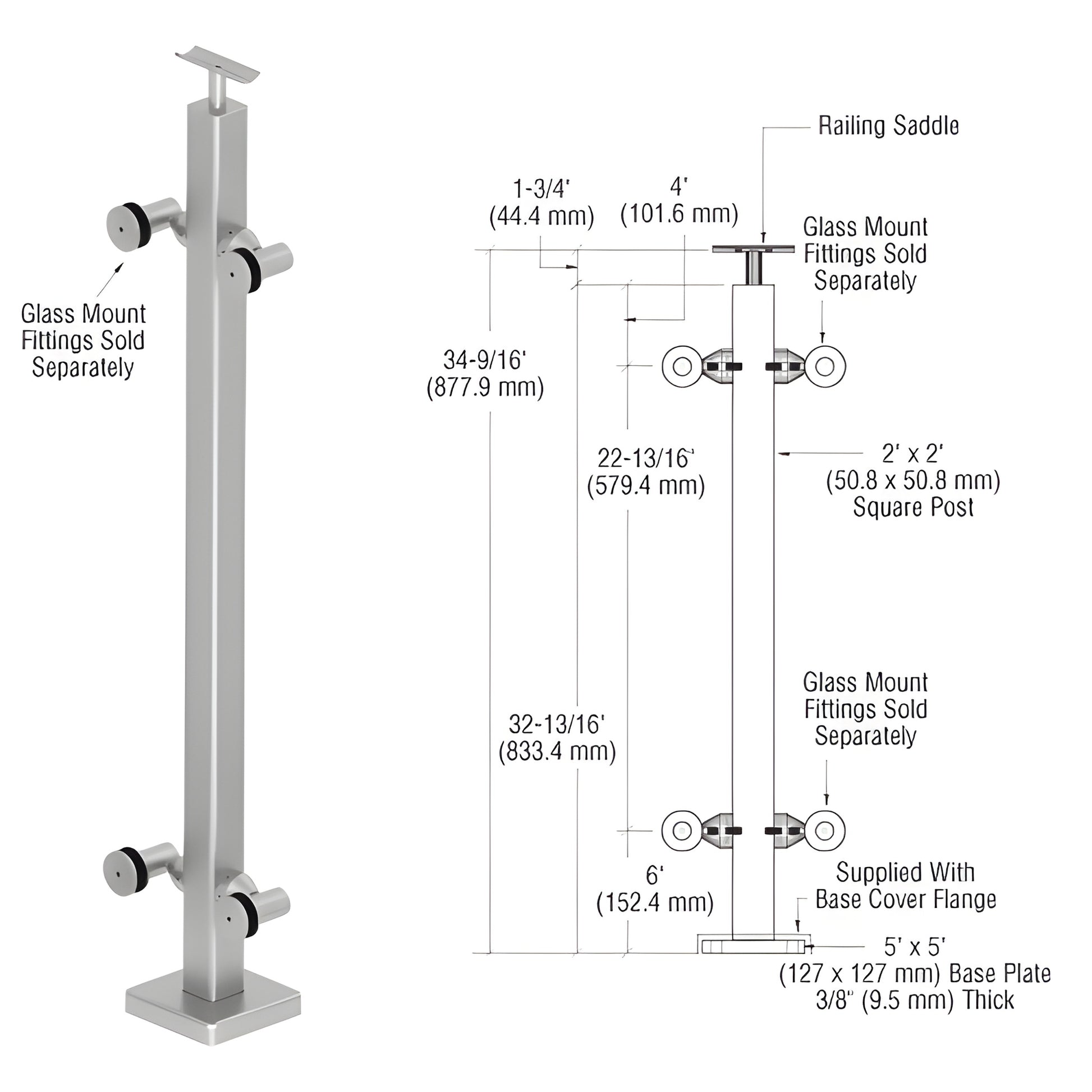

CRL P1 Post Railing Kits (SKU: P136CBSC) are engineered for commercial and residential applications, offering a surface-mounted stainless steel railing solution that meets or exceeds local guardrail and handrail code standards. These P1 kits are constructed from 2" (51 mm) square 316 alloy stainless steel tubing with a 3/16" (4.8 mm) wall thickness for superior corrosion resistance and structural strength. Each kit includes a 5" x 5" (127 x 127 mm) base plate, base cover flange, and welded top saddle for quick installation. For top rail attachment screws specify Cat. No. PRS1032 — 10-32 x 5/8" stainless steel, 50 per pack.
Product Warning:
All P-Series post kits are sold without glass attachment fittings; glass fittings must be purchased separately.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Choose CRL P1 surface-mounted stainless steel post railing kits for durable, code-compliant glass railing installations — contact us today to request a quote or custom height/finish options.
