CRL 316 Stainless Steel Brushed P1 90° Corner Post Railing Kit
CRL 316 Stainless Steel Brushed P1 90° Corner Post Railing Kit
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# P142LBSC
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Angle
90
Base Plate Length
5 in. (127 mm)
Base Plate Thickness
3/8 in. (10 mm)
Base Plate Width
5 in. (127 mm)
Finish/Color
Brushed Stainless Steel
Height
42 in. (1067 mm)
Material
316 Stainless Steel
Overview
- For use with 1/2" (12 mm) to 1" (25 mm) thick panels
- Glass attachment fittings sold separately
- Meets or exceeds guard rail and hand rail code standards
- Top saddle supports 1-1/4" (31.8 mm) or 1-1/2" (38.1 mm) diameter Schedule 40 hand rail tubing
- Standard post heights: 36" (914 mm) and 42" (1.07 m); custom heights available
- Two standard stainless finishes; custom powder coat finishes also available

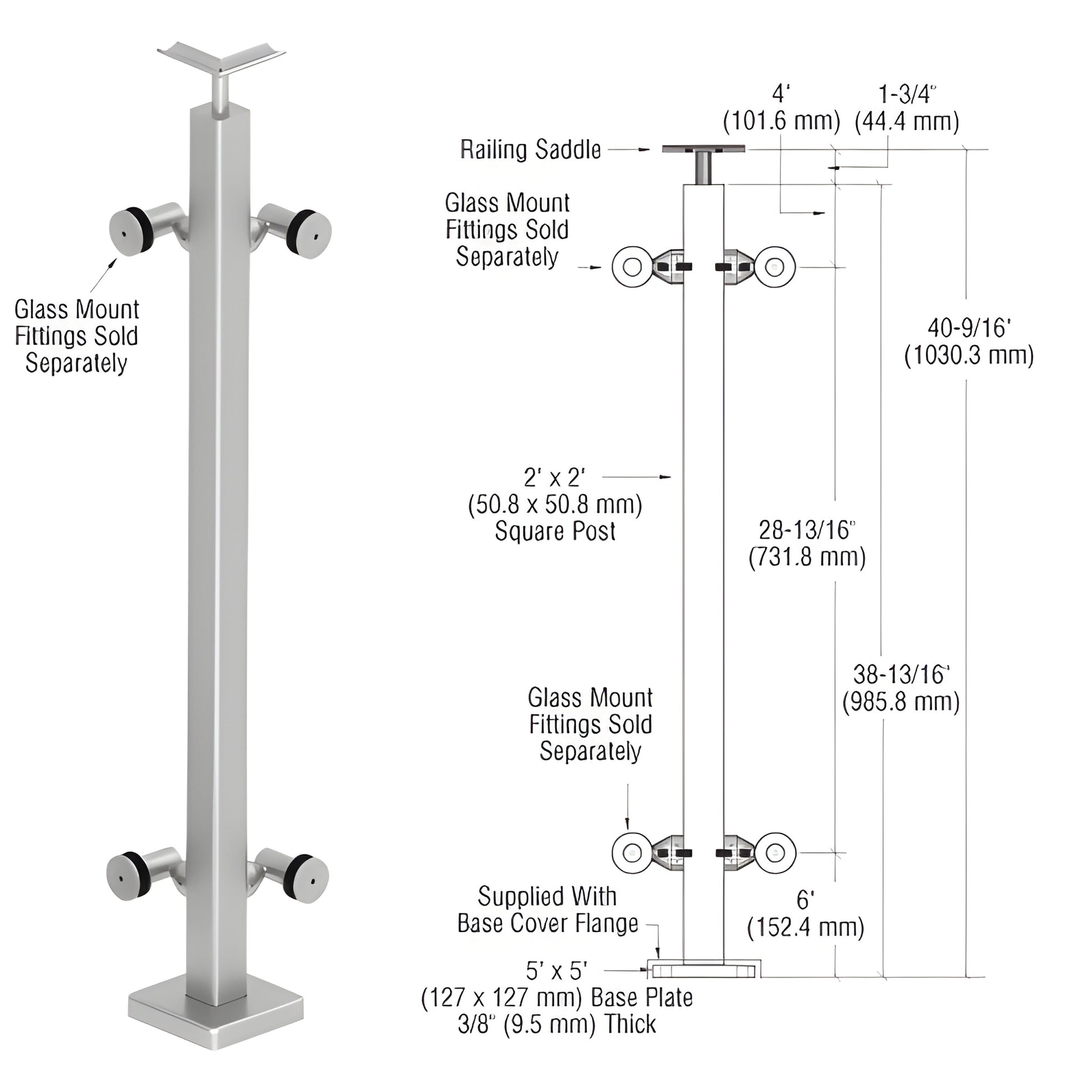

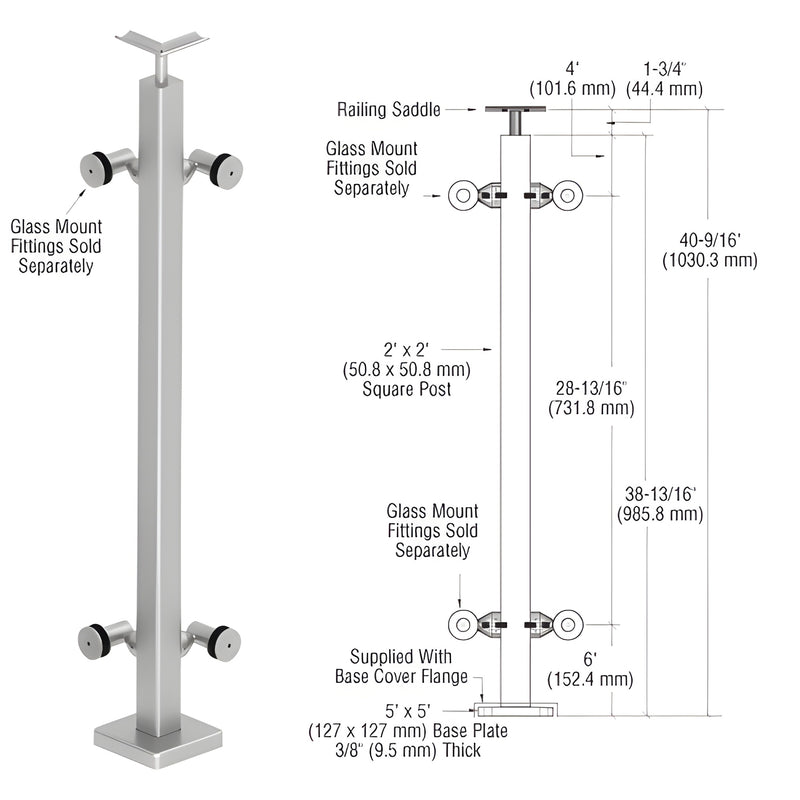

CRL P1 Post Railing Kits (SKU: P142LBSC) are surface-mounted post railing kits designed for commercial and residential guard rail installations that meet or exceed applicable code standards. Constructed from 2" (51 mm) square 316 alloy stainless steel tubing with 3/16" (4.8 mm) wall thickness, each kit includes a 5" x 5" (127 x 127 mm) base plate, base flange cover, and welded top saddle. For fastening the top rail to the saddle, specify Cat. No. PRS1032 — 10-32" x 5/8" stainless steel screws, sold 50 per pack.
Product Warning:
All P-Series post kits are sold without glass attachment fittings; glass fittings must be purchased separately.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not entirely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for details.
Shop P1 surface-mounted post railing kits in 316 stainless steel for durable commercial guard rail systems — contact CRL or your distributor to request a quote or custom heights and finishes.
