CRL 316 Brushed Stainless Steel P1 End Post Railing Kit - Custom
CRL 316 Brushed Stainless Steel P1 End Post Railing Kit - Custom
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# P142EBSC
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Plate Length
5 in. (127 mm)
Base Plate Thickness
3/8 in. (10 mm)
Base Plate Width
5 in. (127 mm)
Finish/Color
Brushed Stainless Steel
Height
42 in. (1067 mm)
Material
316 Stainless Steel
Overview
- For use with 1/2" (12 mm) to 1" (25 mm) thick panels
- Glass attachment fittings sold separately
- Meets or exceeds guard rail and hand rail code standards
- Top saddle supports 1-1/4" (31.8 mm) or 1-1/2" (38.1 mm) diameter Schedule 40 hand rail tubing
- Standard post heights: 36" (914 mm) and 42" (1.07 m); custom heights available
- Two standard stainless finishes; custom powder coat finishes available

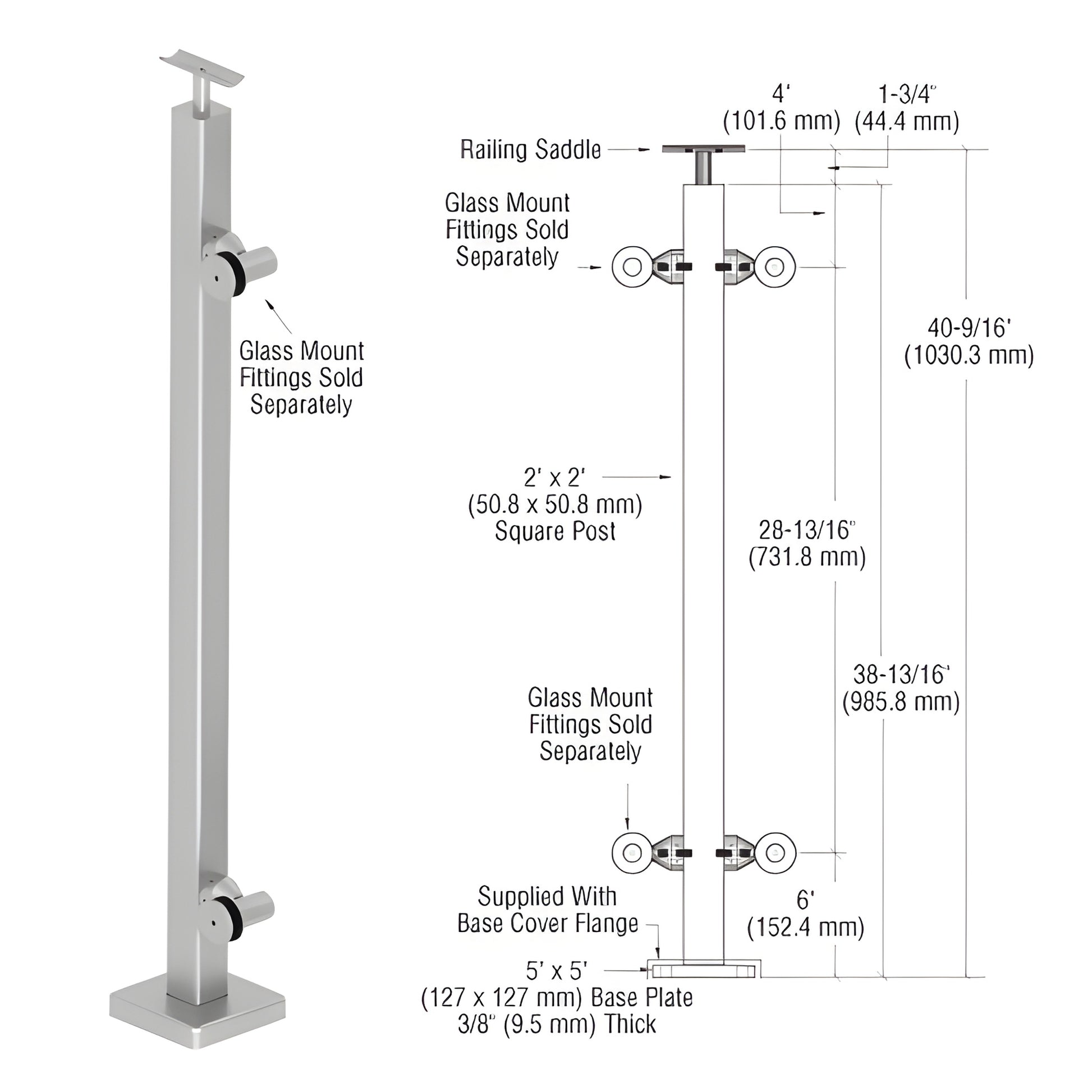

CRL P1 Post Railing Kits (SKU: P142EBSC) are surface-mounted stainless steel post kits designed for commercial and residential guard railing and glass railing installations. Constructed from 2" (51 mm) square 316 alloy stainless steel tubing with 3/16" (4.8 mm) wall thickness, these kits are supplied complete with a 5" x 5" (127 x 127 mm) base plate, base flange cover, and welded top saddle—ideal for secure glass panel mounting and durable outdoor or indoor use. For top-rail attachment screws, specify Cat. No. PRS1032 (10-32" x 5/8" stainless steel screws, 50 per pack).
Product Warning:
All P-Series post kits are sold without glass attachment fittings; glass fittings must be purchased separately.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Order the CRL P1 Surface Mounted Post Railing Kit (P142EBSC) for reliable, code-compliant glass railing installations—contact CRL or your distributor to buy or request a quote.
