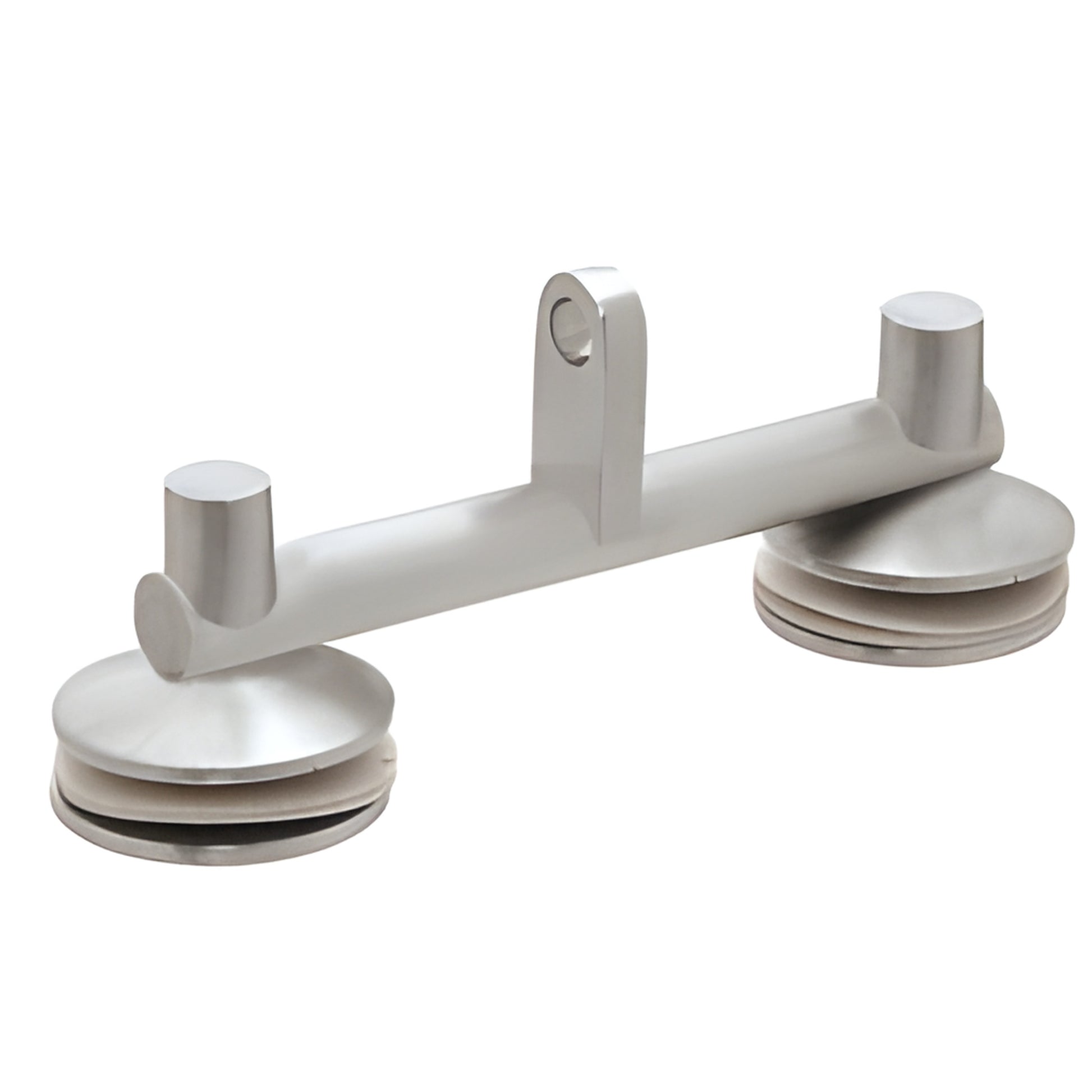

CRL 316 Brushed Stainless Double-Plate Glass Awning Pivot Hinge

• Complete hardware system for 9/16" (14 mm) tempered laminated glass awnings (SKU: GAS122BS)
• Provides weather protection without obstructing the view
• Adjustable slope to suit most weather conditions
• All high-grade 316 alloy stainless steel components for panels up to 48" (1.22 m) wide and 72" (1.83 m) long when used with two connecting rods and two mounting kits
• Easy installation—economical, elegant solution for commercial and residential glass awnings

The CRL Glass Awning Support System provides a clean, graceful entrance solution. Using 9/16" tempered laminated glass allows a range of glass colors, textures, and special effects not available with monolithic glass, enhancing modern architectural designs.

The eye-and-fork connections and adjustable connecting rods make installation quick and simple and allow field adjustments for varying job conditions. All components are 316 alloy stainless steel for long-lasting durability in harsh or coastal environments.

For additional information, contact CRL Architectural and Ornamental Metals Technical Sales Department.

SPECIFICATIONS:
Material: All 316 alloy stainless steel construction.
Typical Panel: 9/16" (14 mm) tempered laminated glass: 1/4" (6 mm) tempered glass + .060" (1.5 mm) interlayer + 1/4" (6 mm) tempered glass.
Glass Fabrication Required: Two 5/8" (16 mm) and two 1-1/16" (27 mm) diameter holes per panel.
Ordering Tip: Sold individually—two connecting rods and two mounting kits are required per panel.

Stainless Steel Advisory:

Ready to specify the CRL Glass Awning Support System (GAS122BS)? Contact CRL Technical Sales for quotes, CAD details, and installation guidance.
