CRL 48 in Brushed Stainless Universal Wall-Mount Glass Awning Bracket
Item# GAB48BS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
| Finish/Color | Brushed Stainless Steel |
| Glazing Thickness | 9/16 in. (15 mm) |
| Glazing | Type Monlithic Tempered, Laminated |
| Length 48 in. | (1219.2 mm) |
| Material | Stainless Steel (Alloy 304) |
| Mounting | Application Wall |
- Used on Flat or Curved Top Segmented Glass Awnings
- Fabricated From 304 Alloy Stainless Steel
- Available in Brushed or Polished Finishes
- Custom Angles or 45 Degrees Corner Brackets are Available on Special Order
- Requires 9/16" (14 mm) Thick Laminated Glass
- Use Monolithic Tempered Glass

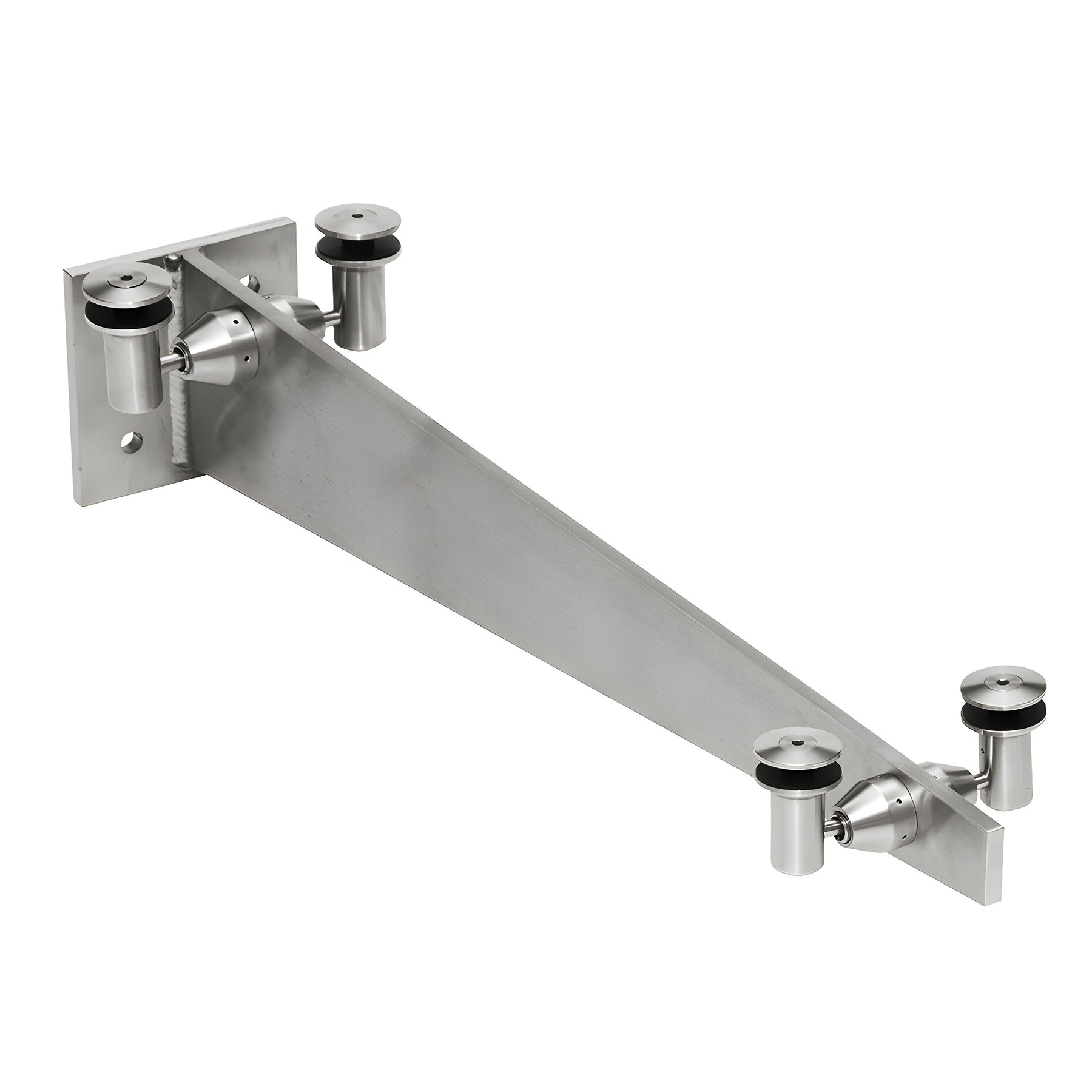

These CRL Universal Wall Mount Glass Awning Brackets (SKU: GAB48BS) combine durability and adaptability for architectural glass awnings. Each bracket features four glass attachments that require one 3/4" (19 mm) hole in the glass per attachment and are designed to work with 9/16" (14 mm) thick tempered laminated glass. The swiveling glass attachments adjust 16 degrees (8 degrees in any direction) to accommodate segmented, bent, warped, or curved glass—making them ideal as wall mount glass awning brackets for segmented laminated or monolithic tempered glass installations.
For special sizes or configurations, contact CRL Architectural and Ornamental Metals Technical Sales Department.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation. Colors may vary depending on your monitor settings.
Stainless Steel Advisory:
Although stainless steel is resistant to corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer in the Technical References section below.
Shop now for GAB48BS stainless steel wall mount glass awning brackets or contact us for custom orders.
CAD Drawings - pdf
