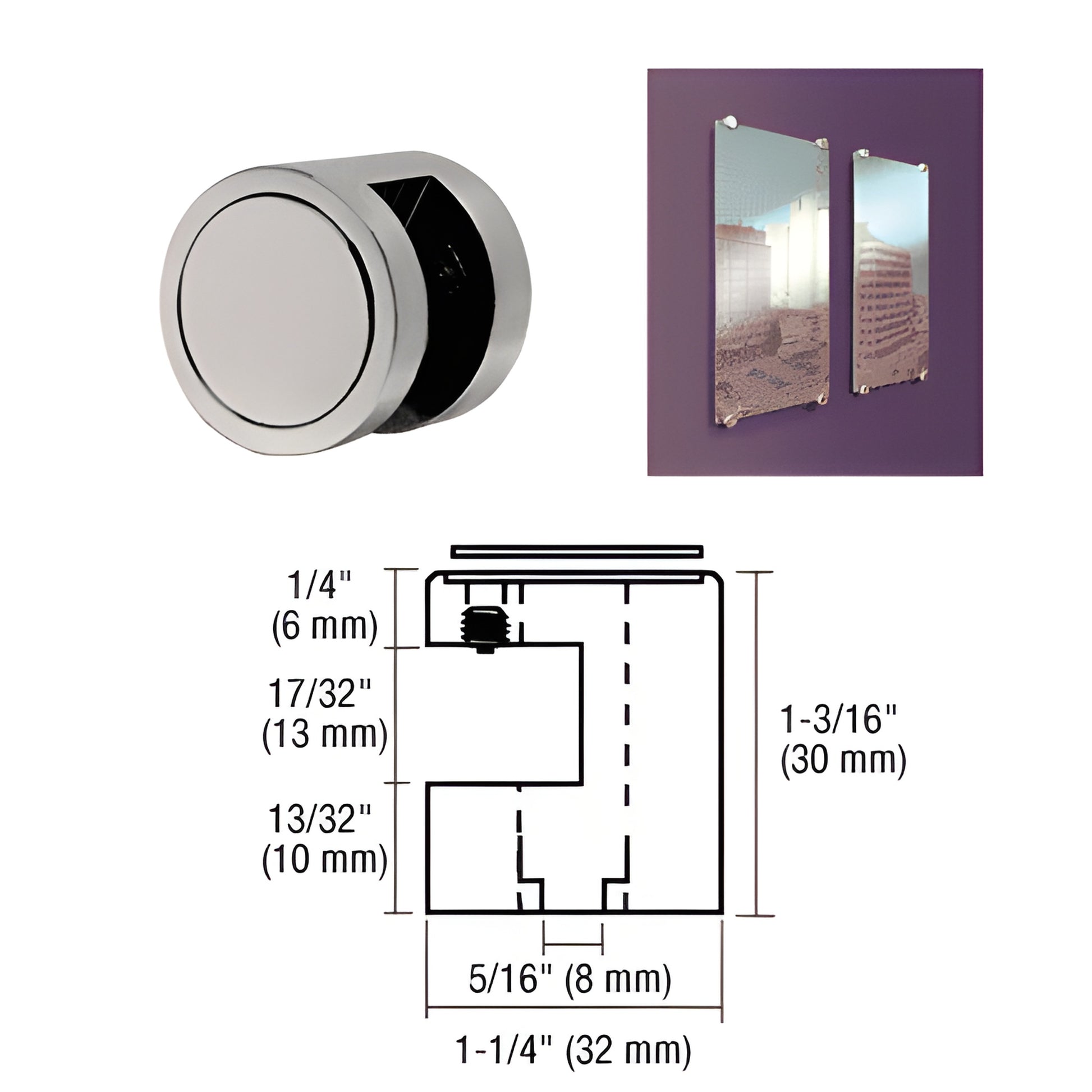

• EG12BS brushed stainless 1-1/4" edge grip for 1/2" panels, no-drill mount - round standoff with diagram and sample install.
1 1

CRL

CRL 316 Brushed Stainless Edge Grip Clamp for 1/2" Glass

CRL 316 Brushed Stainless Edge Grip Clamp for 1/2" Glass

$44.22 CAD
$44.22 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# EG12BS
Shipping Weight: 4.8 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Diameter
1-1/4 in. (31.8 mm)
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (12 mm)
Height
1-3/16 in. (30.2 mm)
Material
316 Stainless Steel

Overview

  • For 1/2" (12.7 mm) material thickness
  • No drilling required in glass or panel materials — ideal for no-drill glass panel mounting
  • Can be used on corners and edges of panels
  • Supplied with an EGCS socket head cap screw

CRL's Edge Grips — Model EG12BS provide a secure, non-invasive way to mount decorative panels or signage to walls and substrates. The Edge Grip holds 1/2" panels without drilling holes in the face material, enabling faster installation, easy adjustment, and a clean finished appearance. These 1-1/4" (32 mm) diameter edge grips are available in brass, chrome, satin chrome, 316 brushed stainless, and gun metal finishes, and are compatible with CRL standoffs. For heavier panels, CRL recommends using edge grips at the top, bottom, and sides for maximum support.

Installation Note: To attach the Edge Grip directly to a substrate, use Cat. No. 12X112PHPSMS (No. 12 x 1-1/2" pan head Phillips sheet metal screw). Screws should be installed into wood blocking where possible. Edge Grips are recommended for rectangular or square panels only.

Edge Grip Specs:
Diameter: 1-1/4" (32 mm)
EG14BS Length: 1-1/16" (27 mm)
EG38 Length: 1-1/8" (28.6 mm)
EG12 Length: 1-3/16" (30.1 mm)

Replacement cover disks are available for repair or replacement.

Product Warning:

Use CRL Edge Grips at the top, bottom, and sides of heavier panels for maximum support.

Most shipping weights are approximate and have not been verified. If exact weight is required for shipping cost calculation, contact CRL Customer Service before placing your order. Product images are actual or close representations; colors may vary with monitor settings.

Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. Periodic maintenance is recommended to maintain the factory finish. See the Stainless Steel Disclaimer in Technical References for more details.


SKU: EG12BS

Order EG12BS edge grips today to secure 1/2" panels without drilling — contact CRL or add to cart to get started.
