CRL Chrome Edge Grip Clamp for 1/2" Glass & Acrylic Panels
CRL Chrome Edge Grip Clamp for 1/2" Glass & Acrylic Panels
Regular price
$31.78 CAD
Regular price
Sale price
$31.78 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# EG12CH
Shipping Weight: 4.8 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 4.8 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Diameter
1-1/4 in. (31.8 mm)
Finish/Color
Polished Chrome
Glazing Thickness
1/2 in. (12 mm)
Height
1-3/16 in. (30.2 mm)
Material
Brass
Overview
- For 1/2" (12.7 mm) material thickness
- No drilling required in glass or panel materials
- Fits corners and edges of panels
- Supplied with an EGCS socket head cap screw
CRL's Edge Grips (SKU: EG12CH) provide a no-drill mounting solution for attaching decorative panels, glass, or signage to walls and substrates. The Edge Grip clamps 1/2" panels without penetrating the face material, enabling quick installation, easy adjustment, and damage-free removals—ideal for retail displays, interior glass panels, and acrylic signage where preserving the panel surface is critical. Available 1-1/4" (32 mm) diameter finishes include brass, chrome, satin chrome, 316 brushed stainless, and gun metal. Compatible with CRL standoffs and recommended at the top, bottom, and sides of heavier panels for maximum support.
NOTE: To fasten an Edge Grip directly to a substrate, use Cat. No. 12X112PHPSMS (No. 12 x 1-1/2" pan head Phillips sheet metal screw). Screws should be installed into wood blocking when possible. Edge Grips are recommended for rectangular or square panels only.

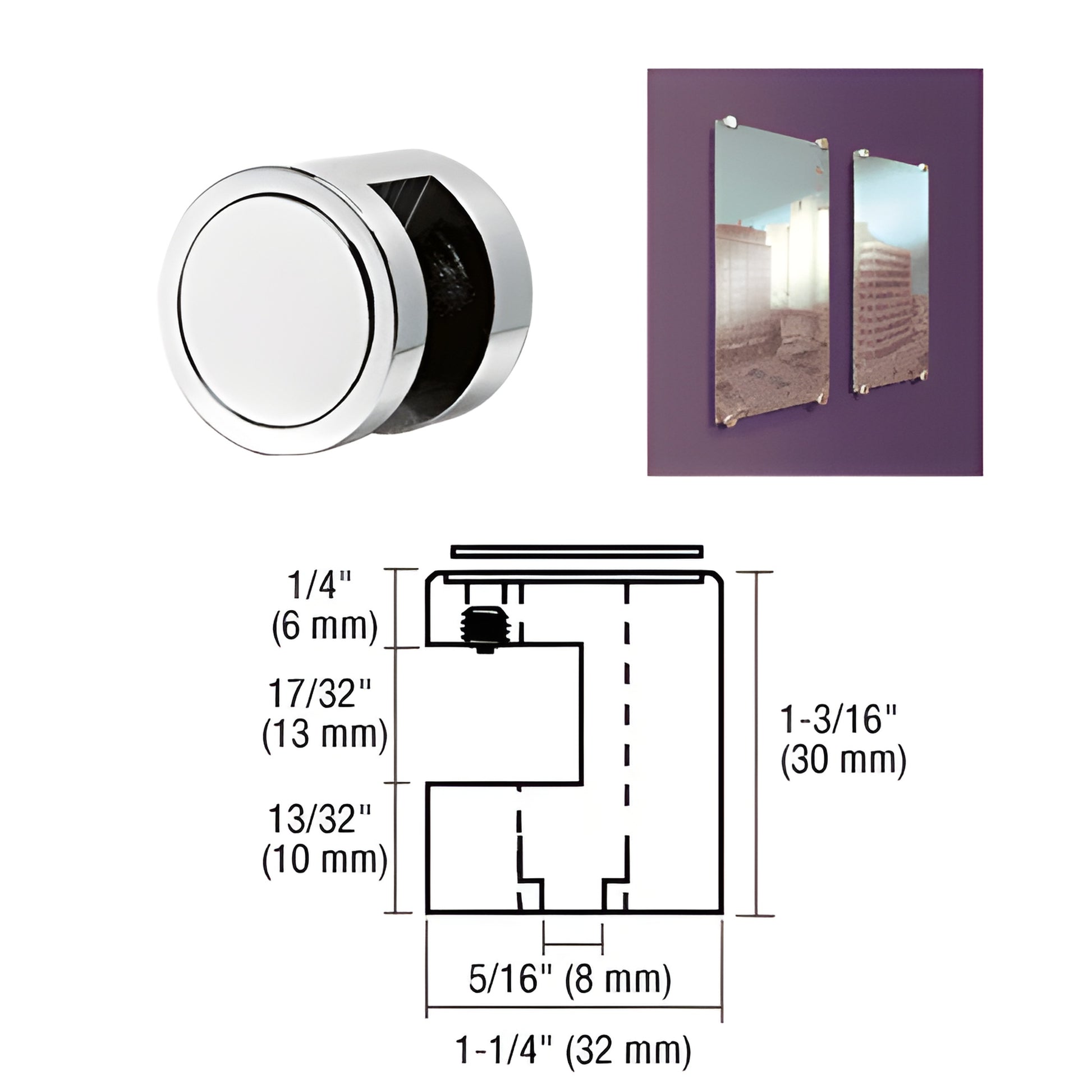

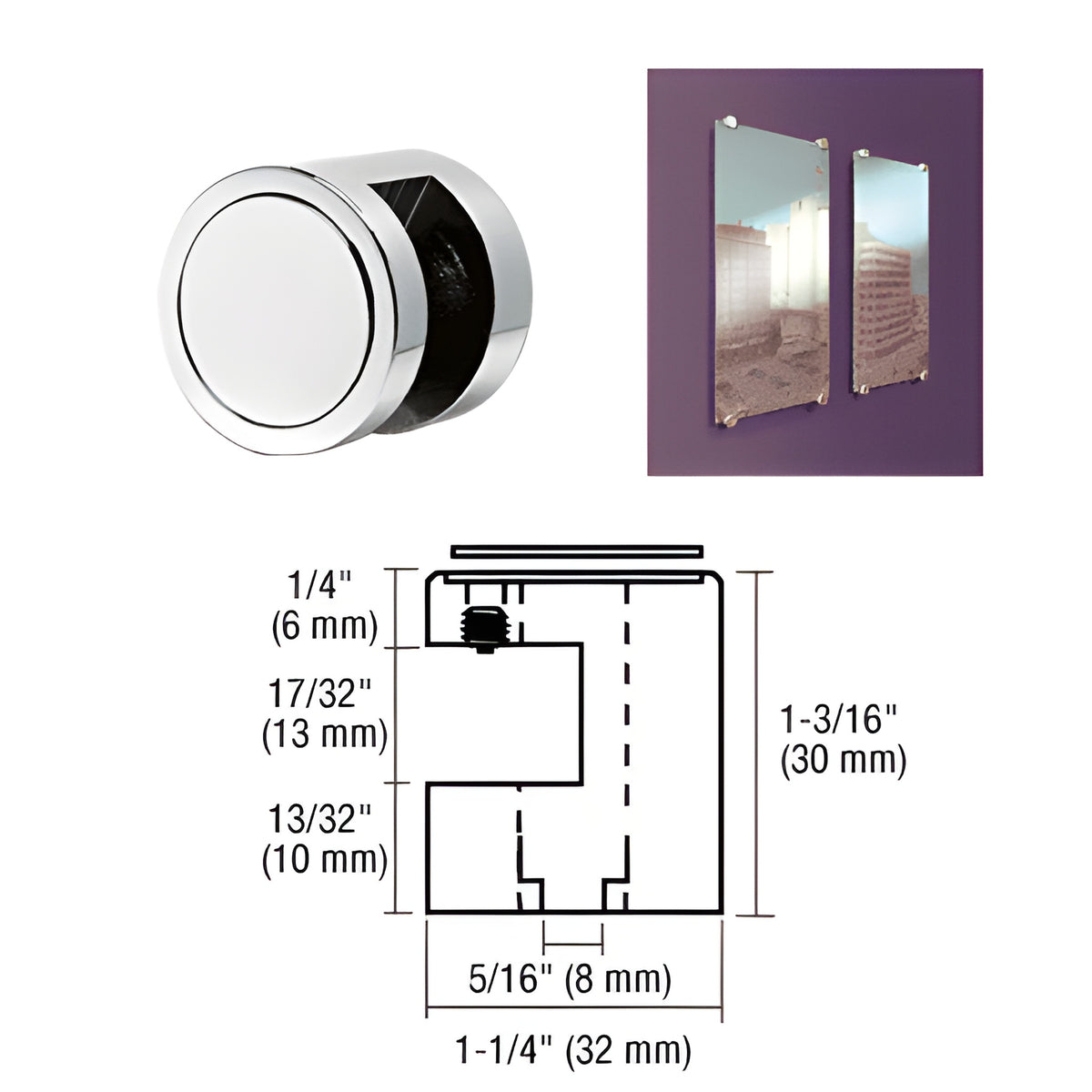

Edge Grip specs:
Diameter: 1-1/4" (32 mm)
EG14BS Length: 1-1/16" (27 mm)
EG38 Length: 1-1/8" (28.6 mm)
EG12 Length: 1-3/16" (30.1 mm)
Replacement cover disks are available for repairs or replacements.
Product Warning:
Use CRL Edge Grips at the top, bottom, and sides of heavier panels for maximum support.
Find the EG12CH Edge Grip for 1/2" panels—shop now for no-drill panel mounting solutions.
