316 Brushed Stainless Bi-Parting Sliding Door Kit - CRL Laguna
316 Brushed Stainless Bi-Parting Sliding Door Kit - CRL Laguna
Regular price
$2,918.00 CAD
Regular price
Sale price
$2,918.00 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# LSWM6BS
Shipping Weight: 35.0 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 35.0 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Anti-Lift
Yes
Door Attachment
Flush, Surface
Door Configuration
Double Door
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in. or 1/2 in. (10 mm or 12 mm)
Glazing Type
Tempered Monolithic
Material
316 Stainless Steel
Maximum Door Height
98-7/16 in. (2500 mm)
Maximum Panel Weight
220 lbs. (100 kg)
Minimum Door Width
37-13/16 in. (960 mm)
Mounting Application
Wall
Track Diameter
1-1/4 in. (32 mm)
Track Length
104 in. (2642 mm)
Overview
- Improved Anti-Lift Design for enhanced security and smooth operation
- Includes all necessary hardware to install with 3/8" or 1/2" (10 or 12 mm) tempered glass (glass sold separately)
- Alloy 316 Stainless Steel construction for superior corrosion resistance
- Surface Mount and Flush Mount fittings included; Spanner wrench for installation sold separately

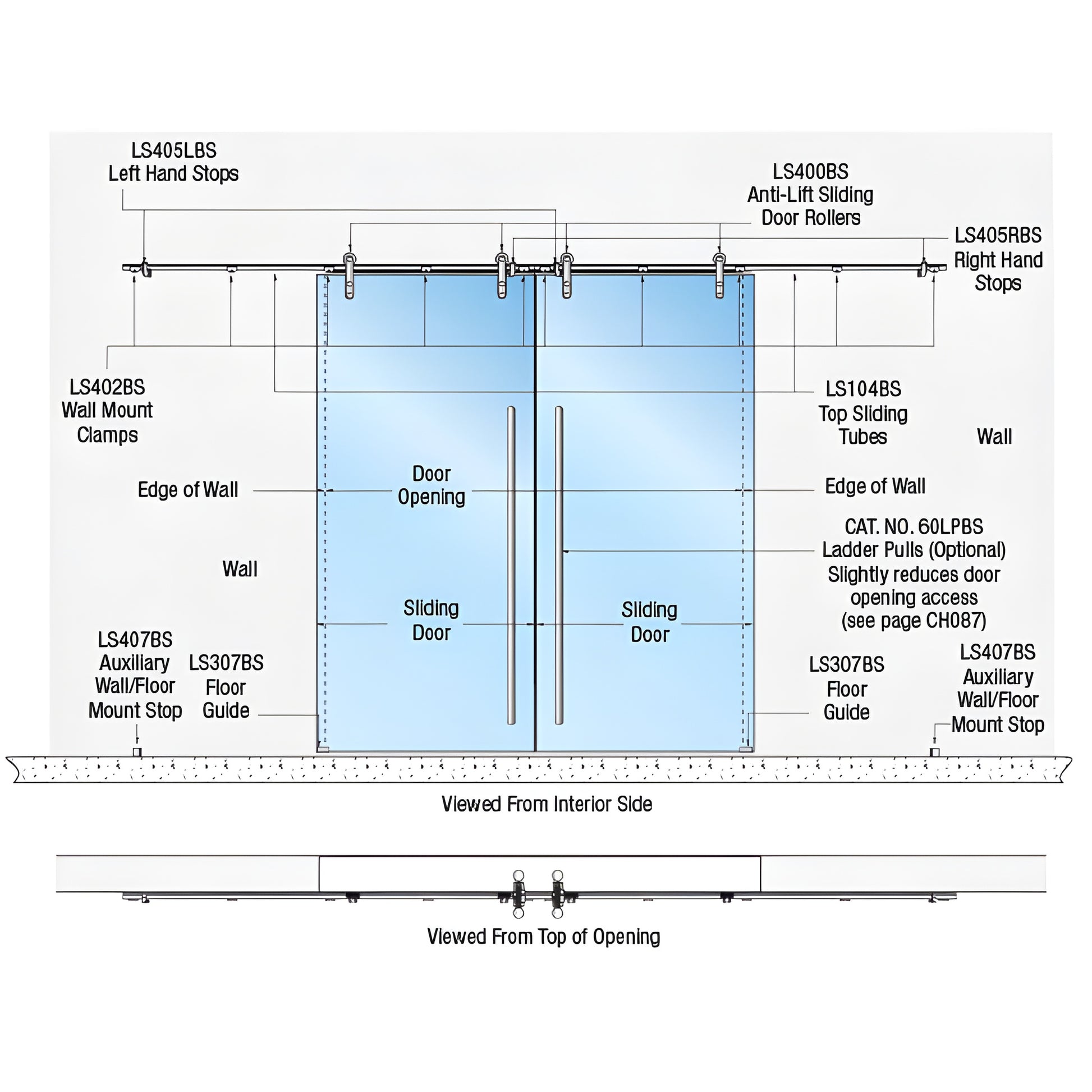

The CRL Laguna Series Wall Mount Bi-Parting Slider Kit (SKU: LSWM6BS) contains the components required to install two bi-parting sliding doors on the inside face of a reinforced wall. Designed for interior wall-mount applications, this kit is optimized for 3/8" or 1/2" (10 or 12 mm) tempered glass. Laminated glass is not compatible.
The Anti-Lift Sliding Door Top Rollers attach to glass using the supplied Surface or Flush Mount fittings and offer 1/8" (3 mm) vertical adjustment to fine-tune door alignment. Alloy 316 stainless steel hardware improves durability in humid or marine environments.
DOOR SYSTEM LIMITATIONS:
Maximum Door Weight: 220 Lbs. (100 kg)
Minimum Door Width: 37-13/16" (960 mm)
Maximum Door Width: 53-9/16" (1.36 m)
Maximum Door Height: 98-7/16" (2.50 m)
Maximum Track Length: 104" (2.64 m)
Product Warning:
STRUCTURAL DISCLAIMER — Consult a licensed structural engineer to confirm product suitability for your site. Installers must be qualified and follow all local, state, and federal regulations, safety requirements, and proper fixing procedures.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not rust-proof. Periodic maintenance is recommended to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Ready to spec the Laguna Series Wall Mount Bi-Parting Slider Kit (LSWM6BS)? Contact CRL or your local distributor to order or request technical assistance.
