CRL Laguna 316 SS Wall-Mount Bi-Parting Sliding Door Kit

• Improved Anti-Lift Design for secure bi-parting glass doors
• Includes all hardware for installation with 3/8" or 1/2" (10 or 12 mm) tempered glass
• Alloy 316 stainless steel construction for corrosion resistance

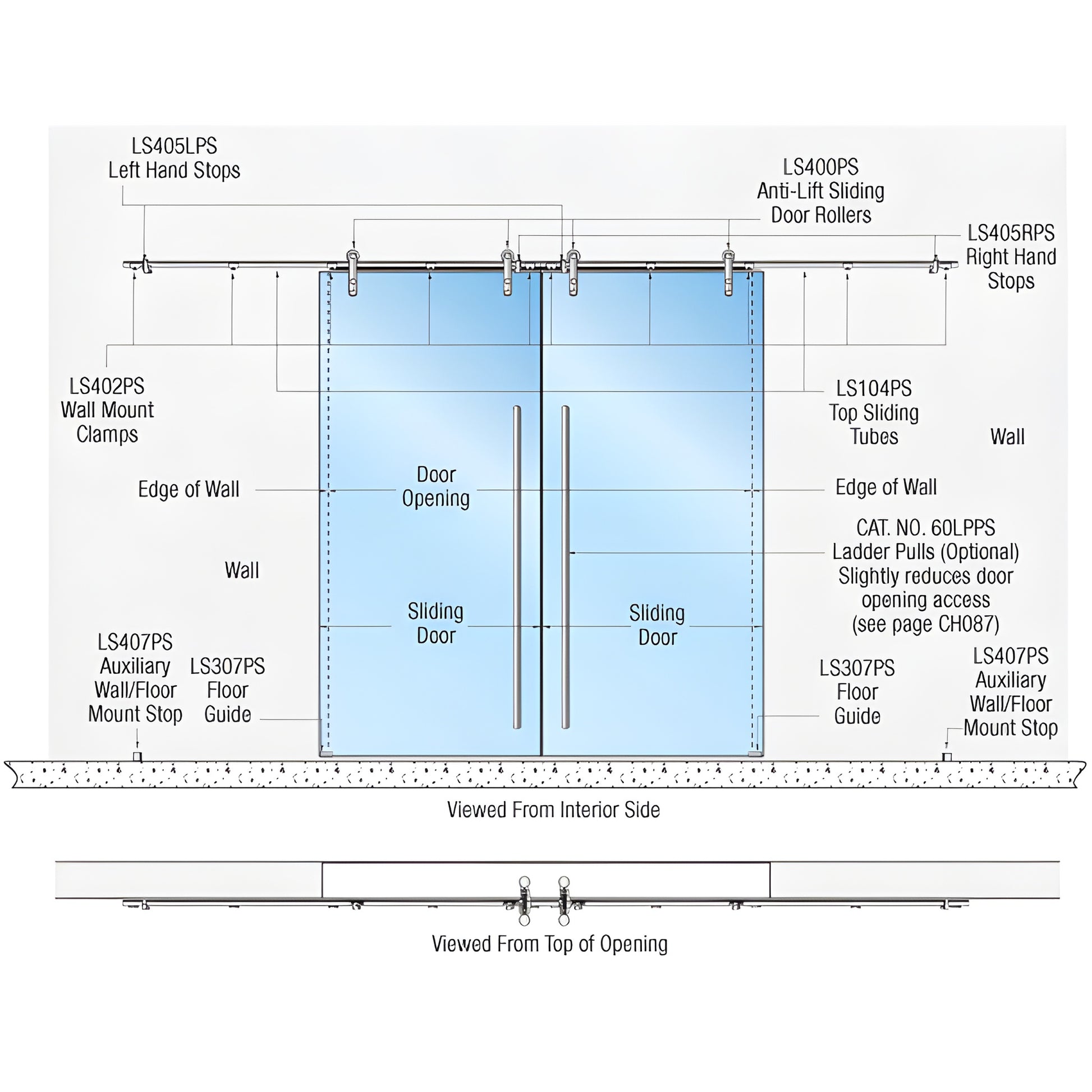

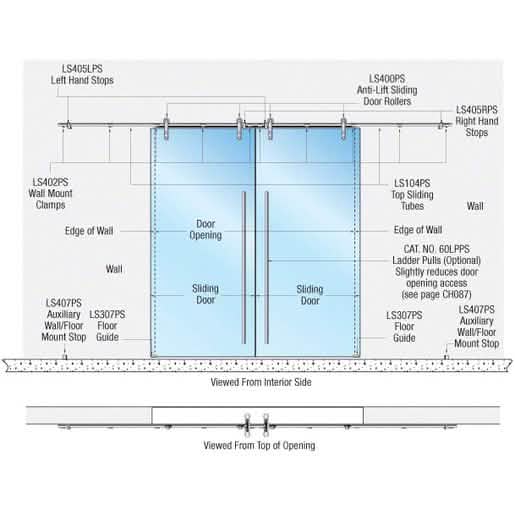

The CRL Laguna Series Wall Mount Bi-Parting Slider Kit (SKU: LSWM6PS) contains all components needed—except the tempered glass—to install two bi-parting sliding doors mounted to the inside face of a properly reinforced wall. Ideal for commercial and residential glass door applications, this wall mount bi-parting slider kit is built for durability and smooth operation.


The anti-lift sliding door top rollers attach to glass using either Surface Mount or Flush Mount fittings (both included). Rollers provide 1/8" (3 mm) vertical adjustment for precise door alignment. This system is compatible only with 3/8" or 1/2" (10 or 12 mm) tempered glass; laminated glass cannot be used.

DOOR SYSTEM LIMITATIONS:
Maximum Door Weight: 220 Lbs. (100 kg)
Minimum Door Width: 37-13/16" (960 mm)
Maximum Door Width: 53-9/16" (1.36 m)
Maximum Door Height: 98-7/16" (2.50 m)
Maximum Track Length: 104" (2.64 m)

Product Warning:

STRUCTURAL DISCLAIMER - Customers must consult a structural engineer to confirm suitability for the intended use and site conditions. Installers must be qualified and follow applicable local, state, and federal regulations, safety requirements, and appropriate fixing methods.

Stainless Steel Advisory:
