CRL Laguna Matte Black Wall Mount Bi-Parting Sliding Glass Door Kit

• Improved Anti-Lift Design for secure bi-parting sliding glass doors
• Includes all hardware required to install with 3/8" or 1/2" (10 or 12 mm) tempered glass
• Alloy 316 stainless steel construction for corrosion resistance
• Surface Mount and Flush Mount fittings included; spanner wrench sold separately

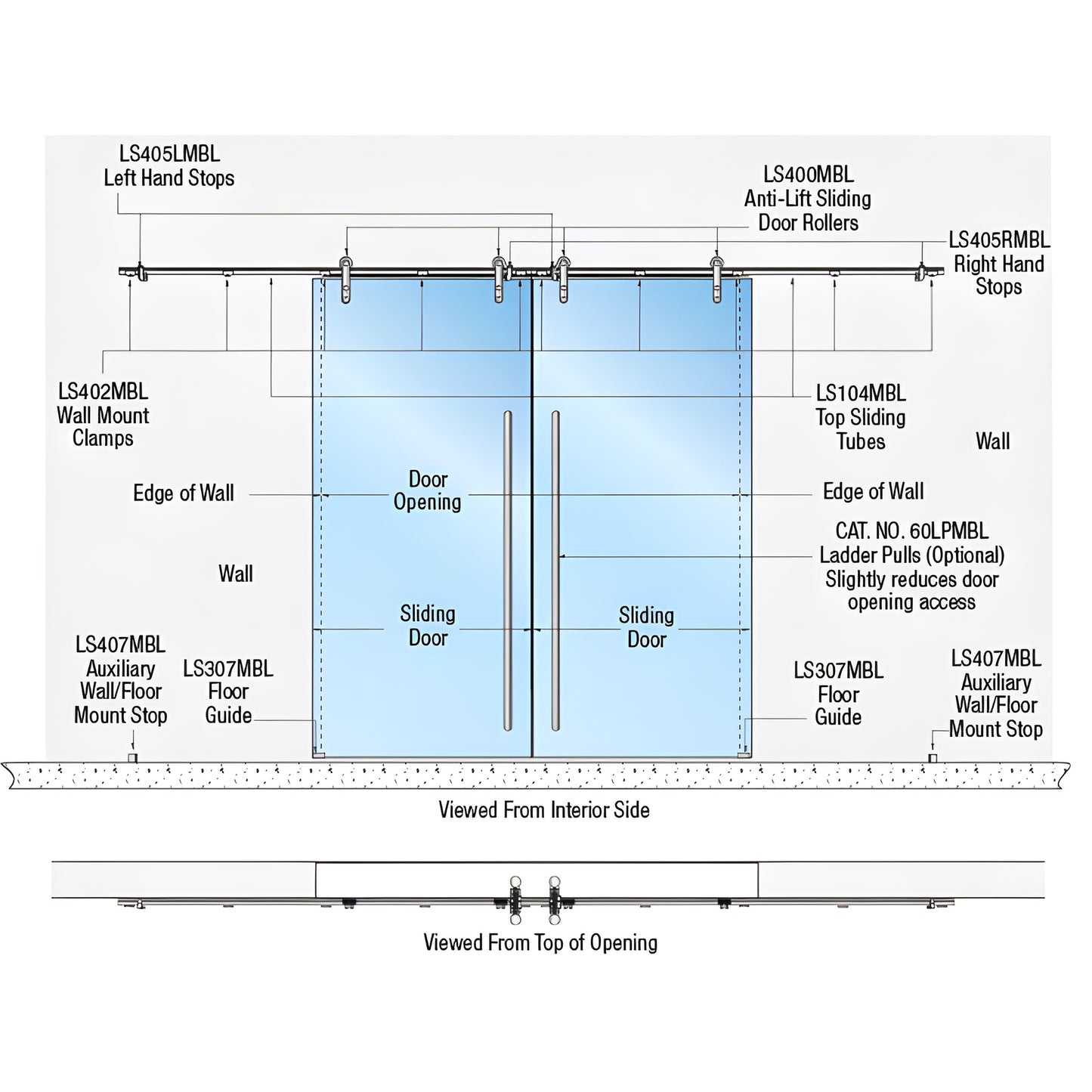

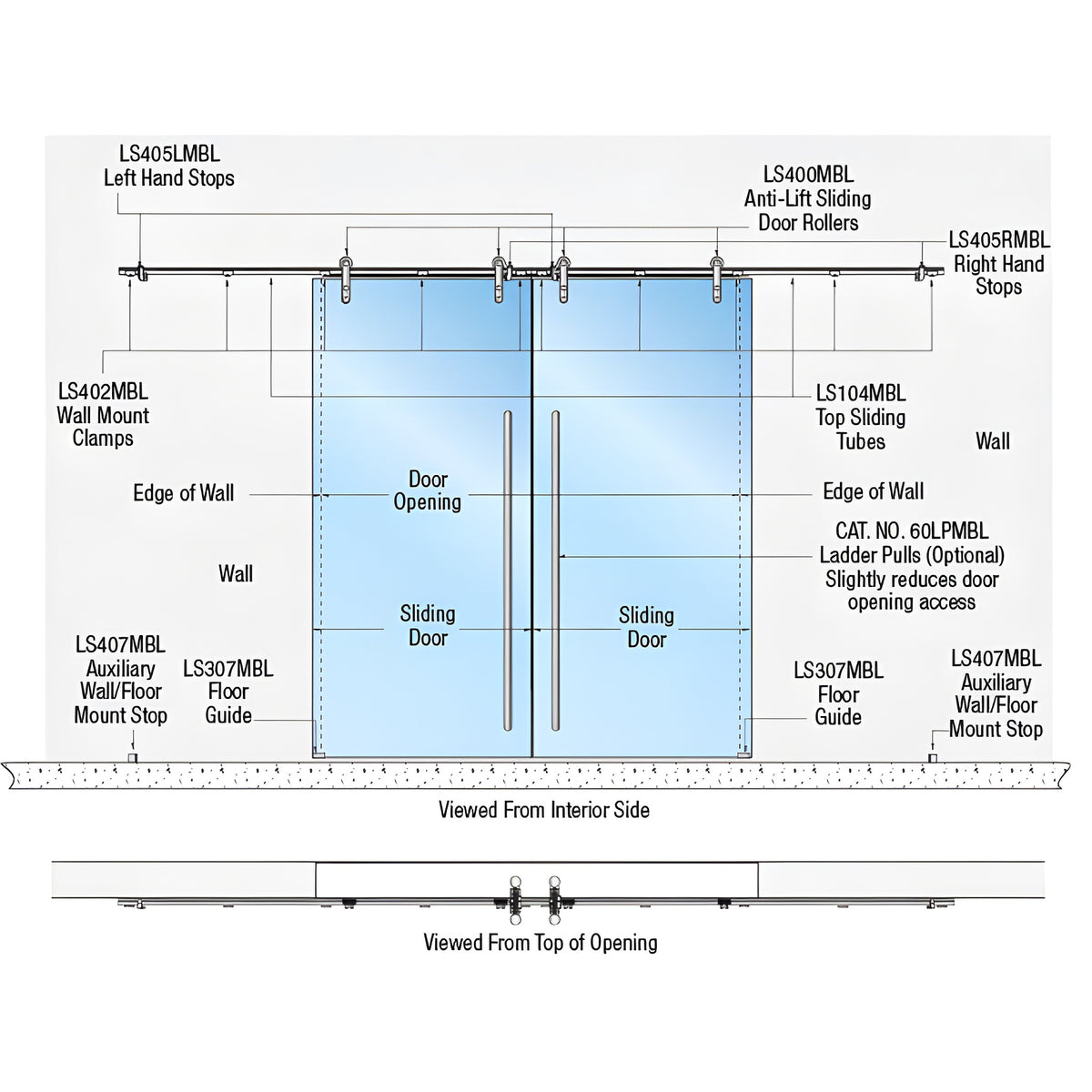

The CRL Laguna Series Wall Mount Bi-Parting Slider Kit (SKU: LSWM6MBL) contains the components needed — excluding tempered glass — to install a bi-parting sliding door system mounted to the inside face of a reinforced wall. Ideal for commercial and residential applications requiring a durable, corrosion-resistant 316 stainless steel bi-parting slider kit.


The Anti-Lift Sliding Door Top Rollers attach to glass using either the supplied Surface Mount or Flush Mount fittings. Rollers provide 1/8" (3 mm) up/down vertical adjustment for precise door alignment. This system is compatible only with 3/8" or 1/2" (10 or 12 mm) tempered glass — laminated glass cannot be used.

NOTE: Laminated glass cannot be used.

DOOR SYSTEM LIMITATIONS:
Maximum Door Weight: 220 lbs (100 kg)
Minimum Door Width: 37-13/16" (960 mm)
Maximum Door Width: 53-9/16" (1.36 m)
Maximum Door Height: 98-7/16" (2.50 m)
Maximum Track Length: 104" (2.64 m)


Product Warning:

STRUCTURAL DISCLAIMER - Consult a structural engineer to confirm suitability of this Laguna Series wall mount bi-parting slider kit for your site conditions. Installers must be qualified and follow local, state, and federal regulations, appropriate fixing materials, and safe installation procedures.


For pricing, lead time, or to order the Laguna Series Wall Mount Bi-Parting Slider Kit (LSWM6MBL), contact CRL Customer Service or your local distributor today.
