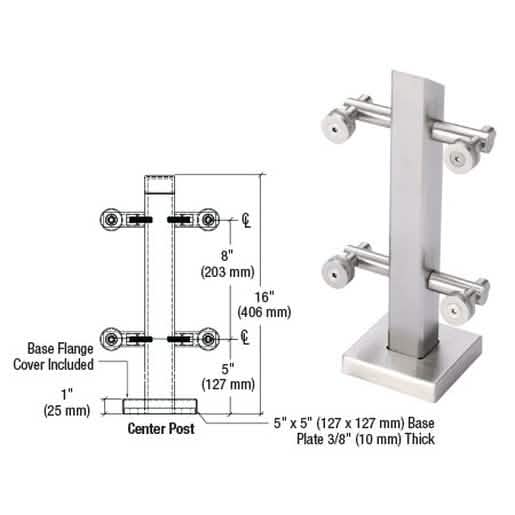

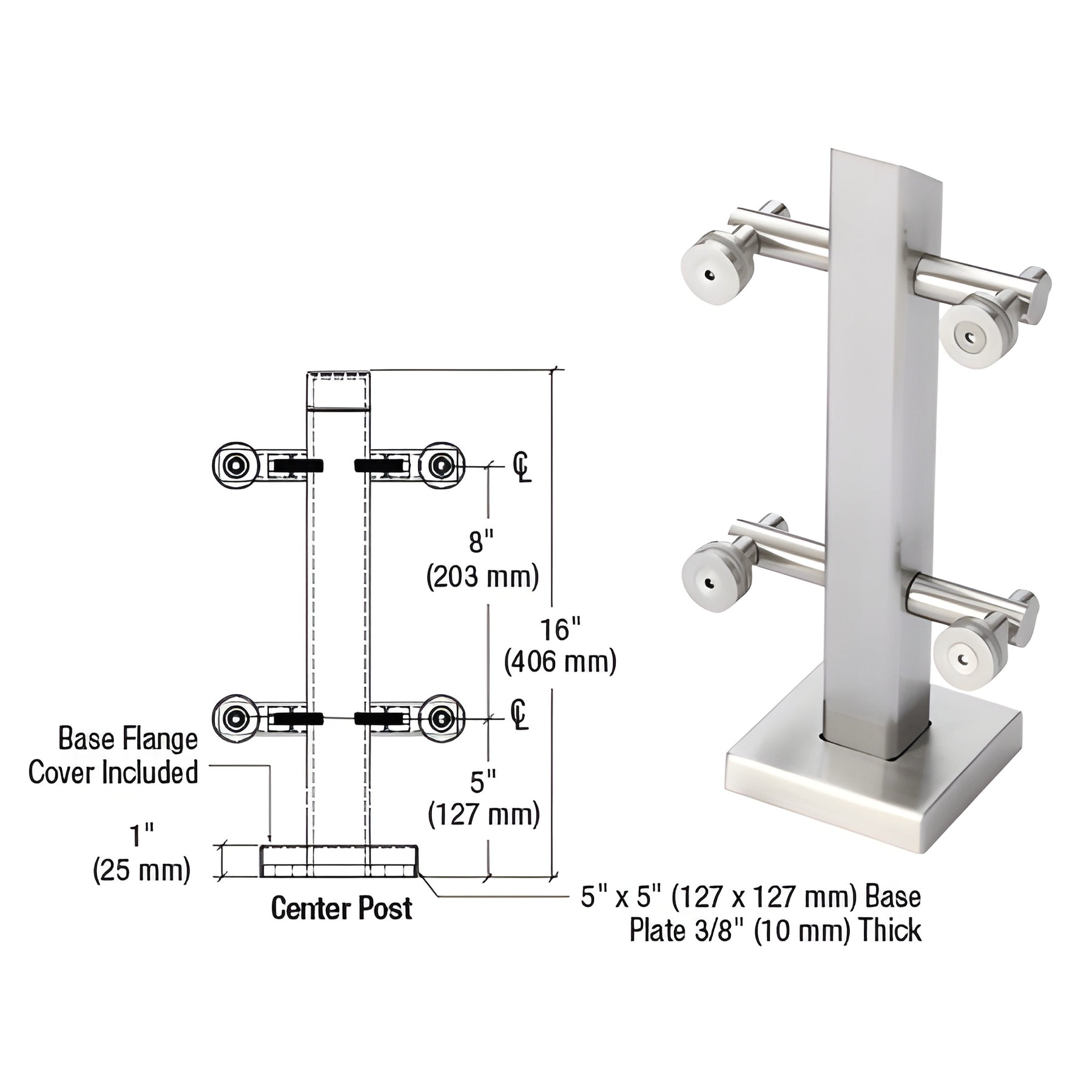

CRL 316 Brushed Stainless Steel Center Post for Point-Supported Glass
CRL 316 Brushed Stainless Steel Center Post for Point-Supported Glass
Regular price
$1,316.91 CAD
Regular price
Sale price
$1,316.91 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PWC1CBS
Shipping Weight: 11.88 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 11.88 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Plate Cover Included
Yes
Base Plate Length
5 in. (127 mm)
Base Plate Mounting Holes
4
Base Plate Thickness
3/8 in. (10 mm)
Base Plate Width
5 in. (127 mm)
Finish/Color
Brushed Stainless Steel
Height
16 in. (406 mm)
Material
316 Stainless Steel
Mounting Hole Diameter
9/16 in. (14 mm)
Profile
Center Post
Overview
- SKU: PWC1CBS — 316 Grade Stainless Steel point-supported mini posts in two architectural finishes
- Fits 1/2" (12 mm) monolithic tempered glass and 9/16" (13.52 mm) laminated tempered glass
- Non-handed design for universal installation
CRL Point Supported Center and End Mini Posts are engineered for small windbreaks, pool surrounds, and glass guard rails. These compact mini posts install on almost any mounting substrate, comply with common safety requirements and building codes, and require two 3/4" (19 mm) diameter holes per post in the glass. Anchor bolts sold separately.
Stainless Steel Advisory:
316 Grade Stainless Steel offers strong corrosion resistance but is not rust- or stain-proof. Periodic maintenance is recommended to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Order PWC1CBS mini posts for durable, code-ready glass railing hardware — contact CRL or add to cart to get started.
