CRL 316 Polished Stainless Steel Center Post for Glass Railings
CRL 316 Polished Stainless Steel Center Post for Glass Railings
Regular price
$1,447.68 CAD
Regular price
Sale price
$1,447.68 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PWC1CPS
Shipping Weight: 11.66 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 11.66 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Plate Cover Included
Yes
Base Plate Length
5 in. (127 mm)
Base Plate Mounting Holes
4
Base Plate Thickness
3/8 in. (10 mm)
Base Plate Width
5 in. (127 mm)
Finish/Color
Polished Stainless Steel
Height
16 in. (406 mm)
Material
316 Stainless Steel
Mounting Hole Diameter
9/16 in. (14 mm)
Profile
Center Post
Overview
- Available in 316 Grade Stainless Steel in Two Architectural Finishes
- For use with 1/2" (12 mm) monolithic tempered glass and 9/16" (13.52 mm) laminated tempered glass
- Non-handed

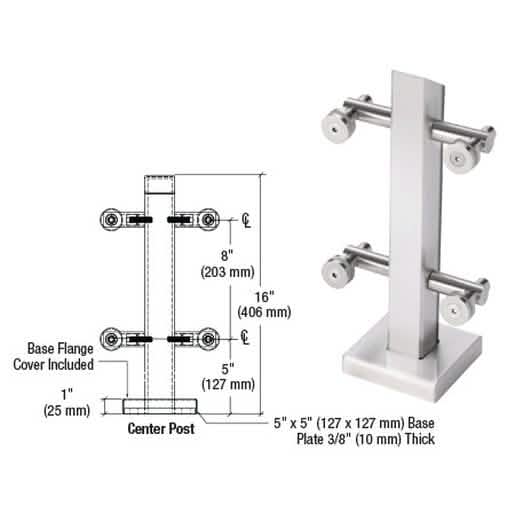

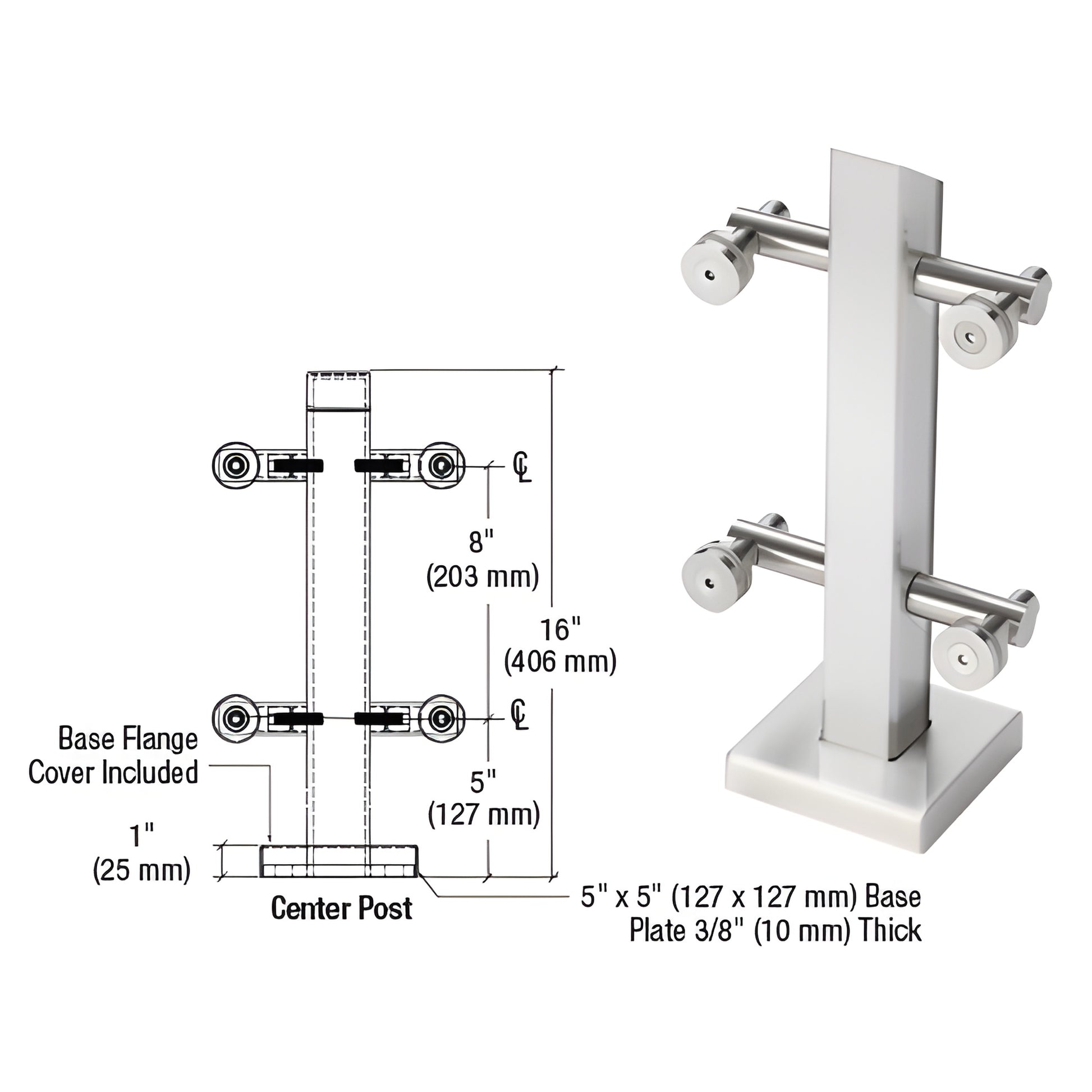

CRL Point Supported Center and End Mini Posts (SKU: PWC1CPS) are compact 316 stainless steel posts engineered for small windbreaks, pool surrounds, balcony guardrails, and other frameless glass railing applications. These point-supported mini posts accept 1/2" monolithic or 9/16" laminated tempered glass and install on most substrates—ideal when a low-profile, architectural stainless glass post is needed. Glass requires two 3/4" (19 mm) diameter holes per post. Anchor bolts sold separately.
Stainless Steel Advisory:
316 stainless steel offers superior corrosion resistance for exterior and coastal applications but is not entirely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for full care instructions.
Order PWC1CPS mini posts for durable, low-profile point-supported glass railing—contact CRL to confirm anchor bolt requirements and lead times.
