CRL P1 316 Polished Stainless Steel 180° Center Post Railing Kit
CRL P1 316 Polished Stainless Steel 180° Center Post Railing Kit
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# P142CPSC
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Angle
180
Base Plate Length
5 in. (127 mm)
Base Plate Thickness
3/8 in. (10 mm)
Base Plate Width
5 in. (127 mm)
Finish/Color
Polished Stainless Steel
Height
42 in. (1067 mm)
Material
316 Stainless Steel
Overview
- For use with 1/2" (12 mm) to 1" (25 mm) thick panels (glass or panel infill)
- Glass attachment fittings sold separately
- Meets or exceeds guardrail and handrail code standards
- Top saddle supports 1-1/4" (31.8 mm) or 1-1/2" (38.1 mm) diameter Schedule 40 handrail tubing
- Standard post heights: 36" (914 mm) and 42" (1.07 m); custom heights available
- Two standard stainless finishes; custom powder coat finishes also available

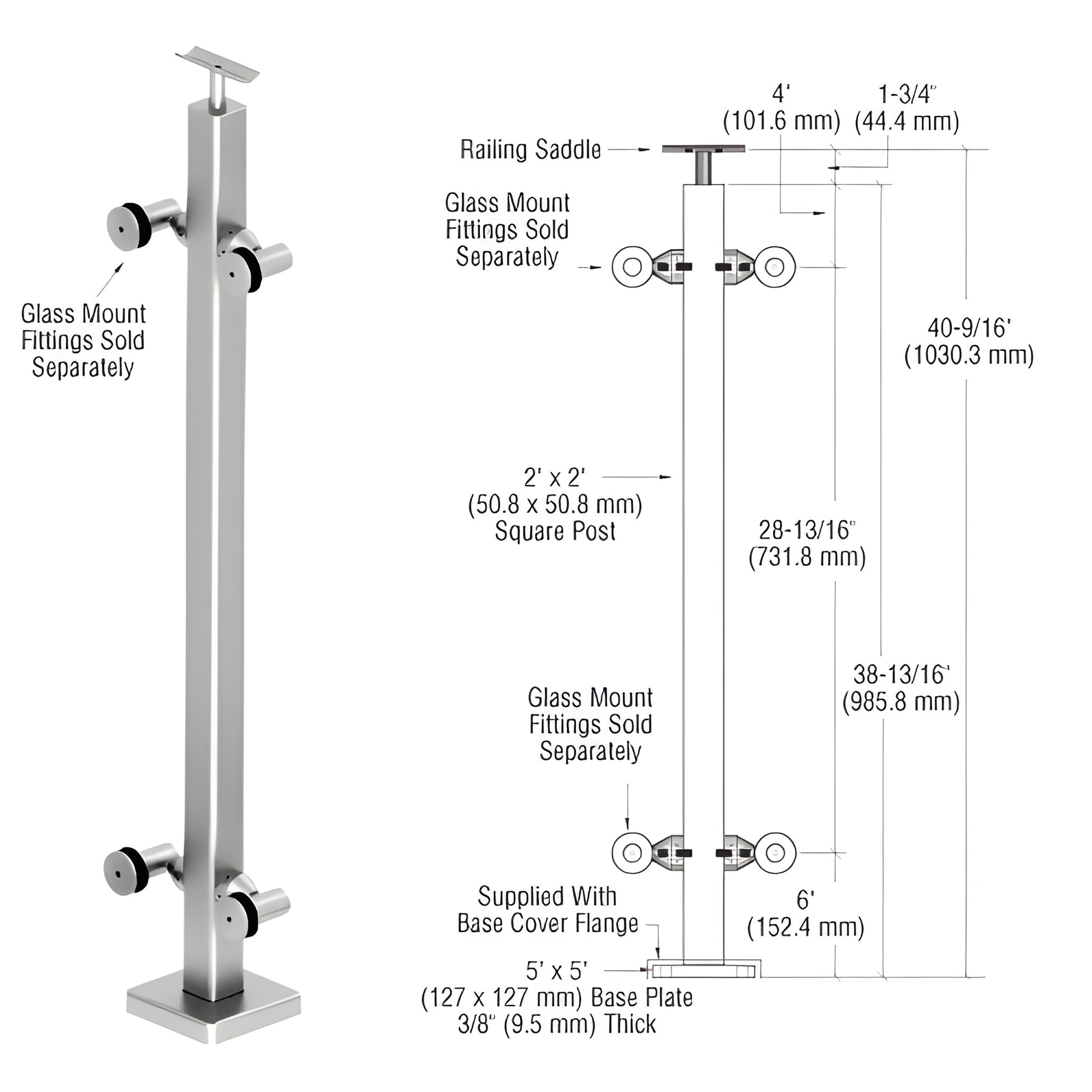

CRL P1 Post Railing Kits (SKU: P142CPSC) are engineered for commercial and residential projects requiring code-compliant surface-mounted guardrail and handrail systems. These P1 surface-mounted post railing kits are manufactured from 2" (51 mm) square 316 alloy stainless steel tubing with a 3/16" (4.8 mm) wall thickness for enhanced durability and corrosion resistance. Each kit includes a 5" x 5" (127 x 127 mm) base plate, base flange cover, and welded top saddle. For top rail attachment screws specify Cat. No. PRS1032 — 10-32" x 5/8" stainless steel screws (50 per pack).
Product Warning:
All P-Series post kits are sold without glass attachment fittings; glass fittings must be purchased separately.
Stainless Steel Advisory:
Although stainless steel is corrosion-resistant, it is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for care instructions.
Need a quote or help selecting glass fittings and custom finishes? Contact us to get pricing and lead times for SKU P142CPSC.
