CRL P1 Series 316 Polished Stainless Steel 90° Corner Post Railing Kit
CRL P1 Series 316 Polished Stainless Steel 90° Corner Post Railing Kit
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# P136LPSC
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Angle
90
Base Plate Length
5 in. (127 mm)
Base Plate Thickness
3/8 in. (10 mm)
Base Plate Width
5 in. (127 mm)
Finish/Color
Polished Stainless Steel
Height
36 in. (914 mm)
Material
316 Stainless Steel
Overview
- For use with 1/2" (12 mm) to 1" (25 mm) thick panels — ideal for glass balustrade and panel infill applications
- Glass attachment fittings sold separately (purchase mounting hardware to complete glass railing installation)
- Meets or exceeds guardrail and handrail code standards for commercial and residential projects
- Top saddle supports 1-1/4" (31.8 mm) or 1-1/2" (38.1 mm) diameter Schedule 40 handrail tubing
- Standard post heights: 36" (914 mm) and 42" (1.07 m); custom heights available
- Two standard stainless finishes; custom powder coat finishes available for architectural color matching

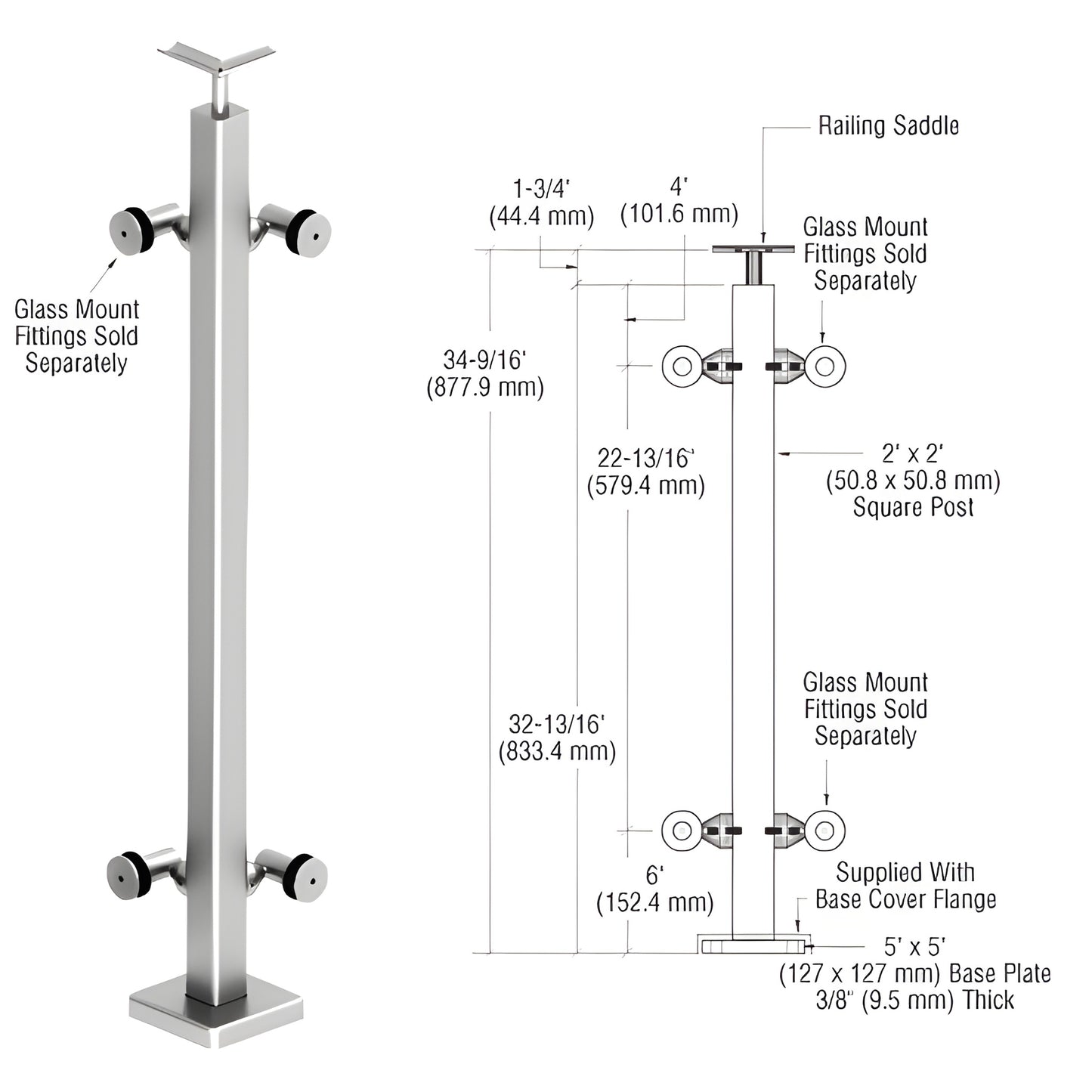

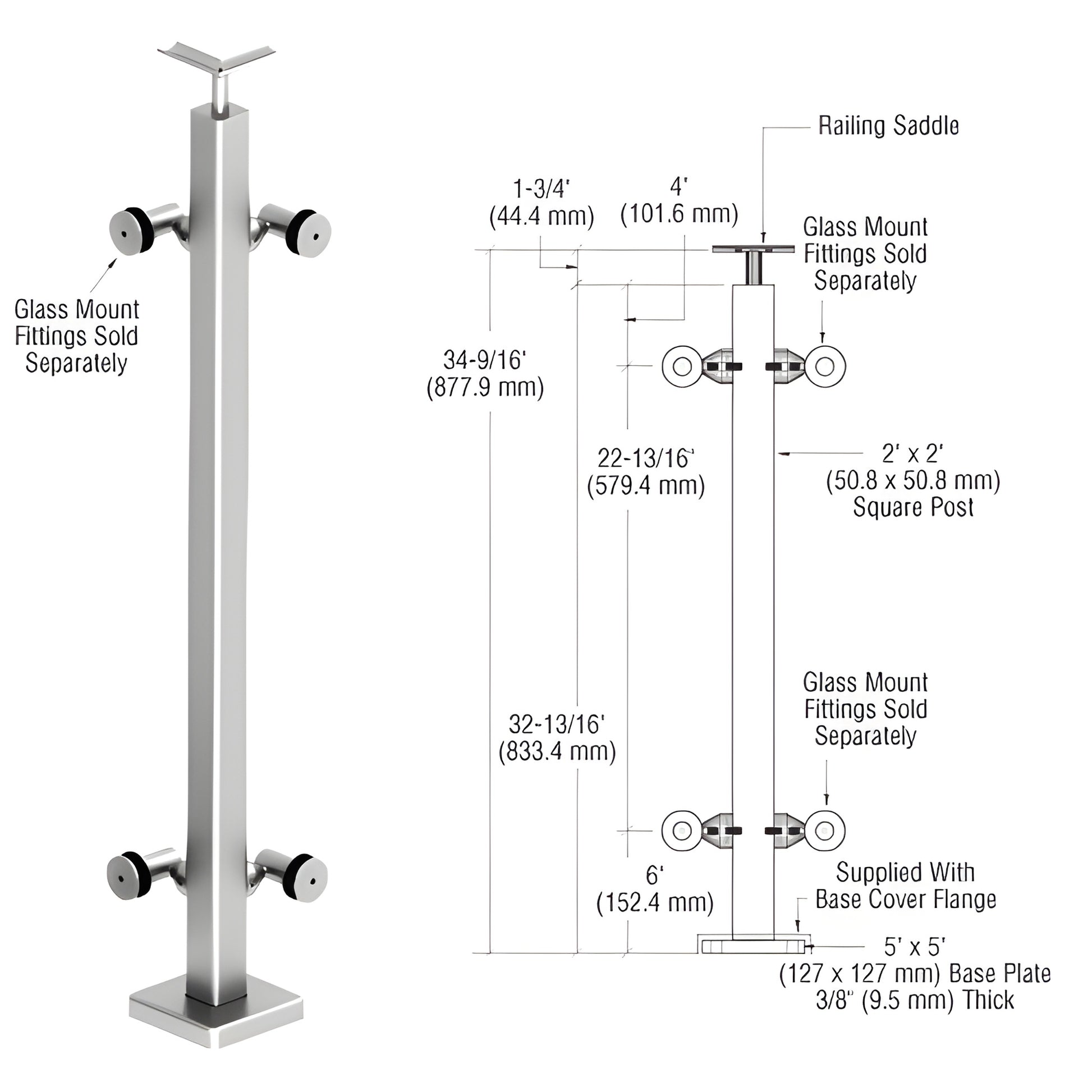

CRL P1 Surface Mounted Post Railing Kits (SKU: P136LPSC) are engineered for commercial and residential glass railing systems. These P1 post kits are manufactured from 2" (51 mm) square 316 alloy stainless steel tubing with a 3/16" (4.8 mm) wall thickness for superior strength and corrosion resistance in exterior and interior guardrail installations. Each kit includes a 5" x 5" (127 x 127 mm) base plate, base cover flange, and welded top saddle for secure top-rail attachment. For top rail fasteners specify Cat. No. PRS1032 (10-32 x 5/8" stainless screws, 50 per pack).
Product Warning:
All P-Series post kits are sold without glass attachment fittings; glass clamps and spigots must be purchased separately to complete your glass railing or balcony guardrail system.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not entirely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for maintenance guidance.
Ready to specify a P1 surface mounted post railing kit for your glass balustrade or handrail project? Contact CRL or order SKU P136LPSC today.
