CRL P1 Series Polished 316 Stainless Steel End Post Railing Kit
CRL P1 Series Polished 316 Stainless Steel End Post Railing Kit
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# P142EPSC
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Plate Length
5 in. (127 mm)
Base Plate Thickness
3/8 in. (10 mm)
Base Plate Width
5 in. (127 mm)
Finish/Color
Polished Stainless Steel
Height
42 in. (1067 mm)
Material
316 Stainless Steel
Overview
- For use with 1/2" (12 mm) to 1" (25 mm) thick panels
- Glass attachment fittings sold separately — purchase glass clamps and spigots to complete your installation
- Meets or exceeds guard rail and handrail code standards
- Top saddle supports 1-1/4" (31.8 mm) or 1-1/2" (38.1 mm) diameter Schedule 40 handrail tubing
- Standard post heights: 36" (914 mm) and 42" (1.07 m); custom heights available
- Two standard stainless finishes; custom powder coat finishes available for color-matching projects

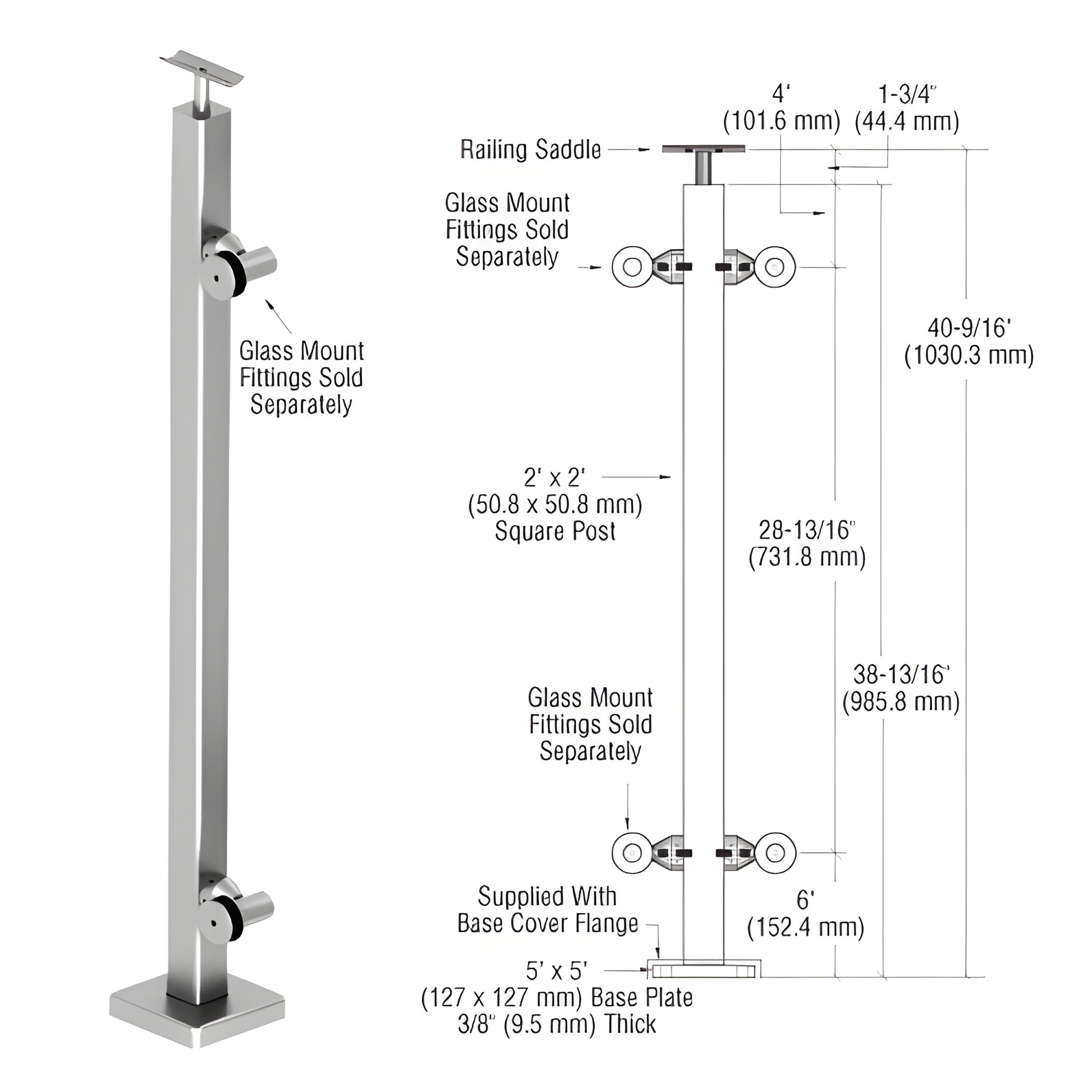

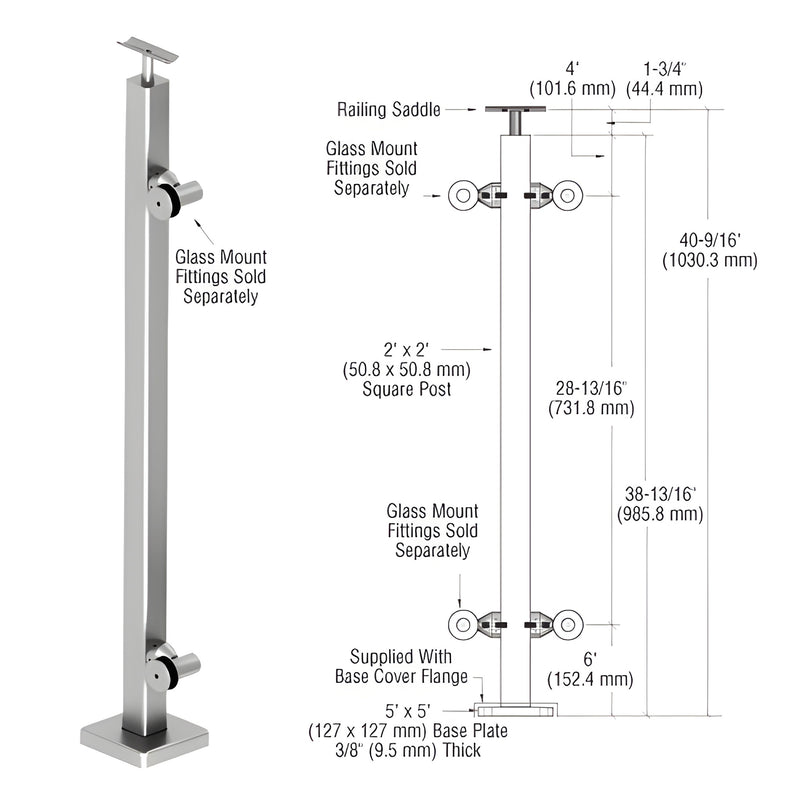

CRL P1 Post Railing Kits (SKU: P142EPSC) are engineered for commercial and residential guardrail and glass railing installations. These P1 surface mounted post railing kits are constructed from 2" (51 mm) square 316 alloy stainless steel tubing with a 3/16" (4.8 mm) wall thickness for superior corrosion resistance and structural strength. Each kit includes a 5" x 5" (127 x 127 mm) base plate, base flange cover, and a welded top saddle for secure handrail attachment. For top rail fasteners, specify Cat. No. PRS1032 (10-32" x 5/8" stainless steel screws; 50 per pack).
Product Warning:
All P-Series post kits are sold without glass attachment fittings; glass clamps, spigots, or channel fittings must be purchased separately.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not entirely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for maintenance guidance.
Order CRL P1 Surface Mounted Post Railing Kits (SKU: P142EPSC) or contact CRL for custom heights and finishes to meet your project requirements.
