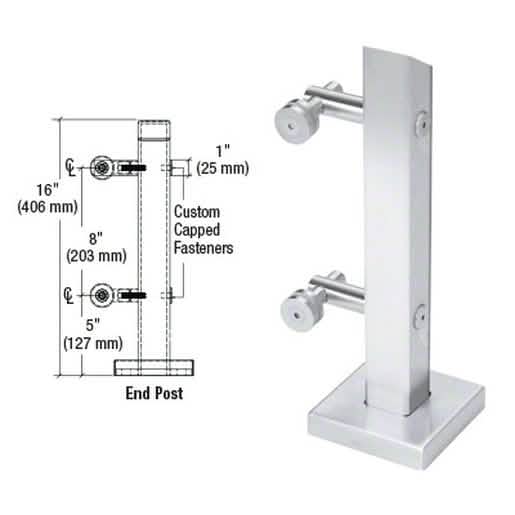

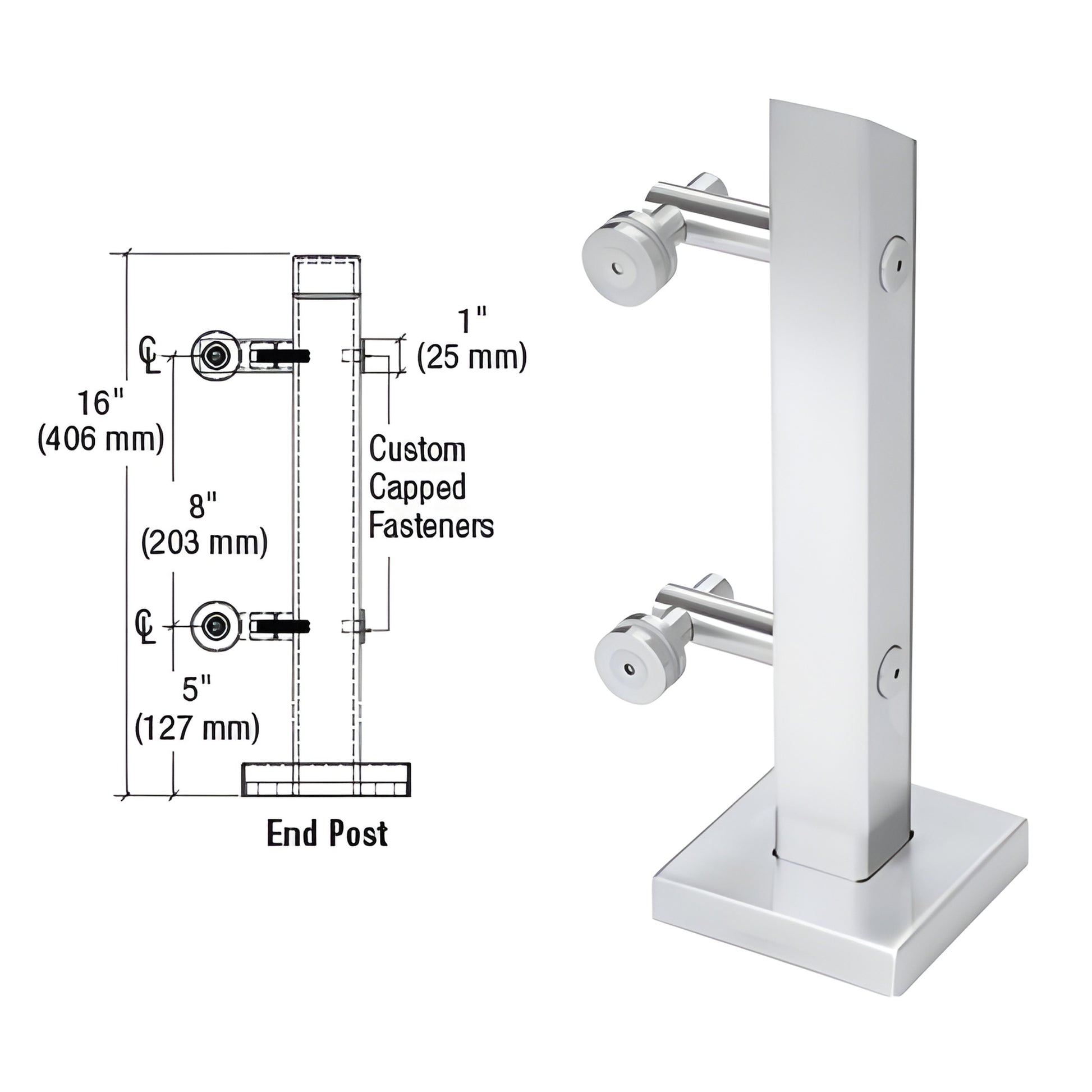

CRL 316 Polished Stainless Steel Point-Supported Glass End Post
CRL 316 Polished Stainless Steel Point-Supported Glass End Post
Regular price
$1,145.19 CAD
Regular price
Sale price
$1,145.19 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PWC1EPS
Shipping Weight: 9.68 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.68 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Plate Cover Included
Yes
Base Plate Length
5 in. (127 mm)
Base Plate Mounting Holes
4
Base Plate Thickness
3/8 in. (10 mm)
Base Plate Width
5 in. (127 mm)
Finish/Color
Polished Stainless Steel
Height
16 in. (406 mm)
Material
316 Stainless Steel
Mounting Hole Diameter
9/16 in. (14 mm)
Profile
End Post
Overview
- 316 Grade Stainless Steel mini posts — available in two architectural finishes
- Compatible with 1/2" (12 mm) monolithic tempered glass and 9/16" (13.52 mm) laminated tempered glass
- Non-handed design for universal installation
CRL Point Supported Center and End Mini Posts (SKU: PWC1EPS) are engineered for small windbreaks, pool surrounds, and glass guard rails. These compact, point-supported posts install on most mounting substrates and meet applicable safety requirements and building codes. Glass fabrication requires two 3/4" (19 mm) diameter holes per post. NOTE: Anchor bolts sold separately.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For details, see the Stainless Steel Disclaimer in the Technical References section below.
Ideal for architects, contractors, and pool deck installers seeking durable 316 stainless steel glass railing hardware. Shop PWC1EPS mini posts for secure, low-profile glass railing solutions — contact CRL or add to cart to get started.
