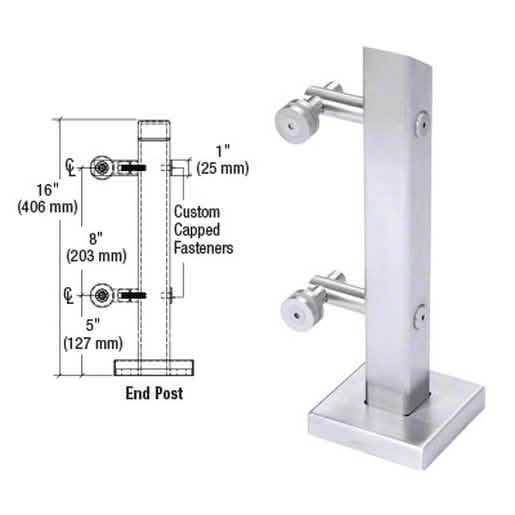

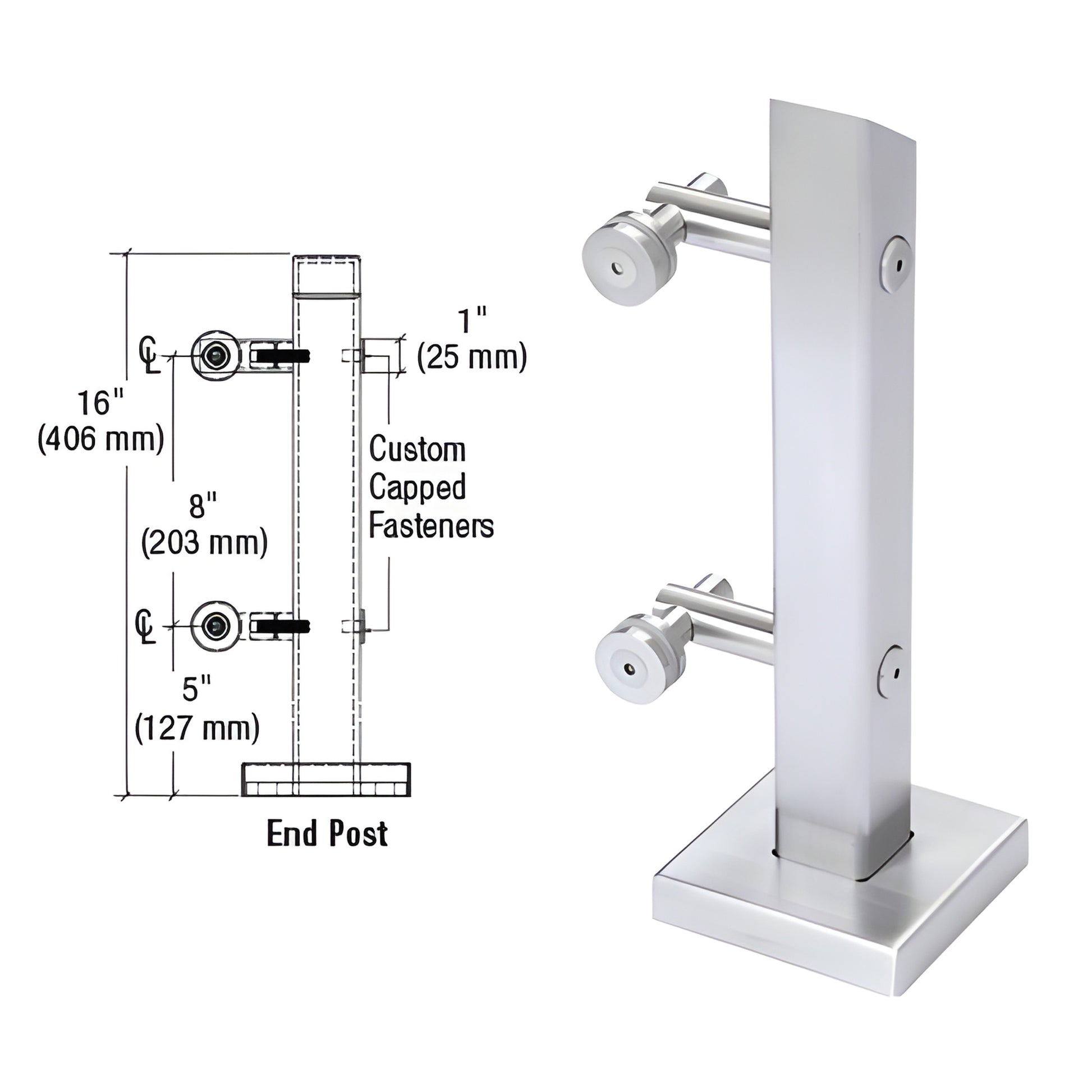

CRL 316 Brushed Stainless End Post for Point-Supported Glass Railing
CRL 316 Brushed Stainless End Post for Point-Supported Glass Railing
Regular price
$939.13 CAD
Regular price
Sale price
$939.13 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PWC1EBS
Shipping Weight: 9.68 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.68 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Plate Cover Included
Yes
Base Plate Length
5 in. (127 mm)
Base Plate Mounting Holes
4
Base Plate Thickness
3/8 in. (10 mm)
Base Plate Width
5 in. (127 mm)
Finish/Color
Brushed Stainless Steel
Height
16 in. (406 mm)
Material
316 Stainless Steel
Mounting Hole Diameter
9/16 in. (14 mm)
Profile
End Post
Overview
- 316 Grade Stainless Steel mini posts — two architectural finishes (satin and polished options available)
- For use with 1/2" (12 mm) monolithic tempered glass and 9/16" (13.52 mm) laminated tempered glass
- Non-handed design for easy field installation
CRL Point Supported Center and End Mini Posts (SKU: PWC1EBS) are engineered for small windbreaks, pool surrounds, balcony and deck guard rails. These compact, point-supported glass posts install on most mounting substrates and comply with common safety requirements and building codes. Glass must be fabricated with two 3/4" (19 mm) diameter holes per post. Anchor bolts sold separately.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for more information.
Order PWC1EBS today for durable 316 stainless steel mini posts for glass pool fences and point-supported glass railing applications.
