CRL 316 Stainless Polished 1-1/4" Dia x 1/2" Glass Standoff Base

• Available in Several Lengths
• Custom Lengths and Finishes Available
• Six Popular Decorator Finishes
• Use Monolithic Tempered Glass

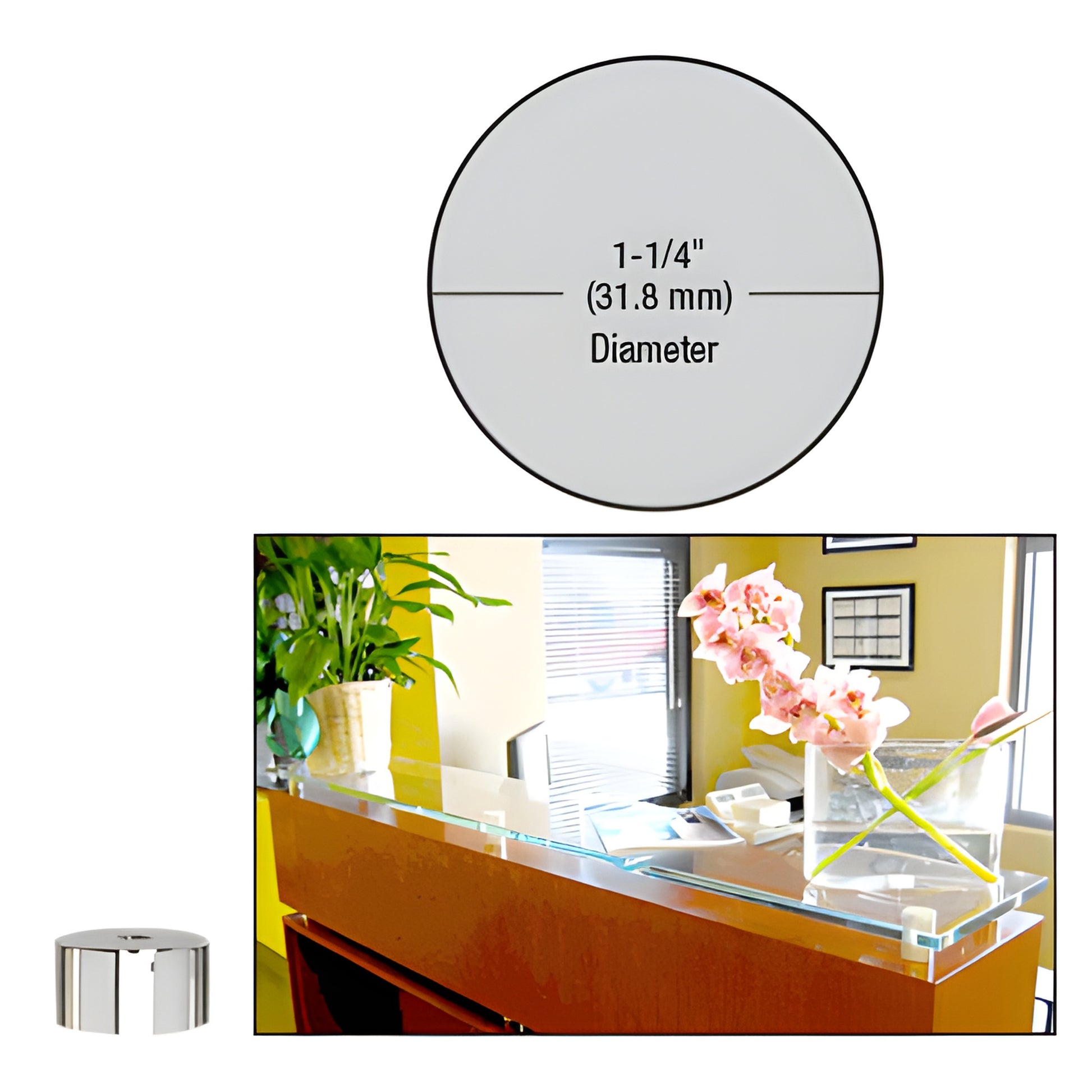

With CRL's 1-1/4" Diameter Standoff System you can specify a versatile architectural standoff solution for retail, commercial, and residential projects. The 1-1/4" (32 mm) standoffs are offered in multiple base and cap combinations so you can create contemporary looks for glass, plastic, or wood panels by drilling 5/8" (16 mm) holes and polishing the panel edges. Each stock 1-1/4" (32 mm) round or square standoff base is drilled and tapped 5/16"-18 through the complete length. Custom lengths and finishes are available—request a quote from our Technical Sales Department for project-specific options.

Available in many distinctive finishes, CRL standoffs combine high-tech design with durable appearance and can be used as architectural glass standoffs or commercial display standoffs. The system integrates with CRL Edge Grips and Swivel Fittings for increased versatility. 1-1/4" (32 mm) Standoff Bases are stocked in eight lengths, from 1/4" to 6" (6 to 152.4 mm). Matching Cap Assemblies are ordered separately.

CRL also offers a complete range of Mounting Accessories in any quantity needed so you avoid leftover components. For installation techniques or design assistance using CRL standoffs, contact the CRL Technical Sales Department.

NOTE: Minimum material thickness for use with 1-1/4" (32 mm) Standoff Bases is 1/4" (6 mm) when used with Standard and Low Profile Caps, and 3/8" (10 mm) when used with Flush Mount Cap.

Product Warning:

Due to diverse applications, weight limitations for standoff systems depend on wall or substrate anchoring and material strengths. Verify anchoring and substrate capacity for your architectural or tempered glass standoff installation.
