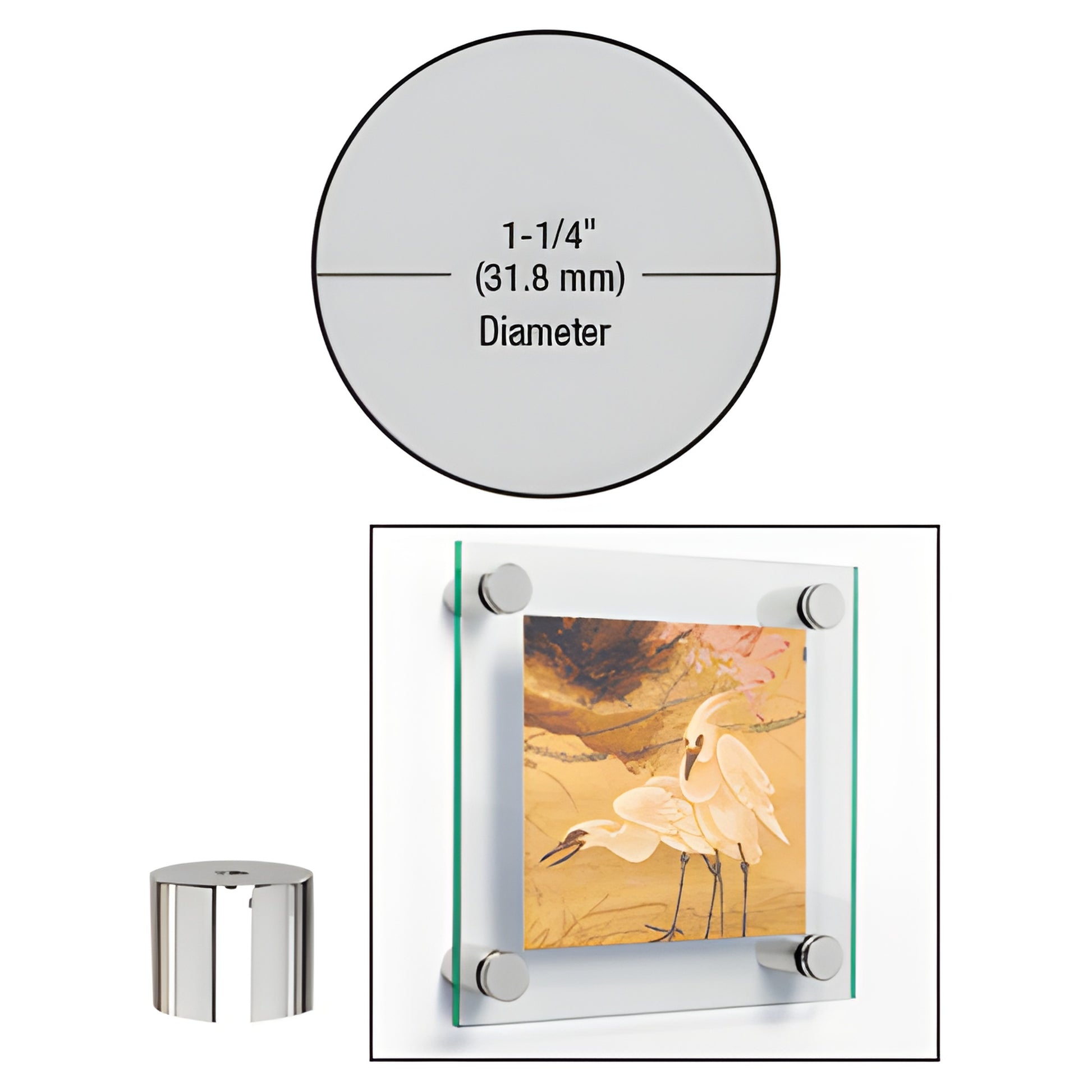

CRL 316 Stainless Steel Glass Standoff 1-1/4" Dia x 1" Polished

• Available in Several Lengths
• Custom Lengths and Finishes Available
• Six Popular Decorator Finishes
• Use Monolithic Tempered Glass

With CRL's 1-1/4" Diameter Standoff System (SKU: S0B1141PS) you can specify a versatile standoff mounting solution for glass panels, retail signage, commercial façades, or residential partitions. The 1-1/4" (32 mm) standoff system accepts multiple base and cap styles—round or square—and lets you create contemporary looks by drilling 5/8" (16 mm) holes in glass, plastic, or wood and polishing the edges. Each stock 1-1/4" (32 mm) round or square standoff base is drilled and tapped 5/16"-18 through the full length. Custom lengths and finishes are available; request a quote from our Technical Sales Department.

Available in distinctive decorator finishes, CRL Standoffs pair high-tech design with durable appearance. The system is configurable with CRL Edge Grips and Swivel Fittings for maximum versatility. Bases come in eight lengths from 1/4" to 6" (6 to 152.4 mm). Matching Cap Assemblies are ordered separately.

The CRL Standoff System includes a full range of Mounting Accessories available in any quantity so you can avoid leftover components. For installation techniques or design assistance using CRL standoffs, contact the CRL Technical Sales Department.

NOTE: Minimum material thickness for use with 1-1/4" (32 mm) diameter standoff bases is 1/4" (6 mm) when used with Standard and Low Profile Caps, and 3/8" (10 mm) when used with the Flush Mount Cap.

Product Warning:

Weight capacity depends on wall or substrate anchoring and material strength due to the wide diversity of applications—verify anchoring and substrate ratings for your project.
