CRL Polished Stainless 36" Steel Square Glass Clamp 90 Degree Corner Square Post Railing Kit
Item # SPS36LPS
$982.75
CAD
Finish (2)
-
Brushed Stainless Steel -
Polished Stainless Steel
Overview
| SKU | SPS36LPS |
|---|---|
| Sold As | 1 Each |
| Base Plate Cover Included | Yes |
| Base Plate Length | 5 in. (127 mm) |
| Base Plate Mounting Holes | 4 |
| Base Plate Thickness | 3/8 in. (10 mm) |
| Base Plate Width | 5 in. (127 mm) |
| Finish/Color | Polished Stainless Steel |
| Material | Stainless Steel |
| Mounting Hole Diameter | 9/16 in. (14 mm) |
Description
- 2" (51 mm) Square Posts
- Square or Round Z-Series Glass Clamps
- Ready-to-Install for Both Commercial and Residential Applications
- Designed to Accept 1/2" (12 mm) Tempered Glass
- Standard Post Heights are 36" (914 mm) and 42" (1.07 mm)
- Custom Post Heights Also Available
- Two Standard Stainless Finishes
- Custom Powder Paint Finishes Also Available

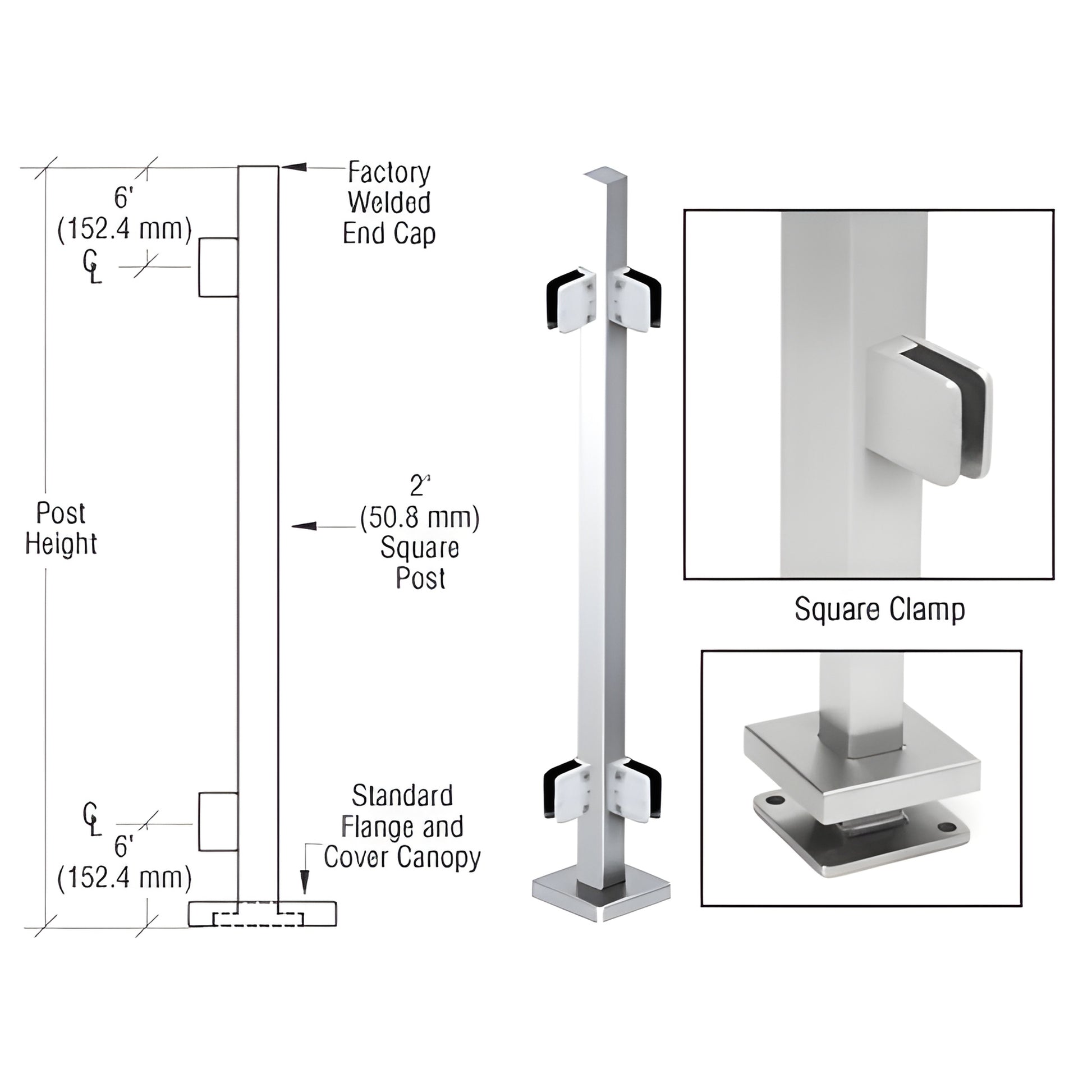

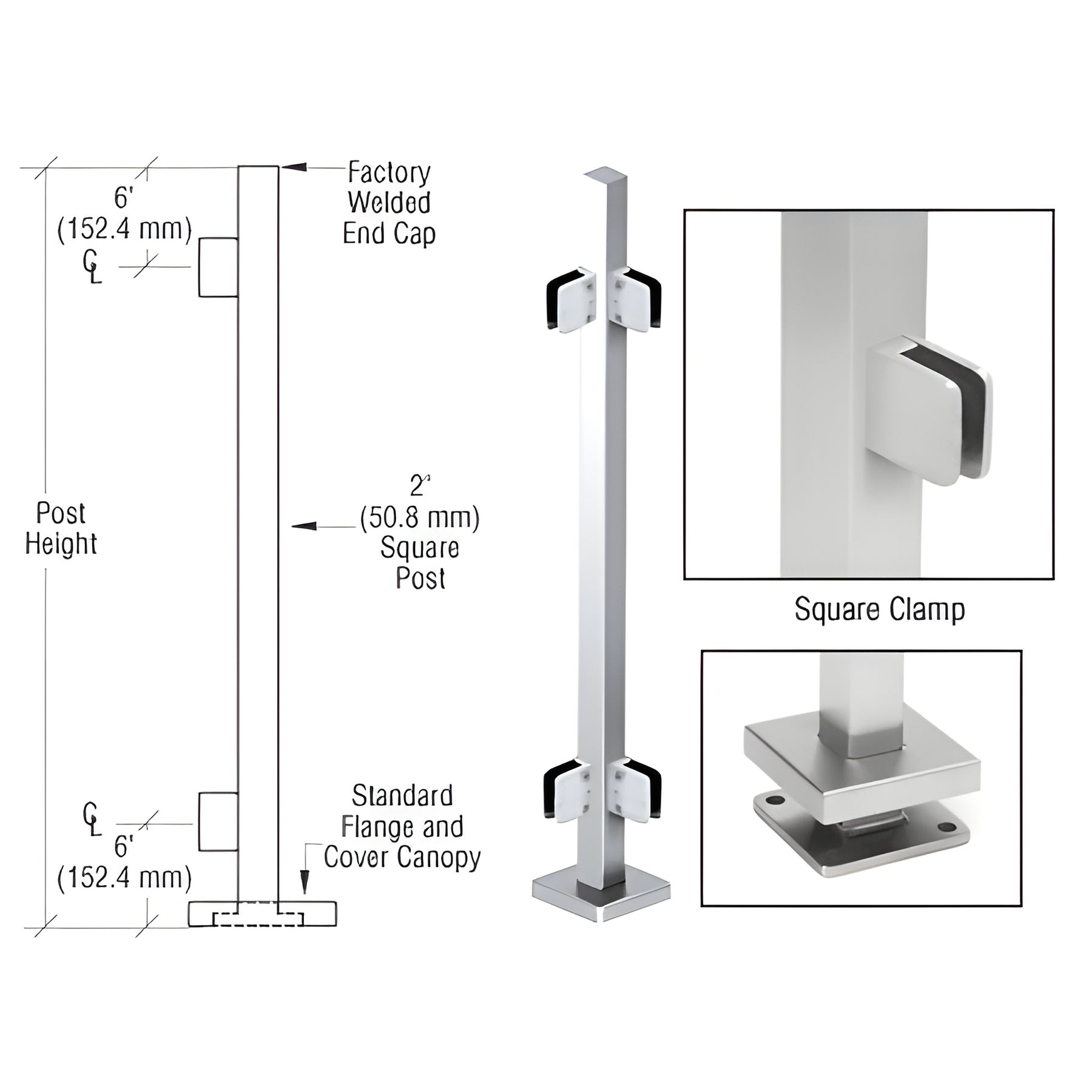

CRL's Glass Clamp Square Post Kits are manufactured from Schedule 40 2" (51 mm) Stainless Steel Tubing. Kits are supplied complete with a Base Plate, Base Plate Cover Canopy, Welded Top Cap, and Z-Series Glass Clamps factory attached to the Post.
NOTE: CRL's Glass Clamp Post Kits are not designed for guard rail or hand rail applications.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.Specifications
