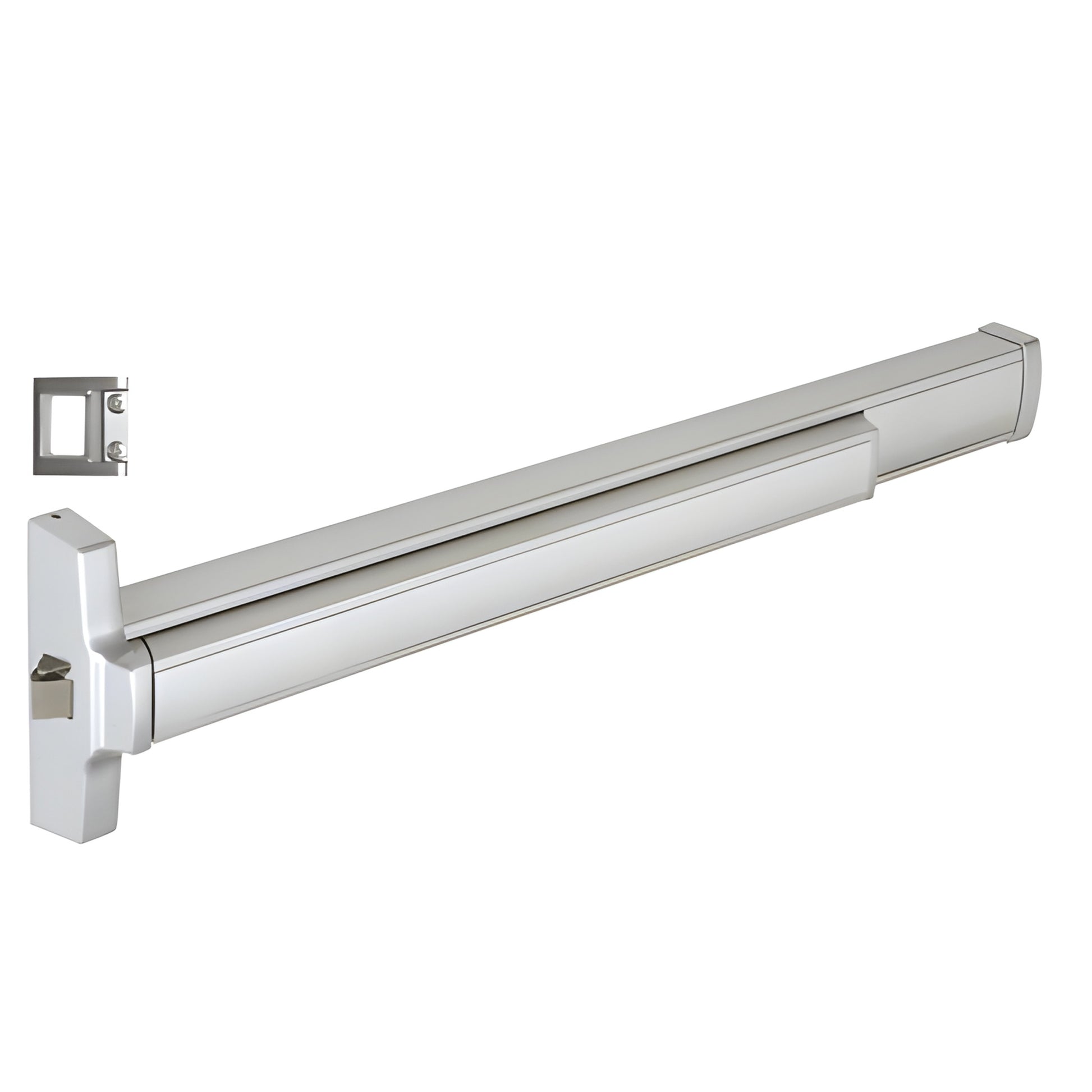

CRL 36" Jackson® Model 2095 Grade 1 Rim Latch Panic Exit Device Left Hand Reverse Bevel "S" Strike Fits 32" to 36" Wide Door Satin Aluminum Finish
Item # 312095LS3628
$819.42
CAD
Finish (2)
-
Dark Bronze -
Satin Aluminum
Overview
| SKU | 312095LS3628 |
|---|---|
| Sold As | 1 Each |
| Certification | ANSI 156.3, Grade 1 |
| Door Width | 36 in. (914.4 mm) |
| Finish/Color | Satin Aluminum |
| Handing | Left Hand Reverse Bevel |
| Series | Jackson 2095 Rim Panics |
| Type | Rim-S-Strike |
Description
- Designed for Use with Narrow, Medium and Wide Stile Aluminum Doors, As Well As Wood and Hollow Metal Doors
- Complies with ANSI 156.3, Grade 1 Specifications
- Concealed Fastening for Added Security
- Can Be Cut to Size
CRL Jackson® Model 2095 Rim Latch Panic Devices are UL Listed Certified ANSI 156.3 Grade 1, and manufactured in the Jackson® tradition of high quality and durability. Suitable for use with narrow, medium and wide stile aluminum doors, as well as wood and hollow metal doors, these devices are handed - not reversible, and feature concealed easy-to-use push button dogging, a 3/4" (19 mm) throw deadlocking latch bolt, "Soft Touch" smooth quiet action push pad, and quick and easy installation. Available in Dark Bronze and Satin Aluminum anodized finish, this device comes standard with Type 'C' Strike #302436628, and may be ordered with optional Type 'S' Strike #302501628. Keyed entry may be provided by ordering and installing a standard Rim Cylinder such as DL911SCKDDU, or a Jackson® Outside Lever Trim Model 9500LV using a 1" Mortise Cylinder (sold separately). For wood door application order optional Wood Door Mounting Kit #302521. For double door applications use Jackson® Mullion such as 3089620958313.
SPECIFICATIONS:
2095 Rim Device
MATERIALS:
Plated Steel
Specifications
Installation Instructions
