CRL Jackson 2095 Grade 1 Rim Latch Panic Exit Bar Right-Hand 32-36" Dark Bronze
CRL Jackson 2095 Grade 1 Rim Latch Panic Exit Bar Right-Hand 32-36" Dark Bronze
Regular price
$933.92 CAD
Regular price
Sale price
$933.92 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 312095RS3313
Shipping Weight: 9.6 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.6 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Certification
ANSI 156.3, Grade 1
Finish/Color
Dark Bronze
Handing
Right Hand Reverse Bevel
Series
Jackson 2095 Rim Panics
Size
36
Type
Rim-S-Strike
Overview
- Designed for use with narrow, medium and wide stile aluminum doors, as well as wood and hollow metal doors
- Complies with ANSI A156.3 Grade 1 specifications
- Concealed fastening for added security
- Can be cut to size for retrofit installations

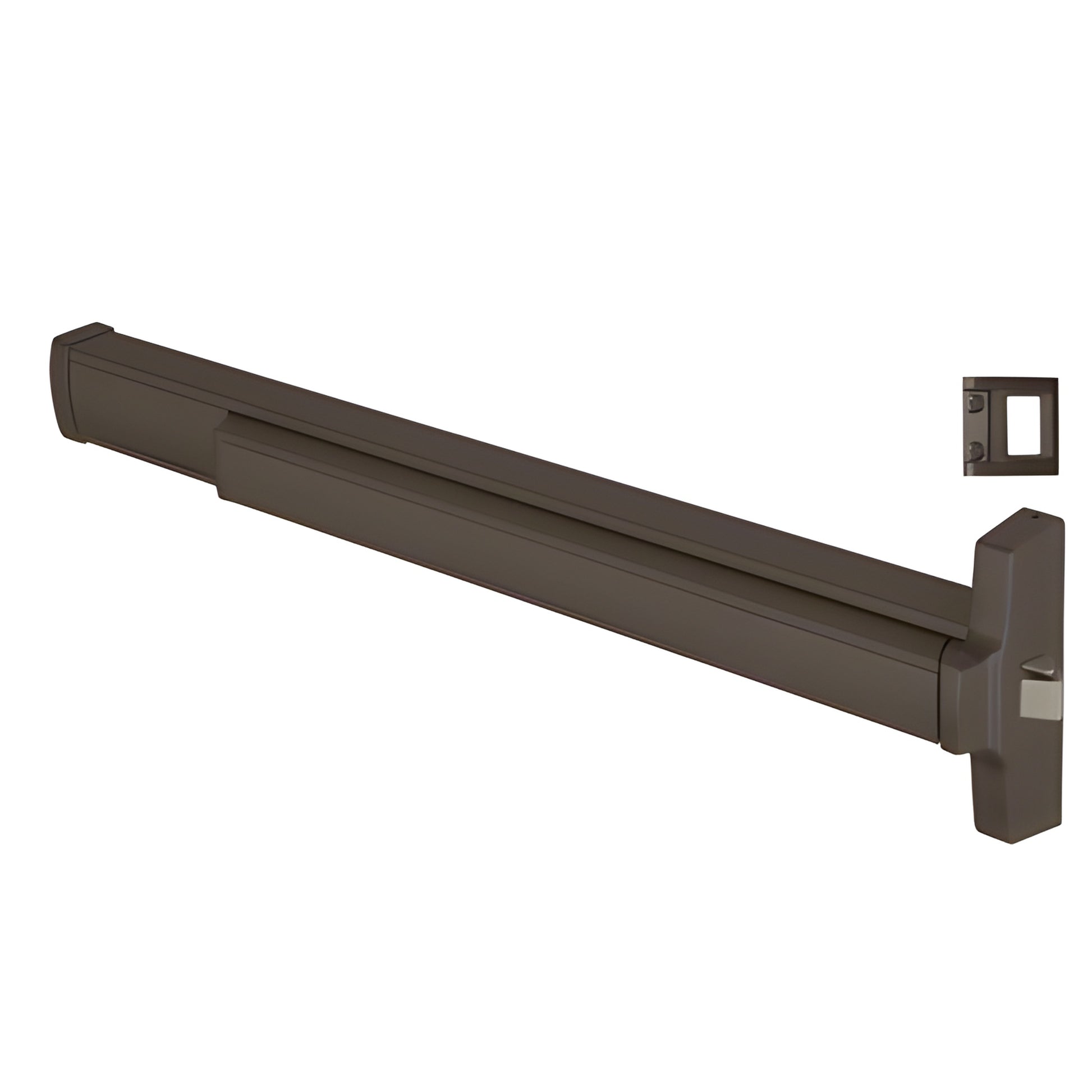

CRL Jackson® Model 2095 Rim Latch Panic Device (SKU: 312095RS3313)
UL Listed and ANSI A156.3 Grade 1 certified, the Jackson 2095 rim latch panic device delivers durable, quiet exit hardware for commercial aluminum, wood, or hollow metal doors. Handed (not reversible) with a "Soft Touch" push pad, the device features concealed push-button dogging, a 3/4" (19 mm) throw deadlocking latch bolt, and quick, straightforward installation — ideal for building retrofit and new construction projects requiring reliable rim latch panic hardware.
Finishes & accessories: Available in Dark Bronze and Satin Aluminum anodized finishes. Ships standard with Type 'C' Strike #302436628; optional Type 'S' Strike #302501628 is available. For keyed entry, order a standard rim cylinder such as DL911SCKDDU or Jackson Outside Lever Trim Model 9500LV with a 1" mortise cylinder (cylinder sold separately). For wood doors order Wood Door Mounting Kit #302521. For double door applications use Jackson mullion 3089620958313.
SPECIFICATIONS:
- Model: 2095 Rim Device
- Requires rim cylinder for keyed entry (not included)
- Cylinder mounting pad not required
- Latch throw: 3/4" (19 mm) deadlocking latch
MATERIALS:
- Body and push pad: extruded aluminum
- Mechanical components: stainless and hardened plated steel
- Latch and strikes: sintered steel
Order the Jackson 2095 rim latch panic device (SKU: 312095RS3313) for a Grade 1, UL-listed exit solution — contact us to buy or request a quote.
