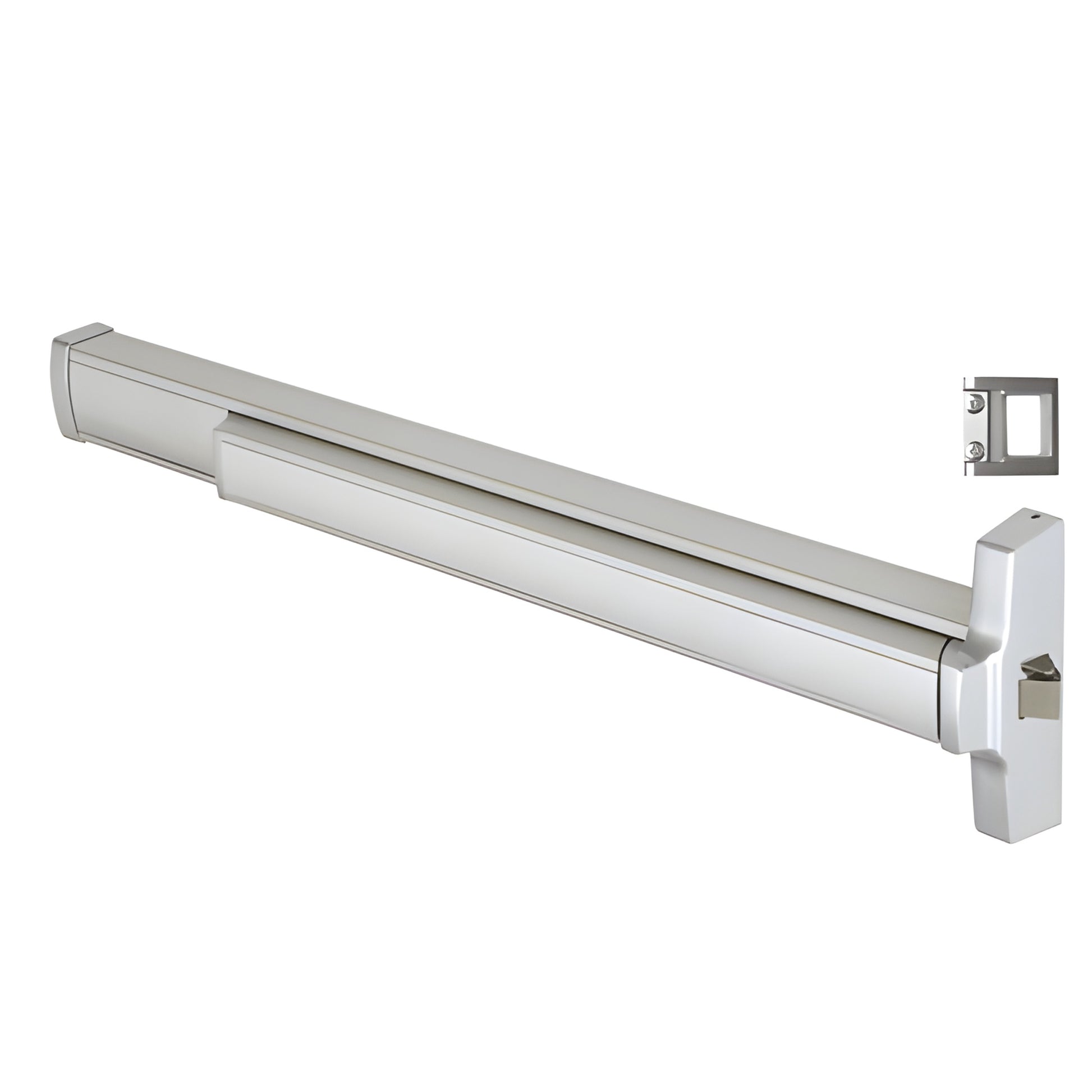

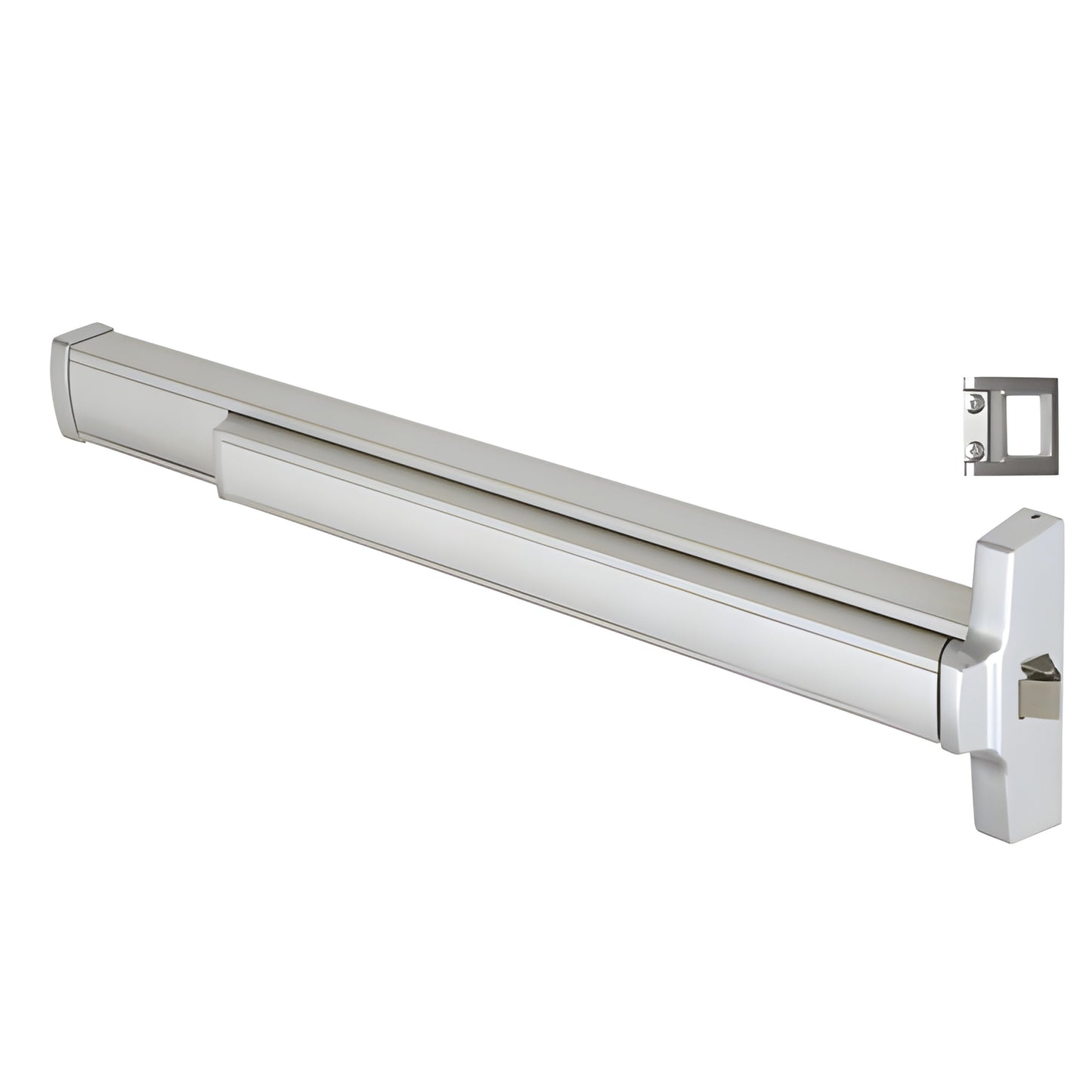

CRL Jackson® 36" Grade 1 Rim Latch Panic Exit RH Fits 32–36"

• Designed for use with narrow, medium, and wide stile aluminum doors, as well as wood and hollow metal doors
• UL Listed; complies with ANSI 156.3, Grade 1 specifications
• Concealed fastening for added security
• Can be cut to size for custom door widths

CRL Jackson® Model 2095 Rim Latch Panic Devices (SKU: 312095RS3628) are UL Listed and built to ANSI 156.3 Grade 1 standards. Manufactured to Jackson® quality for long-lasting performance, the 2095 is ideal for commercial aluminum door panic hardware applications. These handed (non-reversible) rim latch panic devices feature:

• Push-button dogging with concealed fasteners for tamper resistance
• 3/4" (19 mm) throw deadlocking latch bolt for secure positive latching
• "Soft Touch" smooth, quiet-action push pad for easy egress
• Quick and easy installation; can be field-cut to size

Available finishes: Dark Bronze and Satin Aluminum anodized. Comes standard with Type 'C' Strike #302436628; optional Type "S" Strike #302501628 available. Keyed entry options: install a standard rim cylinder (e.g., DL911SCKDDU) or use Jackson® Outside Lever Trim Model 9500LV with a 1" mortise cylinder (sold separately). For wood doors order Wood Door Mounting Kit #302521. For double door installations use Jackson® Mullion (e.g., 3089620958313).

SPECIFICATIONS

• Model: 2095 Rim Device
• Requires rim cylinder for keyed entry (cylinder not included)
• Cylinder mounting pad not required
• 3/4" (19 mm) throw deadlocking latch

MATERIALS

• Body and push pad: extruded aluminum
• Mechanical components: stainless and hardened plated steel
• Latch and strikes: sintered steel

For a secure, ANSI Grade 1 rim latch panic device for aluminum and wood doors, choose the CRL Jackson 2095. Order now or contact Customer Service for assistance.
