Product Details
- Super Adhesive, High Bonding Strength Tape Can Replace Rivets, Screws, Spot Welds, and Liquid Adhesives
- Bonds to Many Substrates
- Can be Used for Interior or Exterior Industrial Applications
- Foam: Closed Cell Acrylic
- Release liner: Paper
- Color: White
- Thickness: .045" (1.1 mm)
- Peel Adhesion to stainless steel: Excellent - 25 lb./inch
- Tensile Adhesion to aluminum: Very Good - 140 psi
- Dynamic Shear Adhesion to Stainless Steel: Good - 80 psi Static Shear Adhesion:
- At Room Temperature - Very Good
- At 200 Degrees Fahrenheit (93 degrees Celsius) - Good Shelf Life:
- 12 Months at Room Temperature of 70 Degrees Fahrenheit (16 Degrees Celsius)

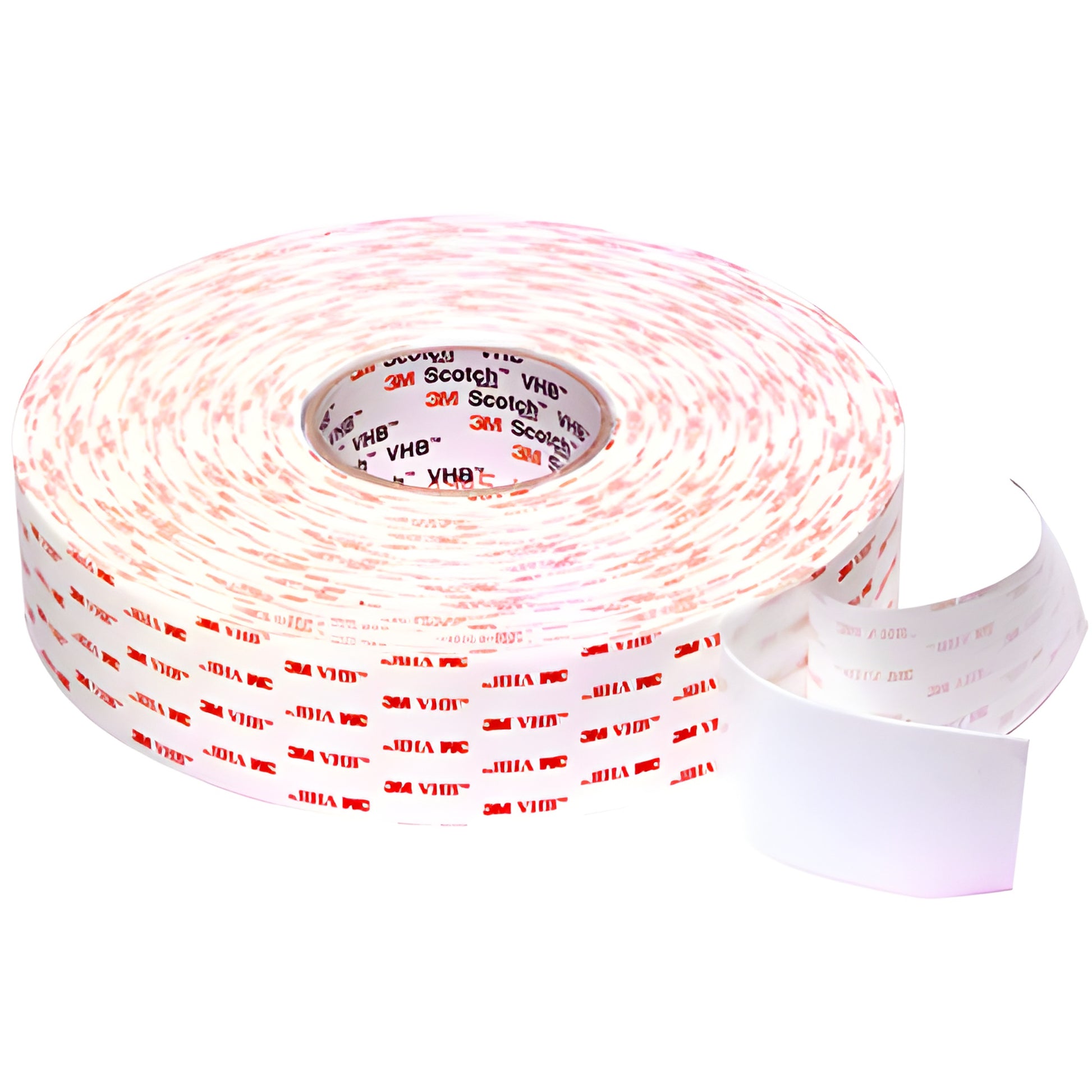

CRL 3M® VHB™ Tape can replace mechanical fasteners such as rivets, spot welds, screws, and liquid adhesives. VHB™ Tape has successfully replaced all these and other fasteners in various manufacturing uses. It bonds to many substrates, and can be used for interior or exterior industrial applications. VHB™ Tape eliminates drilling for mechanical fasteners, and mixing of liquid adhesives. It applies neatly and easily, conforms to irregular surfaces, and allows concealment in use. Excellent resistance to ultraviolet light, solvents, moisture and plasticizer migration.
Best adhesion is achieved when applied at temperatures above 70 degrees Fahrenheit (16 degrees Celsius) with adequate initial hand or roller pressure. Also, when surfaces are cleaned with a solution of isopropyl alcohol and water. CRL 3M® VHB Tape achieves 50 percent strength in 20 minutes, 90 percent strength in 24 hours and full strength in 72 hours.
SPECIFICATIONS:
Foam: Closed Cell Acrylic
Release liner: Paper
Color: White
Thickness: .045" (1.1 mm)
Peel Adhesion to stainless steel: Excellent - 25 lb./inch
Tensile Adhesion to aluminum: Very Good - 140 psi
Dynamic Shear Adhesion to Stainless Steel: Good - 80 psi
Static Shear Adhesion:
At Room Temperature - Very Good
At 200 Degrees Fahrenheit (93 degrees Celsius) - Good
Shelf Life:
12 Months at Room Temperature of 70 Degrees Fahrenheit (16 Degrees Celsius)
