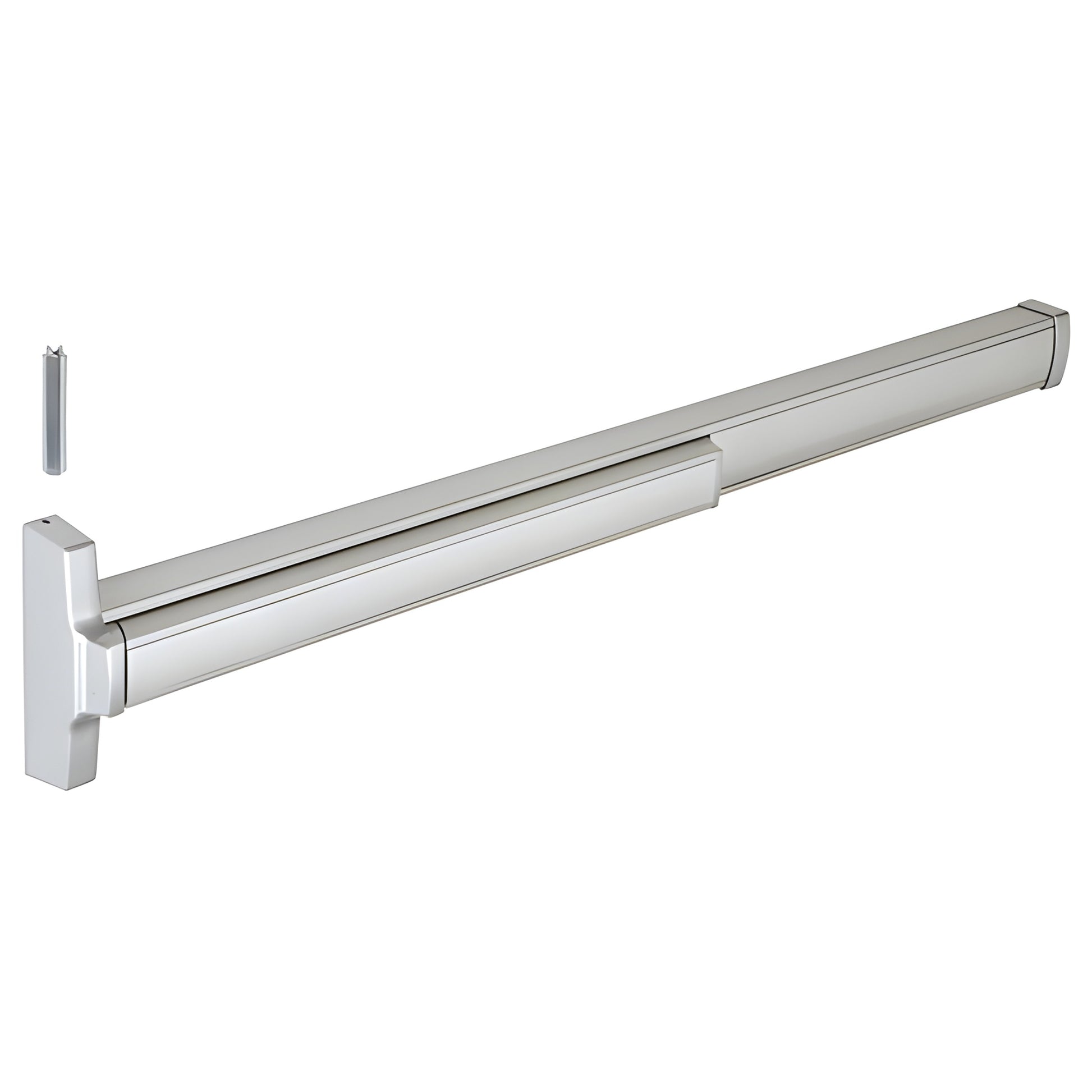

CRL 48" Jackson® Model 2086 Concealed Vertical Rod Panic Exit Device Left Hand Reverse Bevel Fits 4/0 x 7/0 Door Satin Aluminum Finish
CRL 48" Jackson® Model 2086 Concealed Vertical Rod Panic Exit Device Left Hand Reverse Bevel Fits 4/0 x 7/0 Door Satin Aluminum Finish
Regular price
$885.03 CAD
Regular price
Sale price
$885.03 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 312086L47628
Shipping Weight: 11.38 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 11.38 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Brand | Jackson |
| Certification ANSI/BHMA | 156.3 |
| Door Height 84 in. | (2133.6 mm) |
| Door Thickness 1-3/4 in. | (44.5 mm) |
| Door Width 48 in. | (1219.2 mm) |
| Finish/Color | Aluminum |
| Handing | Left Hand Reverse Bevel (LHR) |
| Includes | Mounting Hardware |
| Material | - End Cap Aluminum |
| Material | - Housing Aluminum |
| Material | - Latch & Strike Sintered Steel |
| Material | - Mechanical Components Stainless and Hardened Plated Steel |
| Minimum Stile Width 1-3/4 in. | (44.5 mm) |
| Model | 2086 |
| Panic Bar Base Height 2-7/8 in. | (73 mm) |
| Panic Bar Projection 3 in. | (76.2 mm) |
| Panic Bar Width Net 46-1/2 in. | (1181.1 mm) |
| Panic | Dogging Push Button |
| Panic Head Height 7-5/16 in. | (185.7 mm) |
| Panic | Type Concealed Vertical Rods Top Bolt |
| Push Pad Width 23-1/2 in. | (596.9 mm) |
| Recommended | Door Type Aluminum Narrow, Medium, Wide Stile, Hollow Metal |
| Series | 20 |
| Tall Door Extention Rods | 301347301348 |
| U | L Listed Yes |
Overview
The CRL Jackson® Model 2086 Concealed Vertical Rod Panic Exit Devices are UL Listed and meet ANSI 156.3 Grade 1 specifications, ensuring top-notch security and durability.
Designed for aluminum, wood, or hollow metal doors, these exit devices feature concealed fastening, dual-point hex bolt latching, and a smooth "Soft Touch" push pad for quiet operation.
Available in Dark Bronze and Satin Aluminum finishes, they fit doors up to 48 inches wide and can be cut to size for a custom fit.
Enhance security with optional Cylinder Dogging and keyed entry using compatible mortise cylinders and lever trims.
For doors over 84 inches, additional top rod extenders are available.
Designed for aluminum, wood, or hollow metal doors, these exit devices feature concealed fastening, dual-point hex bolt latching, and a smooth "Soft Touch" push pad for quiet operation.
Available in Dark Bronze and Satin Aluminum finishes, they fit doors up to 48 inches wide and can be cut to size for a custom fit.
Enhance security with optional Cylinder Dogging and keyed entry using compatible mortise cylinders and lever trims.
For doors over 84 inches, additional top rod extenders are available.
