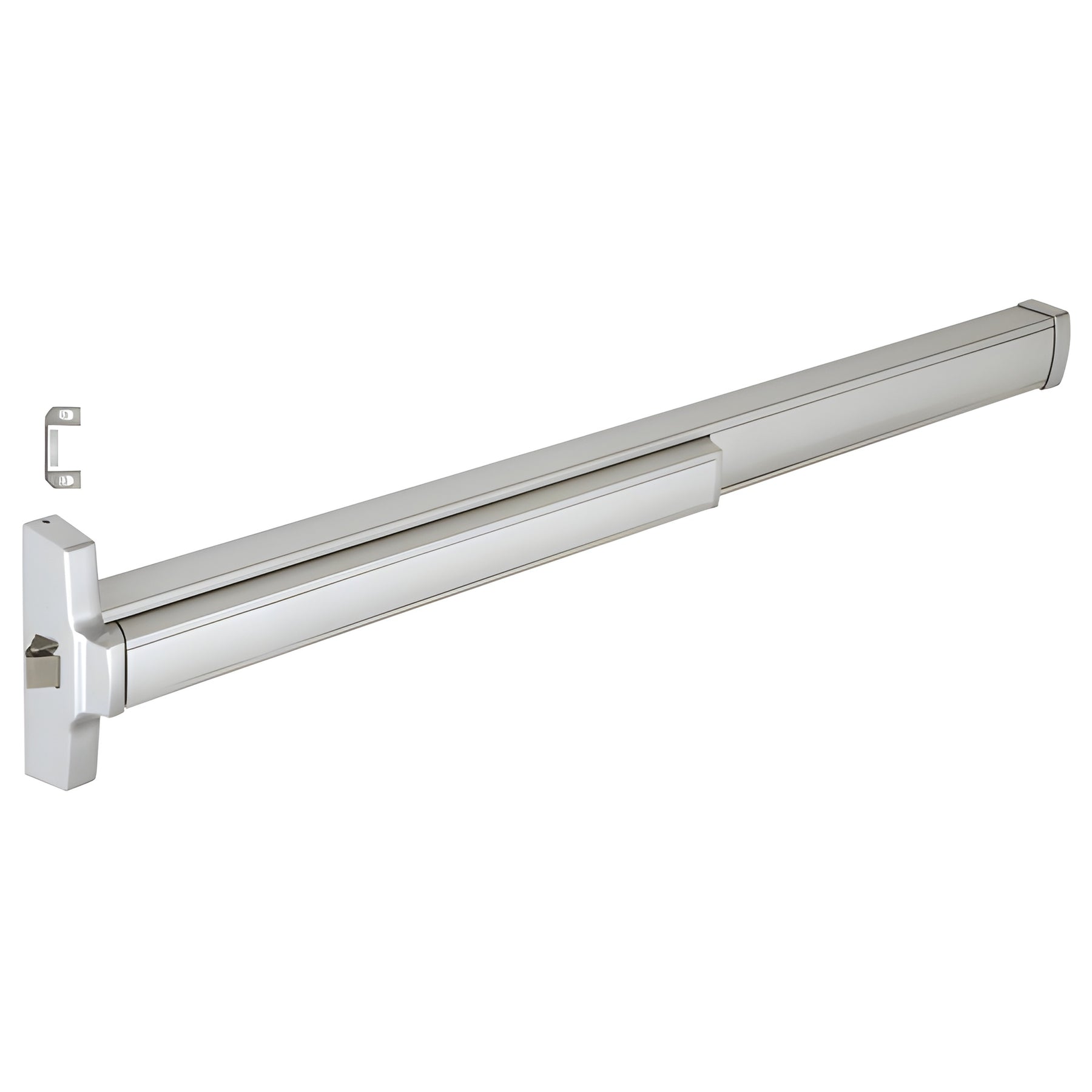

CRL JacksonĀ® 2095 48" Rim Latch Panic Exit G1 LH Rev Bevel Aluminum
CRL JacksonĀ® 2095 48" Rim Latch Panic Exit G1 LH Rev Bevel Aluminum
Regular price
$986.33 CAD
Regular price
Sale price
$986.33 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 312095LC4628
Shipping Weight: 9.2 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.2 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Brand
Jackson
Certification
ANSI/BHMA 156.3
Door Thickness
1-3/4 in. (44.5 mm)
Door Width
48 in. (1219.2 mm)
Finish/Color
Aluminum
Handing
Left Hand Reverse Bevel (LHR)
Includes
Mounting Hardware
Material - End Cap
Aluminum
Material - Housing
Aluminum
Material - Latch & Strike
Sintered Steel
Material - Mechanical Components
Stainless and Hardened Plated Steel
Minimum Stile Width
1-3/4 in. (44.5 mm)
Model
2095
Panic Bar Base Height
2-7/8 in. (73 mm)
Panic Bar Projection
3 in. (76.2 mm)
Panic Bar Width Net
46-1/2 in. (1181.1 mm)
Panic Dogging
Push Button
Panic Head Height
7-5/16 in. (185.7 mm)
Panic Type
Rim
Push Pad Width
23.5 in. (596.9 mm)
Recommended Door Type
Aluminum Narrow,Medium,Wide Stile, Wood,Hollow Metal
Replacement Parts
DL911SCKDA,DL2170SCKDA,302989628
Series
20
UL Listed
Yes
Overview
- Designed for narrow, medium and wide stile aluminum doors, and compatible with wood and hollow metal doors
- Meets ANSI 156.3, Grade 1 ā UL Listed rim panic device for commercial doors
- Concealed fastening for added security
- Cut-to-size capability for custom door applications
CRL JacksonĀ® Model 2095 Rim Latch Panic Devices are UL Listed and built to ANSI 156.3 Grade 1 standards. Manufactured in the JacksonĀ® tradition for durability and attractive appearance, the 2095 is a high-performance rim panic device suited for commercial aluminum, wood, and hollow metal doors. This handed (non-reversible) unit features concealed push-button dogging, a 3/4" (19 mm) throw deadlocking latch bolt, a "Soft Touch" smooth quiet action push pad, and straightforward installation.
Available finishes: Dark Bronze and Satin Aluminum anodized. Standard with Type 'C' Strike #302436628; optional Type 'S' Strike #302501628. For keyed entry, order a standard rim cylinder (e.g., DL911SCKDA) or JacksonĀ® Outside Lever Trim Model 9500LV using a 1" mortise cylinder (sold separately). For wood doors, order Wood Door Mounting Kit #302521. For double door installations use with JacksonĀ® Mullion 3089620958313.
SPECIFICATIONS
- Model: 2095 Rim Device
- Requires rim cylinder for keyed entry
- Cylinder mounting pad not required
- 3/4" (19 mm) throw deadlocking latch
MATERIALS
- Body and push pad: Extruded aluminum
- Mechanical components: Stainless and hardened plated steel
- Latch and strikes: Sintered steel
SKU: 312095LC4628
Reliable ANSI 156.3 Grade 1 rim panic hardware for commercial aluminum and wood doors ā order Model 2095 today.
