CRL Jackson® 48" 2095 Grade 1 Panic Bar Rim Latch LH Rev Bevel Bronze
CRL Jackson® 48" 2095 Grade 1 Panic Bar Rim Latch LH Rev Bevel Bronze
Regular price
$986.33 CAD
Regular price
Sale price
$986.33 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 312095LC4313
Shipping Weight: 9.2 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.2 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Brand
Jackson
Certification
ANSI/BHMA 156.3
Door Thickness
1-3/4 in. (44.5 mm)
Door Width
48 in. (1219.2 mm)
Finish/Color
Dark Bronze
Handing
Left Hand Reverse Bevel (LHR)
Includes
Mounting Hardware
Material - End Cap
Aluminum
Material - Housing
Aluminum
Material - Latch & Strike
Sintered Steel
Material - Mechanical Components
Stainless and Hardened Plated Steel
Minimum Stile Width
1-3/4 in. (44.5 mm)
Model
2095
Panic Bar Base Height
2-7/8 in. (73 mm)
Panic Bar Projection
3 in. (76.2 mm)
Panic Bar Width Net
46-1/2 in. (1181.1 mm)
Panic Dogging
Push Button
Panic Head Height
7-5/16 in. (185.7 mm)
Panic Type
Rim
Push Pad Width
23.5 in. (596.9 mm)
Recommended Door Type
Aluminum Narrow,Medium,Wide Stile, Wood,Hollow Metal
Replacement Parts
DL911SCKDDU,DL2170SCKDDU,302989313
Series
20
UL Listed
Yes
Overview
- Designed for use with narrow, medium and wide stile aluminum doors, as well as wood and hollow metal doors
- Complies with ANSI 156.3, Grade 1 specifications
- Concealed fastening for added security
- Can be cut to size for retrofit or custom applications
CRL Jackson® Model 2095 Rim Latch Panic Devices (SKU: 312095LC4313)

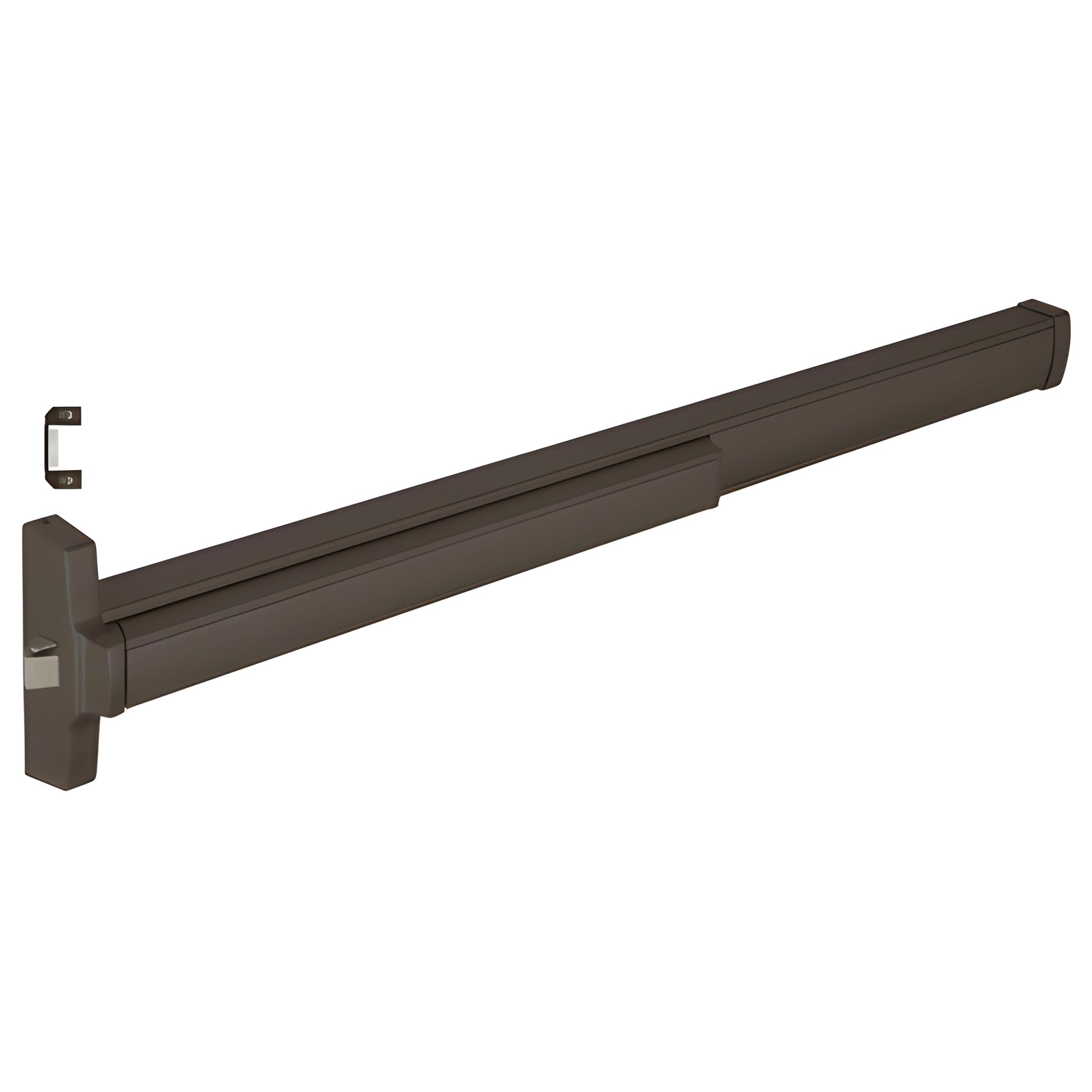

UL Listed and ANSI 156.3 Grade 1 certified, the Model 2095 rim latch panic device combines Jackson® durability with a clean aesthetic for commercial aluminum, wood, and hollow metal doors. Handed (not reversible), it features a concealed push-button dogging, a 3/4" (19 mm) throw deadlocking latch bolt, and a "Soft Touch" smooth, quiet action push pad for reliable emergency egress. Quick and easy to install, it’s ideal as a rim latch panic device for narrow-to-wide stile aluminum doors and retrofit projects.
Available finishes: Dark Bronze and Satin Aluminum anodized. Standard with Type 'C' Strike #302436628; optional Type 'S' Strike #302501628. Keyed entry requires a rim cylinder such as DL911SCKDA or Jackson® Outside Lever Trim Model 9500LV with a 1" mortise cylinder (sold separately). For wood door installations order Wood Door Mounting Kit #302521. For double doors, use with Jackson® Mullion 3089620958313.
SPECIFICATIONS:
- 2095 Rim Device
- Requires rim cylinder for keyed entry
- Cylinder mounting pad not required
- 3/4" (19 mm) throw deadlocking latch
MATERIALS:
- Body and push pad: extruded aluminum
- Mechanical components: stainless and hardened plated steel
- Latch and strikes: sintered steel
Find the CRL Jackson Model 2095 rim latch panic device for secure, code-compliant commercial doors — order or request a quote today.
