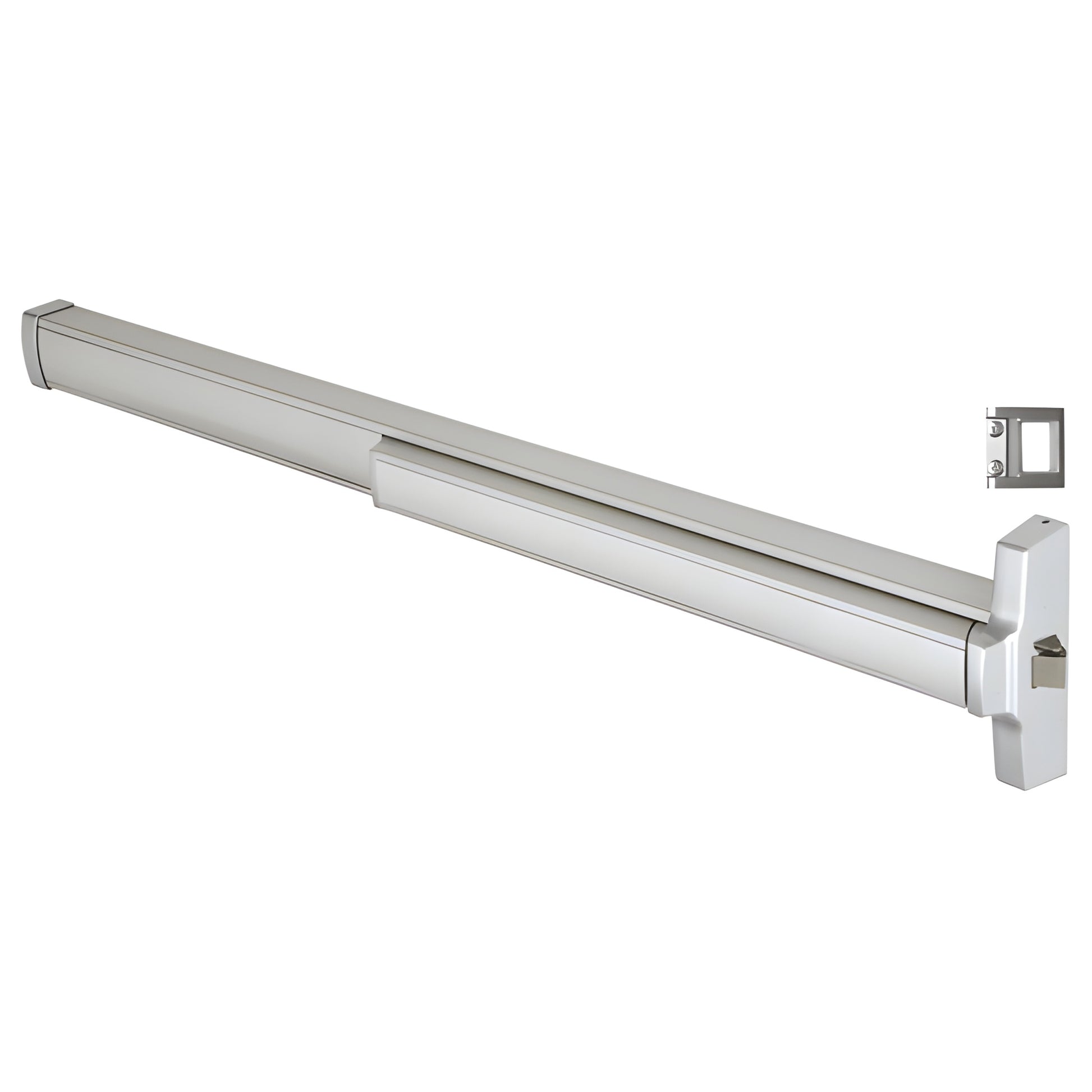

CRL Jackson® 2095 Rim Latch Panic Exit Grade 1 Fits 32–48" Door
CRL Jackson® 2095 Rim Latch Panic Exit Grade 1 Fits 32–48" Door
Regular price
$1,023.96 CAD
Regular price
Sale price
$1,023.96 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 312095RS4628
Shipping Weight: 9.2 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.2 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Certification
ANSI 156.3, Grade 1
Finish/Color
Satin Aluminum
Handing
Right Hand Reverse Bevel
Series
Jackson 2095 Rim Panics
Size
48
Type
Rim-S-Strike
Overview
- Designed for narrow, medium and wide stile aluminum doors, and for wood and hollow metal doors
- Complies with ANSI A156.3, Grade 1 (UL Listed)
- Concealed fastening for added security
- Can be cut to size for custom door widths
UL Listed and ANSI A156.3 Grade 1 certified, the Model 2095 rim latch panic device delivers high durability and quiet, reliable operation for commercial exit doors. Engineered for aluminum stiles (narrow–wide), wood and hollow metal doors, it features concealed push-button dogging, a 3/4" (19 mm) throw deadlocking latch bolt, and a "Soft Touch" push pad for smooth, quiet action. Handed design (not reversible) and quick installation make it ideal for high-traffic exit applications.
Finishes: Dark Bronze and Satin Aluminum anodized. Standard with Type 'C' Strike #302436628; optional Type 'S' Strike #302501628. For keyed entry add a rim cylinder (e.g., DL911SCKDA) or Jackson® Outside Lever Trim Model 9500LV with a 1" mortise cylinder (sold separately). For wood doors, order Wood Door Mounting Kit #302521.
SPECIFICATIONS:- Model: 2095 Rim Device
- Requires rim cylinder for keyed entry
- Cylinder mounting pad not required
- 3/4" (19 mm) throw deadlocking latch
- Body and push pad: Extruded aluminum
- Mechanical components: Stainless and hardened plated steel
- Latch and strikes: Sintered steel
Need a reliable ANSI Grade 1 rim latch panic device for aluminum or wood doors? Order the CRL Jackson® 2095 (SKU: 312095RS4628) today or contact us for help selecting the right strikes and cylinders.
