CRL 72" Silver Metallic Cielo Center Post Kit
Item# C72CKS
Shipping Weight: 0.01
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 0.01
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

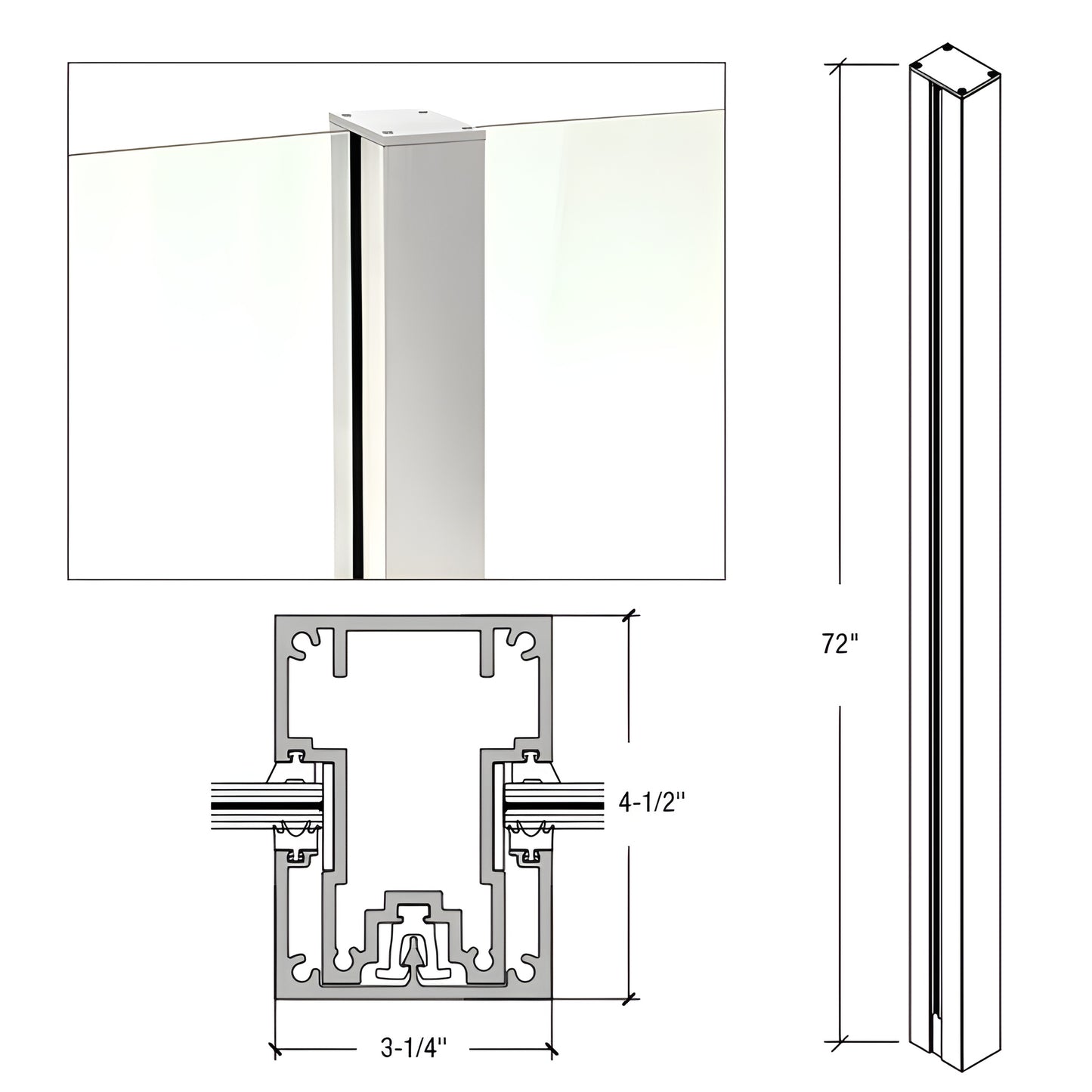

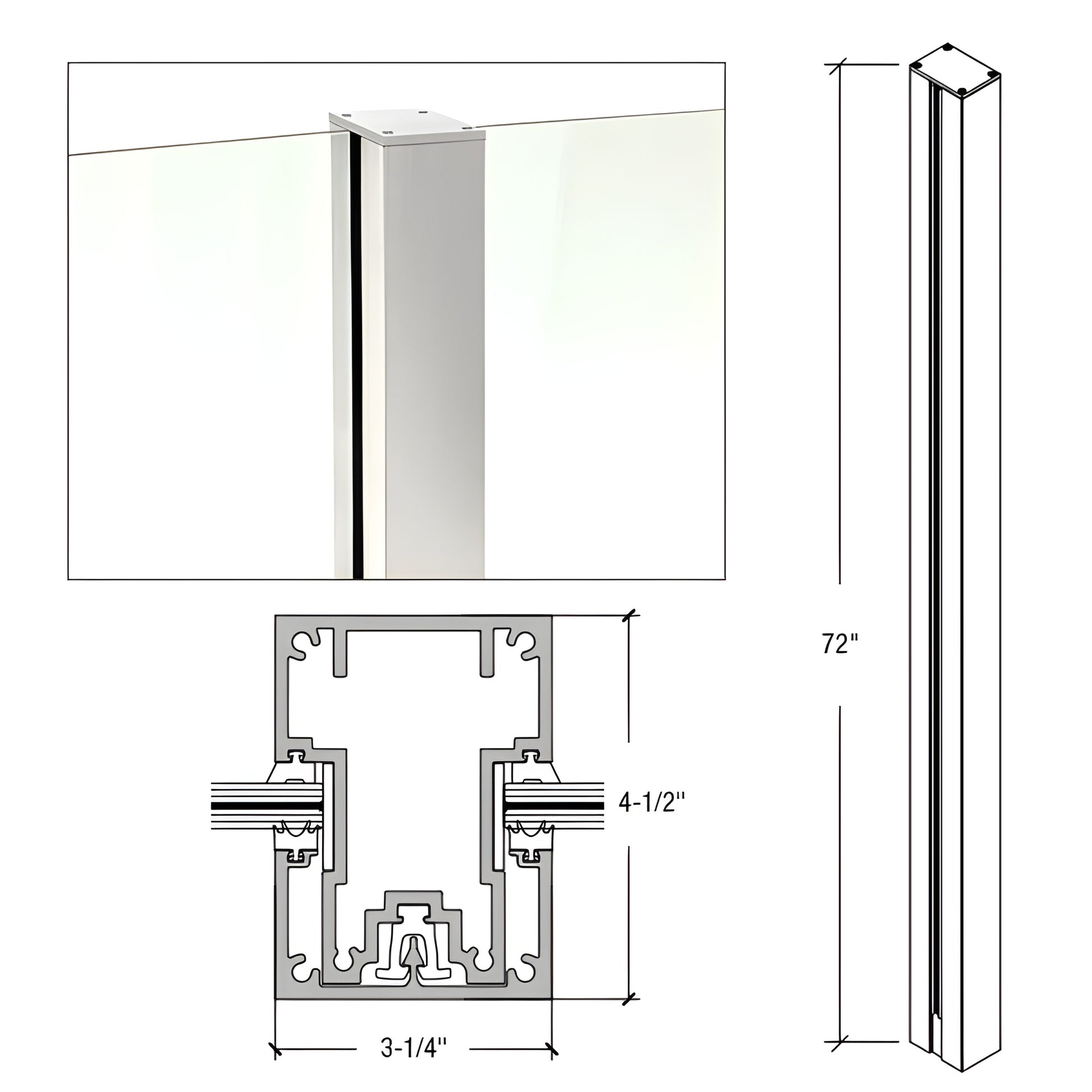

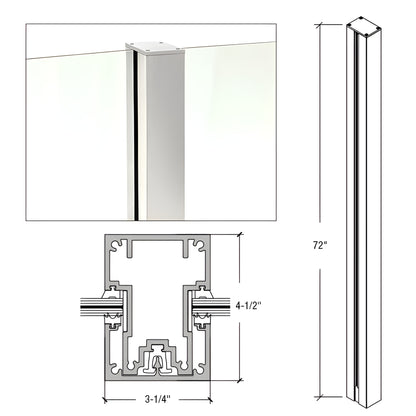

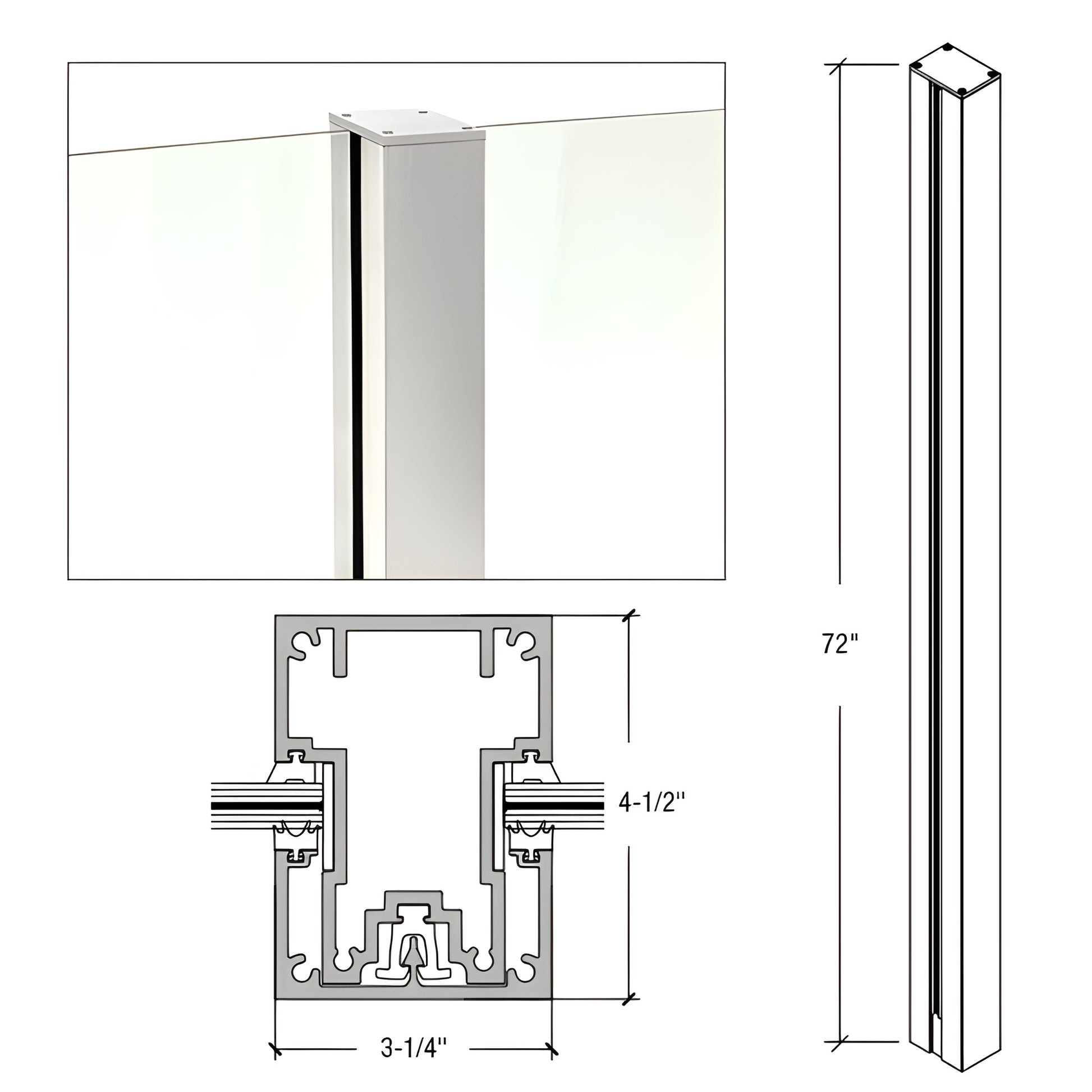

- Alloy6005-T6
- Depth4-1/2 in. (114 mm)
- Finish/Color:Silver Metallic
- Glass IncludedNo
- Glazing Thickness1/2 in. & 9/16 in. (12 mm & 14 mm)
- Height72 in. (1829 mm)
- MaterialAluminum
- Width3-1/4 in. (83 mm)
- 6, 7, and 8-Foot Post Heights
- Meets IBC 2018 Windload Requirements
- Durable 6005-T6 Aluminum Construction
- End Posts and Center Posts Available
- Surface or Core Mounting on Steel or Concrete
- Standard Finishes Include Matte Black, Silver Metallic, and Sky White
- For 1/2” Monolithic or 9/16” Laminated Glass
The Cielo Post Windscreen System features a slim 3-1/4” front trim and 4-1/2” post depth that delivers virtually unobstructed views and optimal structural performance. No horizontal extrusions are required for support, resulting in expansive post-to-post glass spans. A unique snap in system for post covers expedites installation and conceals fasteners to create a streamlined look.

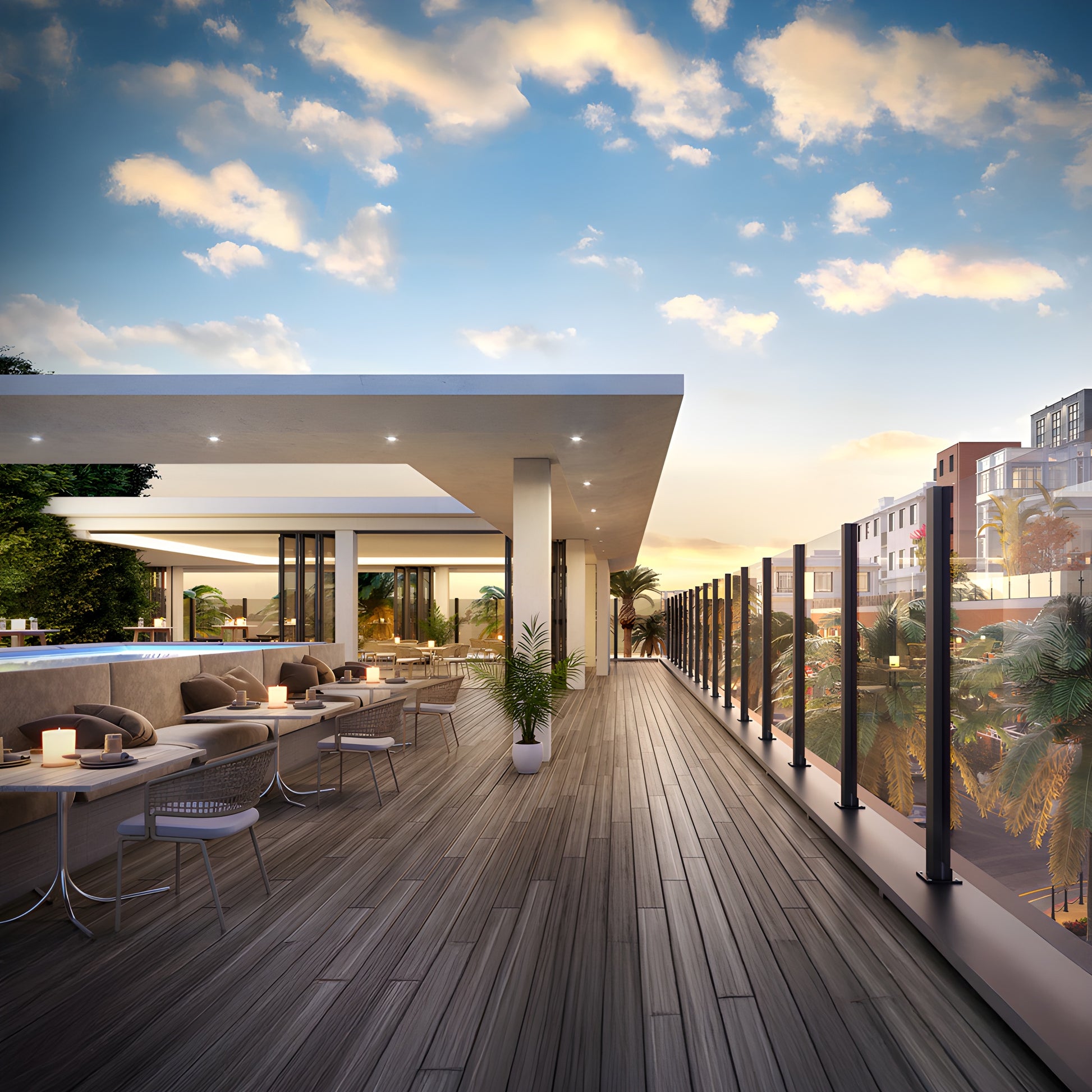

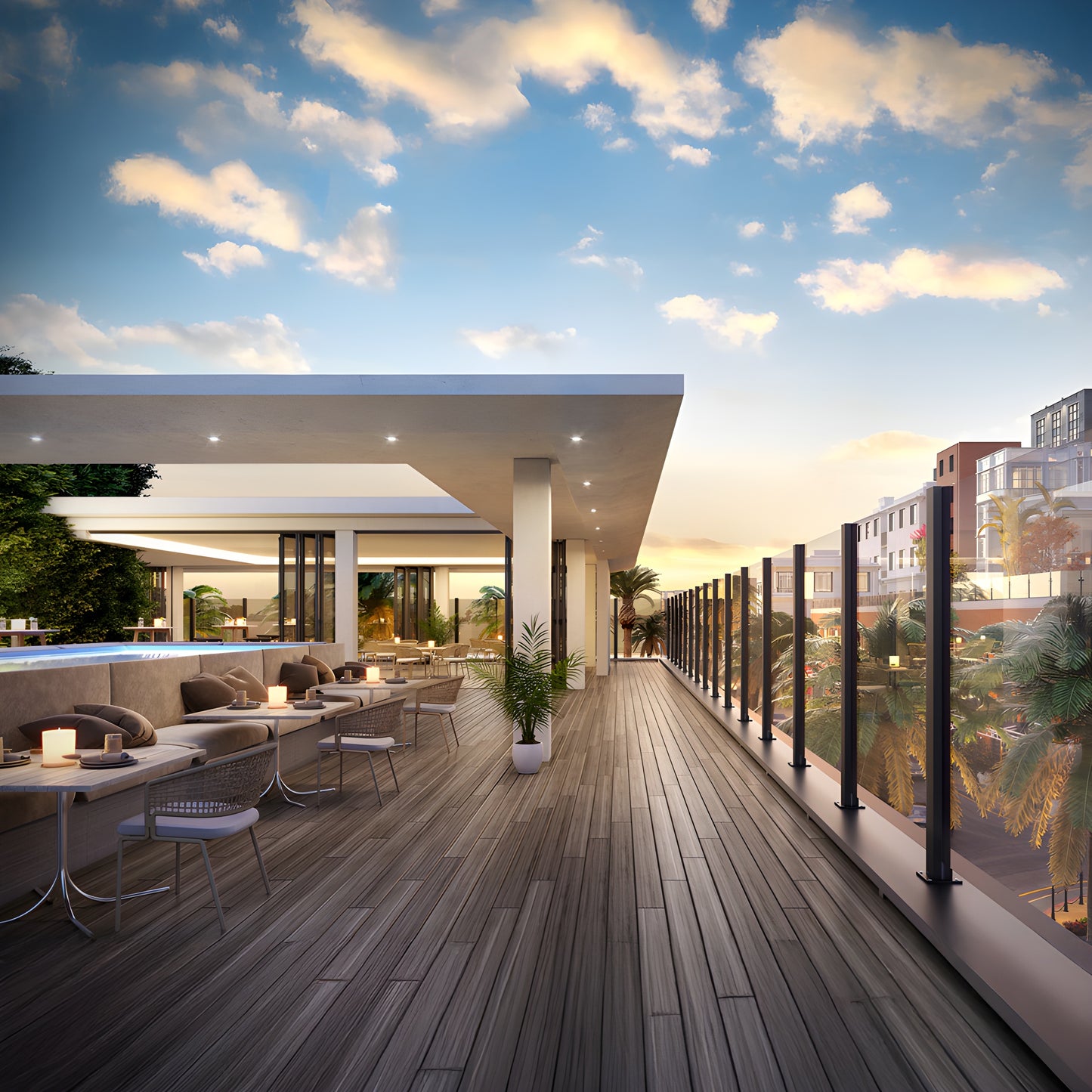

Cielo is ideal for commercial and residential buildings with high elevations. Applications include rooftop swimming pools, dining areas, lounges, and other high-altitude exteriors.
Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Installation Instructions
BIM Objects - rvt
BIM Objects - pdf
Quote Request Forms
Specifications
CAD Drawings - dwg
