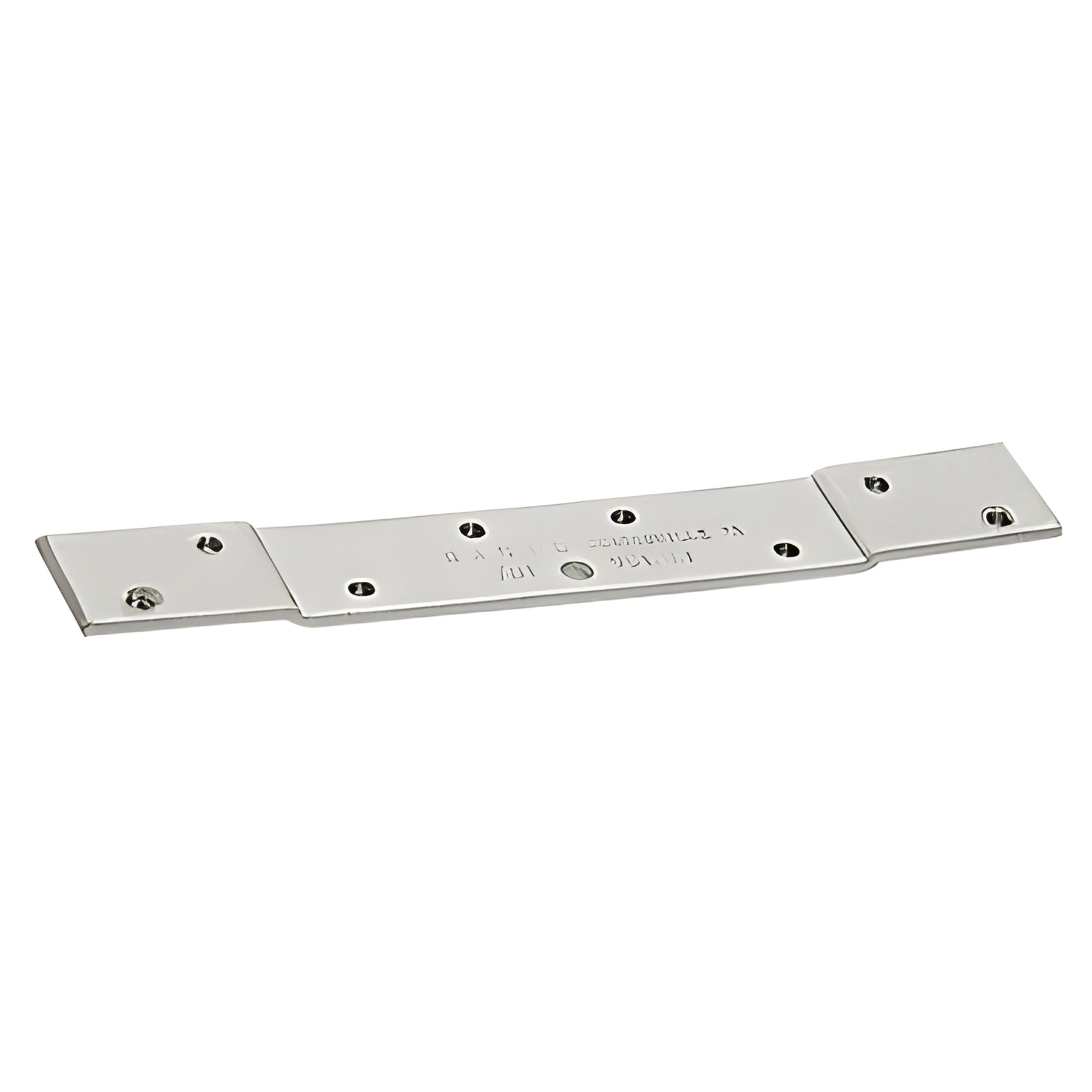

CRL 8" Steel Reinforcement Backing Plate
Item # MHA4
$18.72
CAD
Overview
| SKU | MHA4 |
|---|---|
| Sold As | 1 Each |
| Length | 8 in. (203 mm) |
| Overall Length | 8 in. (203 mm) |
| Thread Size | 12-24 |
| Type | Backing Plate |
Description
- Used with BB20, BB25, BB50, BB55, BB60,and BB65 Style Heavy Weight Butt Hinges
- Used to Mount Door Hinges to Storefront Tubes
- Non-Handed, Can Be Used for Both Door and Frame Reinforcement
- For Heavy Weight 4-1/2" (114 mm) Butt Hinges
This CRL Reinforcement Backing Plate is designed to support Heavy Weight BB20, BB25, BB50, BB55, BB60, and BB65 Style 4-1/2" (114 mm) Ball Bearing Butt Hinges when mounted to storefront tubes. They are non-handed, and made of heavy gauge, plated steel. Plates are tapped for standard 12-24 machine screws to mount the Plate to the frame or door.
