CRL 8" Polished Chrome RM Series Back-to-Back Door Pull Handle
CRL 8" Polished Chrome RM Series Back-to-Back Door Pull Handle
Regular price
$109.73 CAD
Regular price
Sale price
$109.73 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# RM8X8CH
Shipping Weight: 9.28 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.28 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Construction
Tubular
Design Style
Beveled
Diameter
3/4 in. (19 mm)
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Polished Chrome
Glazing Thickness
1/4 in. To 1/2 in. (6 mm To 12 mm)
Material
Brass

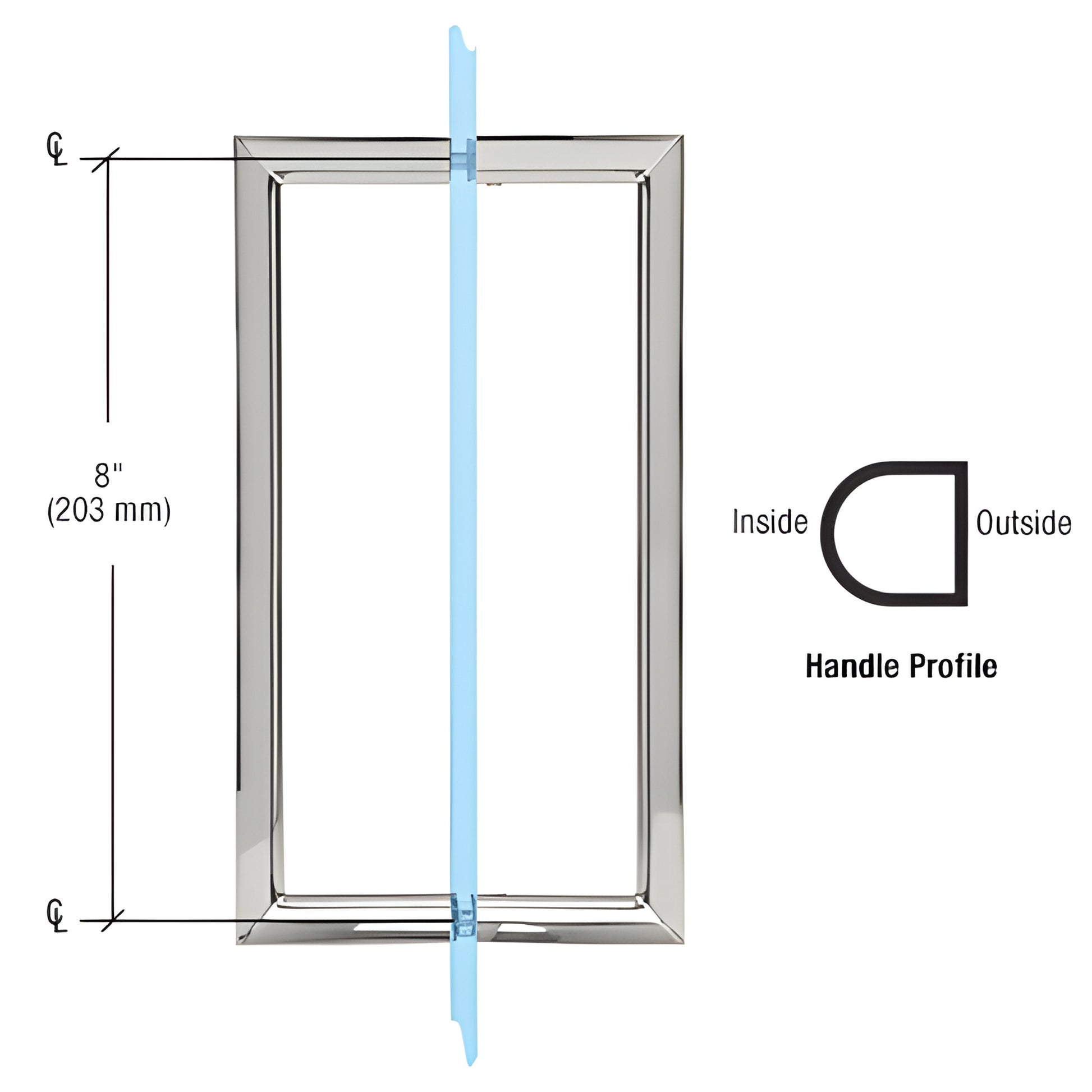

Mounting Center To Center
8 in. (203 mm)
Mounting Type
Glass Mount - Back To Back
Opening Style
Slide, Fold, Swing(side), Pivot(floor)
Projection From Surface
2-1/2 in. (64 mm)
Series
RM
Style Washer Diameter
1-1/4 in. (32 mm)
Style Washers
Yes
Tube Profile
Half Round
Tube Size
3/4
Overview
- Flat outside surface with round tubing inside for a comfortable grip
- Designed to match CRL Geneva, Vienna, Concord, Cardiff and other square-cornered hinges
- Stocked in several popular finishes
- Fits 1/4" to 1/2" (6 to 12 mm) monolithic tempered glass
The CRL RM Series Flat Outside Surface / Round Tubing Inside Back-to-Back Pull Handles (SKU: RM8X8CH) combine the square-cornered appearance of the SQ Series with the rounded inside grip of the MT Series. Ideal for tempered glass shower doors and wardrobe doors that use square-cornered hinge systems, these back-to-back pull handles provide a comfortable hold and coordinated look with popular CRL hinge lines.
Our pull handles are built from premium materials and are available in multiple finishes to complement bathroom and interior glass hardware. Choose from stocked options or request custom designs and finishes for specialty projects. These easy-to-install handles are suitable for commercial and residential shower enclosures and glass doors where durable, attractive hardware is required.
SPECIFICATIONS:
Material: 3/4" (19 mm) brass tubing; 1-1/4" (32 mm) metal washers
Glass Thickness Range: 1/4" to 1/2" (6 to 12 mm) tempered glass
Hole Diameter Required: 1/2" (12 mm)
Center-to-Center Hole Spacing: 6" (152 mm); 8" (203 mm)
Specifications
CAD Drawings - pdf
