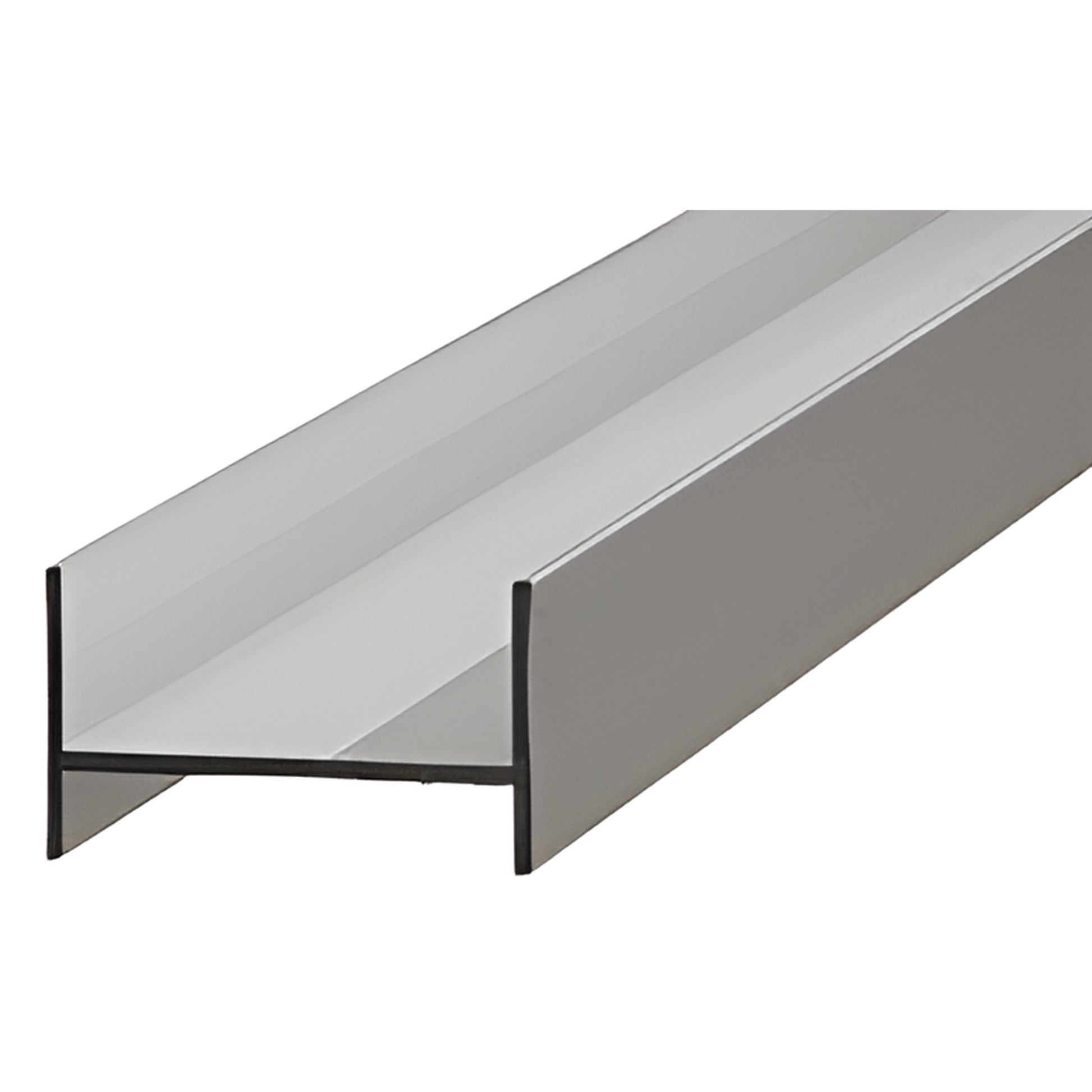

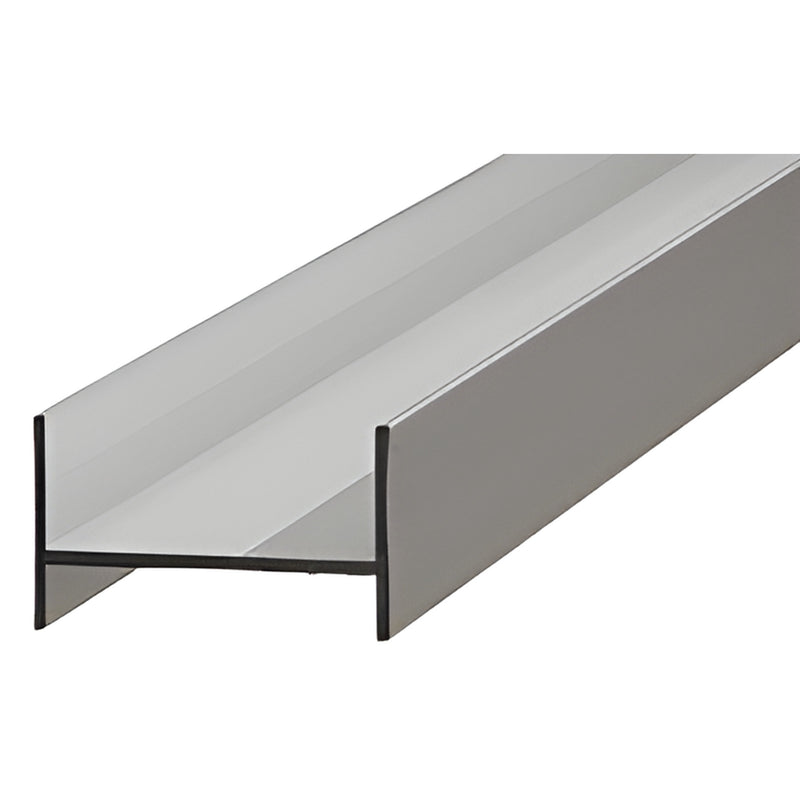

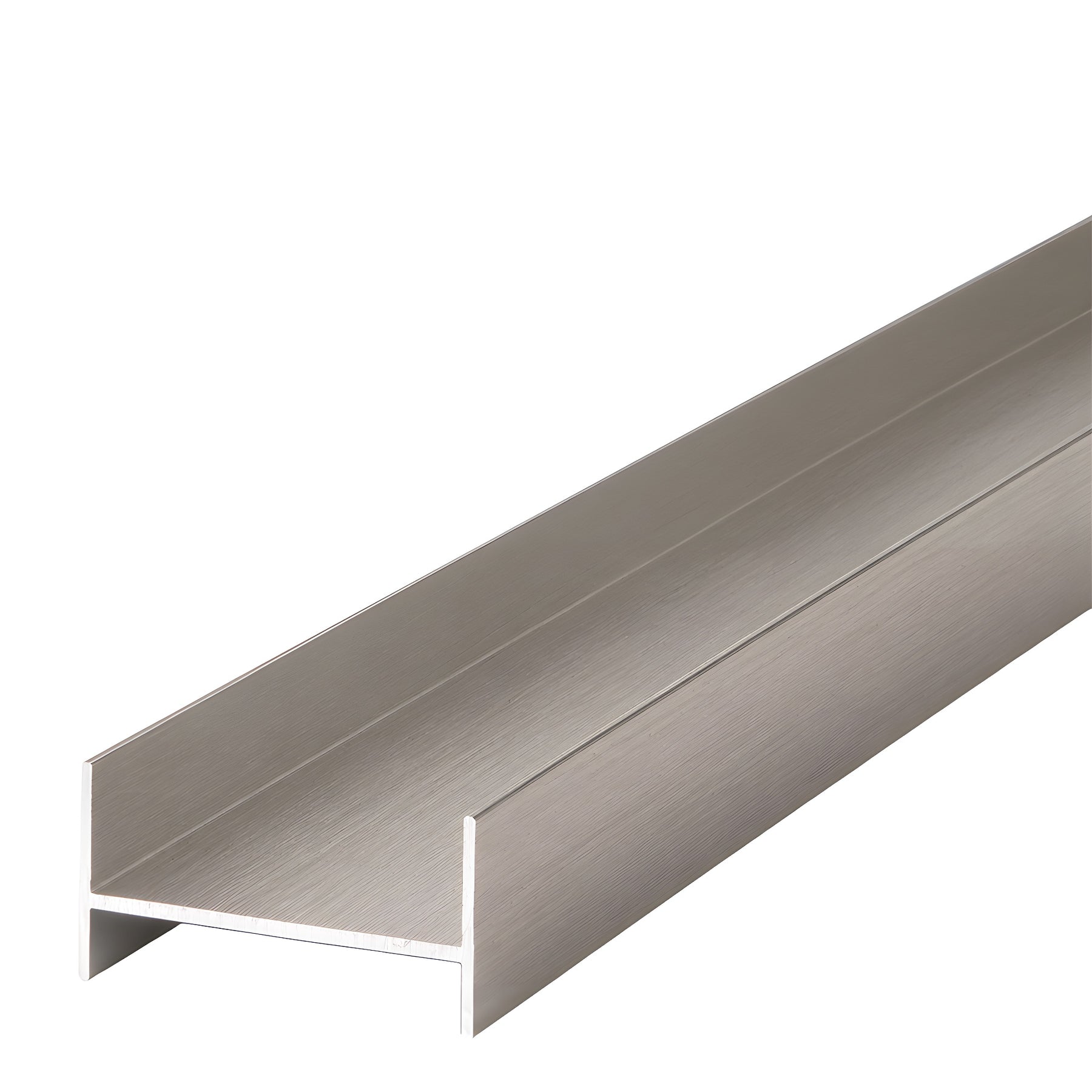

CRL 80" Brushed Nickel Side Jamb for CK/DK Cottage Series Sliders

• Side jamb for use against the vertical wall in DK series slider applications (SKU: DK65BN)
• Available finishes: Brite Anodized, Brite Gold Anodized, Brushed Nickel, Oil Rubbed Bronze — matches our Frameless Sliding Shower Door Kits
• DIY-friendly or send us a drawing to customize a unit
• Designed for monolithic tempered glass

CRL Side Jamb for CK/DK Cottage Series Sliders components expand the versatility of our frameless sliding shower door kits. Use the DK65BN side jamb to add panels for a designer enclosure or to build a custom sliding unit by combining headers, bottom sills, sidelite sills, side jambs, top hangers and other accessory extrusions available in stock lengths.

Use these precision extrusions to build the exact enclosure required, or email/fax a drawing with dimensions and we will prepare a customized kit that includes all hardware (except glass and silicone). Installation instructions are included with each custom kit.

NOTE: All fixed glass panels must be 3/8" (10 mm) thick.

SPECIFICATIONS:
Material: Extrusions (Aluminum), Towel Bar (Brass Tubing), Knob (Solid Brass)
Glass Thickness: 1/4" or 3/8" (6 or 10 mm) (glass not included)
Recommended Maximum Slider Sizes: 1/4" (6 mm) Glass: 60" W x 72" H (1.52 x 1.83 m) or 72" W x 60" H (1.83 x 1.52 m); 3/8" (10 mm) Glass: 72" W x 80" H (1.83 x 2.03 m)
Glass Fabrication: Towel Bar – Two 1/2" (12 mm) diameter holes, 24" (610 mm) center-to-center; Knob – One 1/2" (12 mm) diameter hole; Top Hangers – Four 1/2" (12 mm) diameter holes (two per glass panel)

Product Warning:

Hardware package includes corners and header bracket required to convert an inline shower door kit into an angled enclosure when used with the appropriate extrusions listed above. Must be ordered separately. Polycarbonates are translucent in color.
