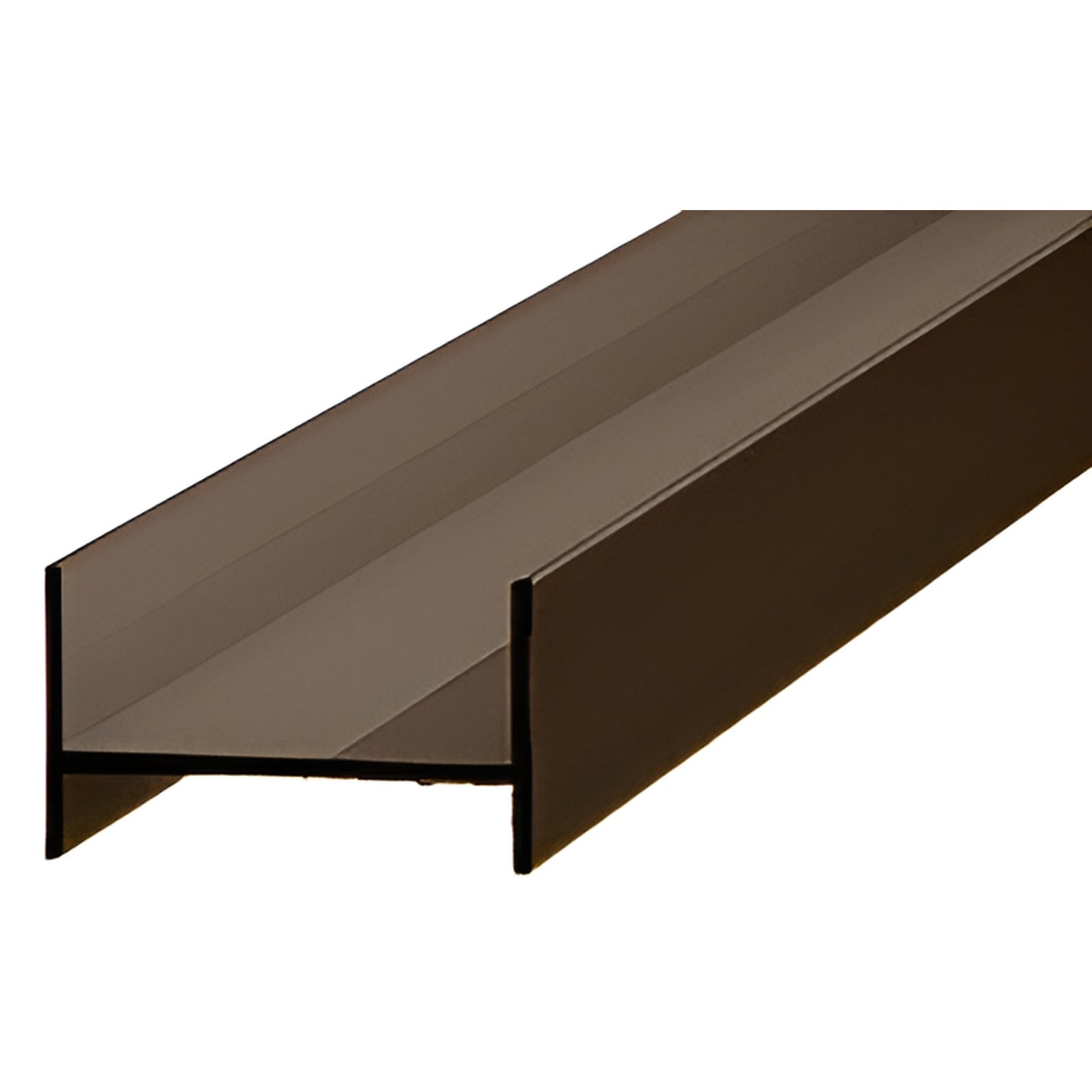

CRL 80 in Oil Rubbed Bronze Side Jamb for CK/DK Cottage Sliders

• Side jamb for DK series frameless sliding shower door applications — SKU DK650RB
• Available finishes: Brite Anodized, Brite Gold Anodized, Brushed Nickel, Oil Rubbed Bronze — matches our DK/CK kits
• DIY-ready or send a drawing to customize a unit to your shower opening
• Designed for monolithic tempered glass panels

CRL Side Jamb for CK/DK Cottage Series Sliders components add versatility to frameless sliding shower door kits. Use the DK650RB side jamb to add panels, build a multi-panel designer enclosure, or construct a custom sliding unit by combining headers, sill, top hangers and accessory extrusions. Stock lengths of headers, header fillers, bottom sills, sidelite sills, side jambs, top hangers and accessories complete the selection.

Use these components to build the enclosure you require, or email/fax a drawing with dimensions and we will assemble a customized kit that includes everything except the glass and silicone. Installation instructions are included with custom kits.

NOTE: All fixed panels of glass must be 3/8" (10 mm) thick.

SPECIFICATIONS:
Material: Aluminum extrusions; Towel Bar: Brass tubing; Knob: Solid brass
Glass Thickness: 1/4" or 3/8" (6 or 10 mm) — glass not included
Recommended Maximum Slider Sizes: 1/4" (6 mm) glass: 60" W x 72" H (1.52 x 1.83 m) or 72" W x 60" H (1.83 x 1.52 m); 3/8" (10 mm) glass: 72" W x 80" H (1.83 x 2.03 m)
Glass Fabrication: Towel Bar – Two 1/2" (12 mm) holes, 24" (610 mm) C‑to‑C; Knob – One 1/2" (12 mm) hole; Top Hangers – Four 1/2" (12 mm) holes (two per glass panel)

Product Warning:
Hardware package includes corners and header bracket required to convert an inline shower door kit into an angled enclosure when used with the appropriate extrusions; must be ordered separately. Polycarbonates are translucent in color.


Call or email us with your shower dimensions to get a custom DK650RB-side-jamb kit quote and start your frameless sliding shower
