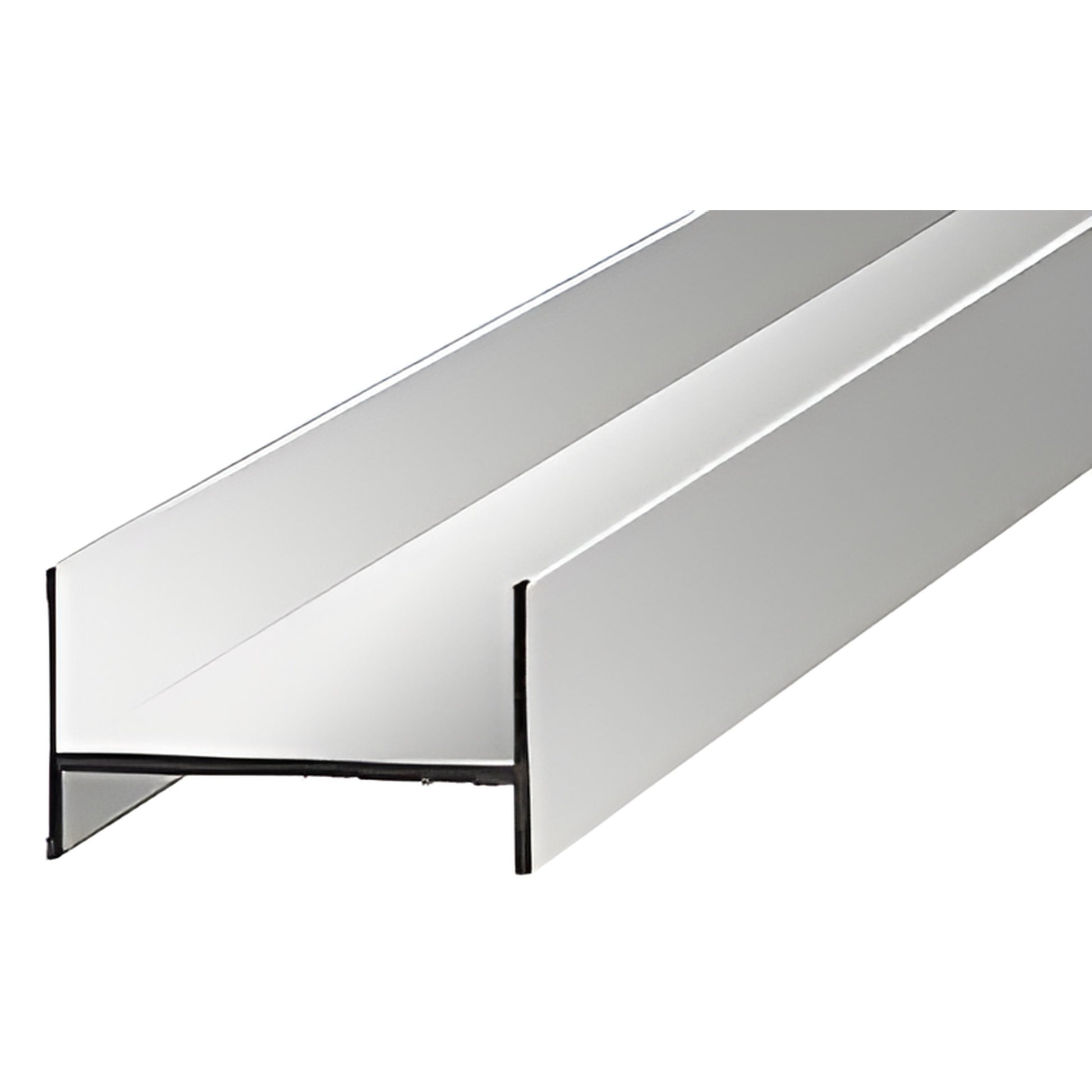

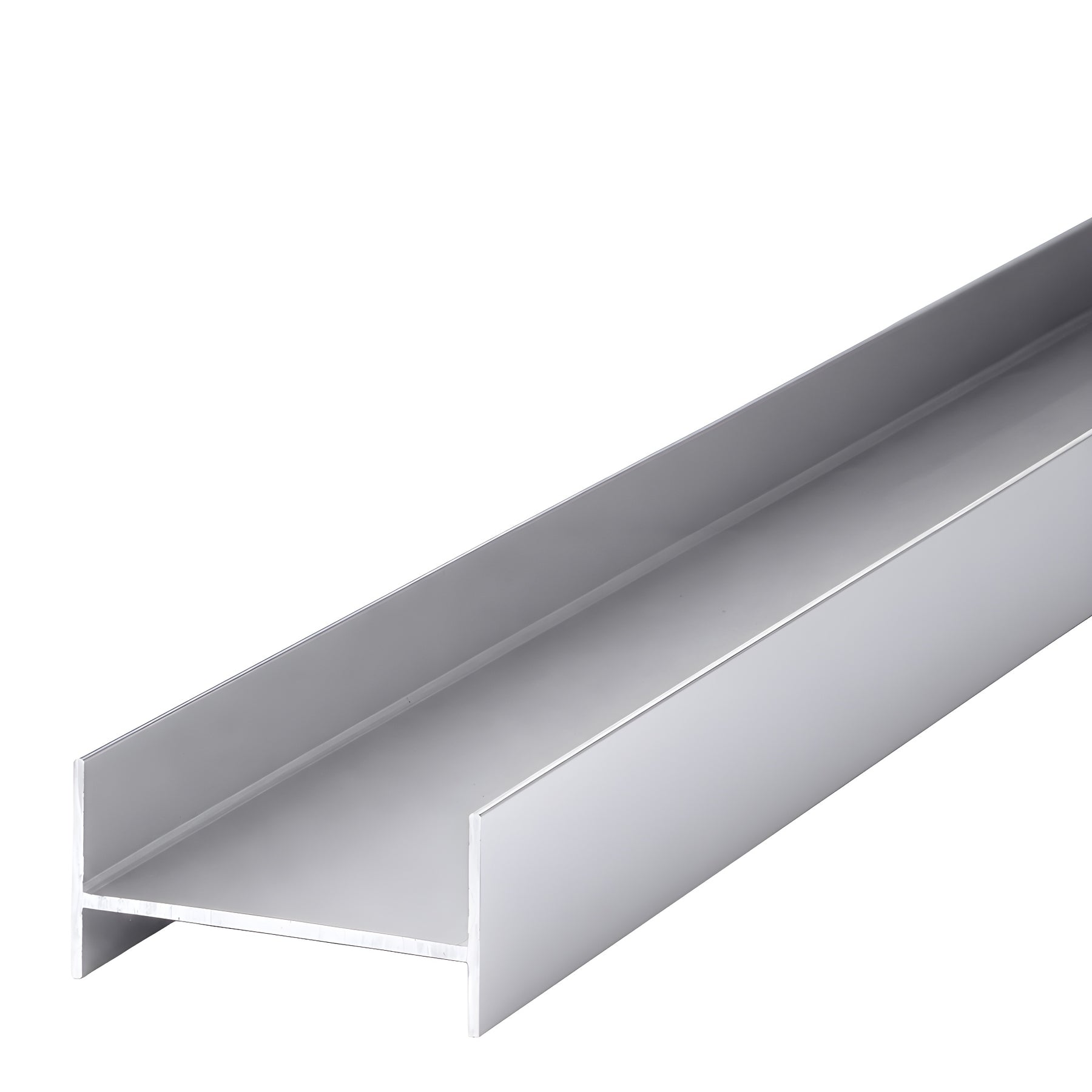

CRL 80-inch Brite Anodized Side Jamb for CK/DK Cottage Sliding Door

• Side jamb used against the vertical wall in DK Series slider applications (SKU: DK65BA)
• Finishes: Brite Anodized, Brite Gold Anodized, Brushed Nickel, Oil Rubbed Bronze — match our Frameless Sliding Shower Door Kits
• DIY friendly or send a drawing to customize a unit
• For use with monolithic tempered glass

CRL Side Jamb for CK/DK Cottage Series Sliders components add versatility to frameless sliding shower door systems. Use DK65BA side jambs to add fixed panels or build a custom sliding enclosure by combining headers, header fillers, bottom sills, sidelite sills, top hangers and accessory items available in stock lengths.

Use these extruded aluminum components to configure a designer enclosure, or send us a drawing with dimensions and we will assemble a customized kit (excludes glass and silicone). Installation instructions are included with each custom kit.

NOTE: All fixed panels of glass must be 3/8" (10 mm) thick.

SPECIFICATIONS:
Material: Extrusions (Aluminum), Towel Bar (Brass Tubing), Knob (Solid Brass)
Glass Thickness: 1/4" or 3/8" (6 or 10 mm) — glass not included
Recommended Maximum Slider Sizes: 1/4" (6 mm) glass: 60" W x 72" H (1.52 x 1.83 m) or 72" W x 60" H (1.83 x 1.52 m); 3/8" (10 mm) glass: 72" W x 80" H (1.83 x 2.03 m)
Glass Fabrication: Towel Bar – two 1/2" (12 mm) diameter holes, 24" (610 mm) C-C; Knob – one 1/2" (12 mm) diameter hole; Top Hangers – four 1/2" (12 mm) diameter holes (two per glass panel)

Product Warning:

Hardware package includes corners and header bracket required to convert an inline shower door kit into an angled enclosure when used with the appropriate extrusions listed above. Must be ordered separately. Polycarbonates are translucent in color.

Order DK65BA side jambs today to complete your CK/DK Cottage Series frameless sliding shower door build.
