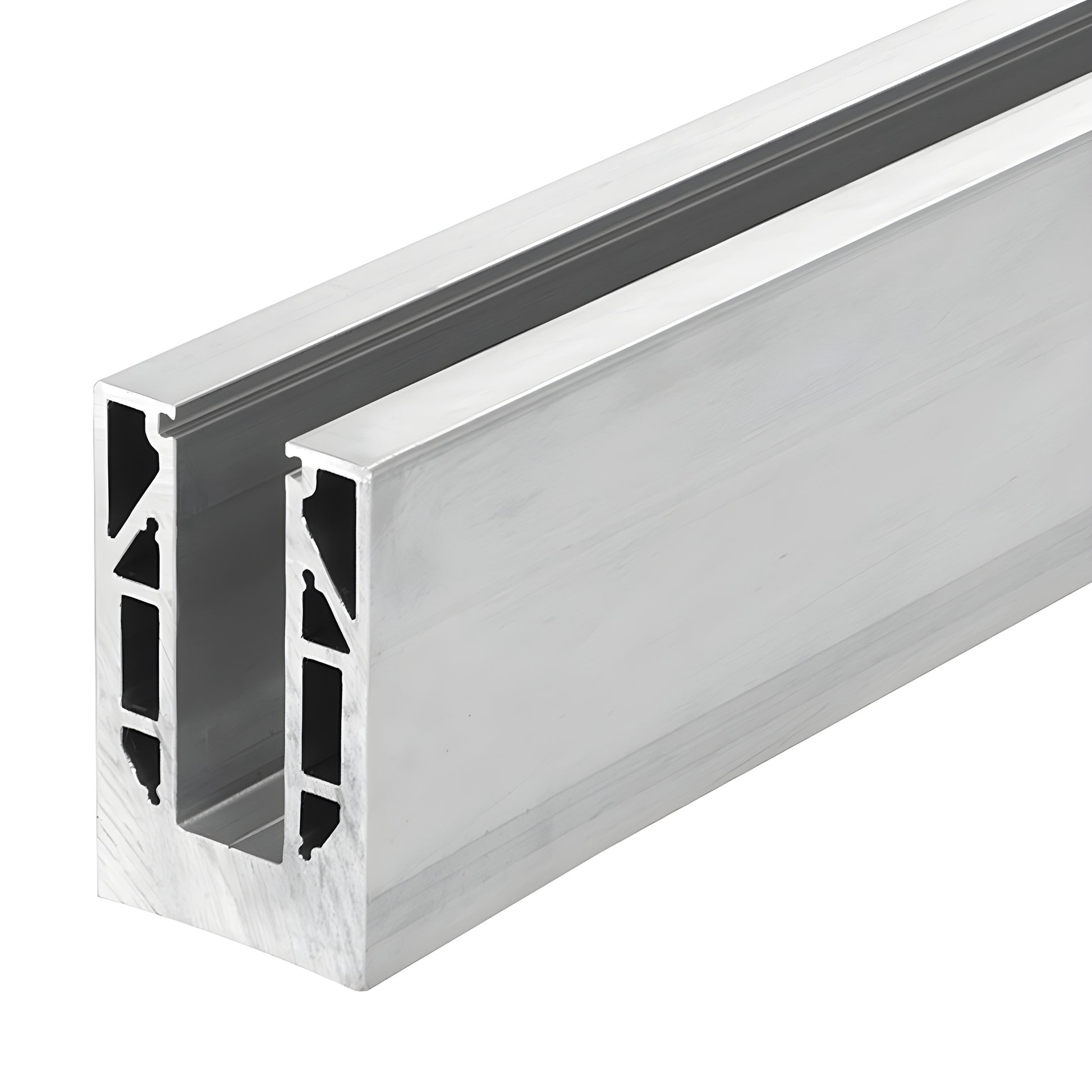

CRL 8B Series Mill Aluminum 120" Square Base Shoe Undrilled for 1/2" Glass

CRL 8B Series Mill Aluminum 120" Square Base Shoe Undrilled for 1/2" Glass

$1,027.11 CAD
$1,027.11 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 8B10
Shipping Weight: 62.11 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
View full details

Product Information

Description

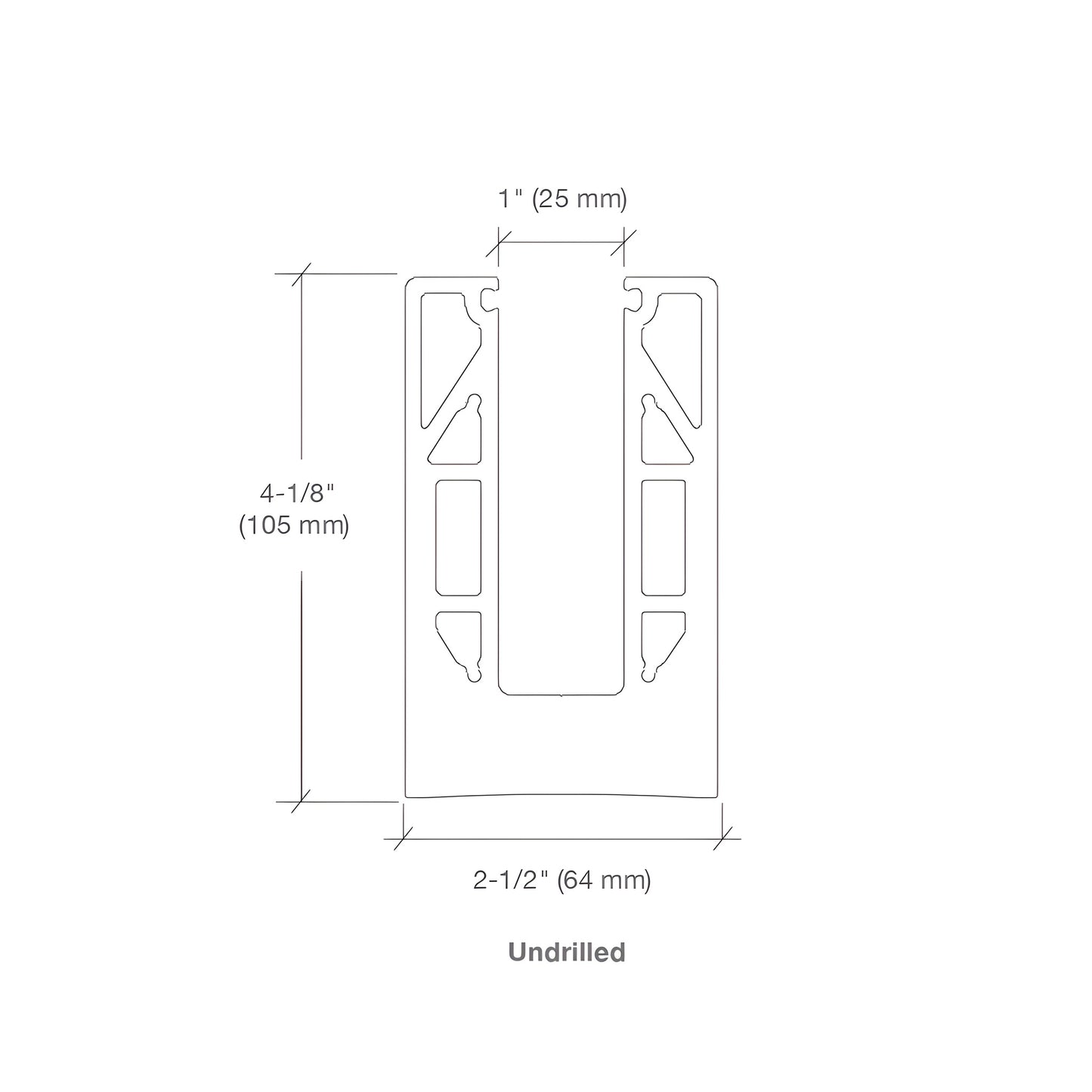

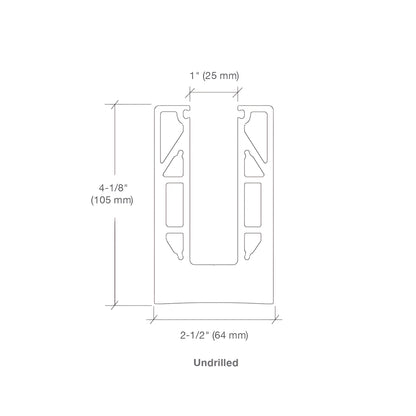

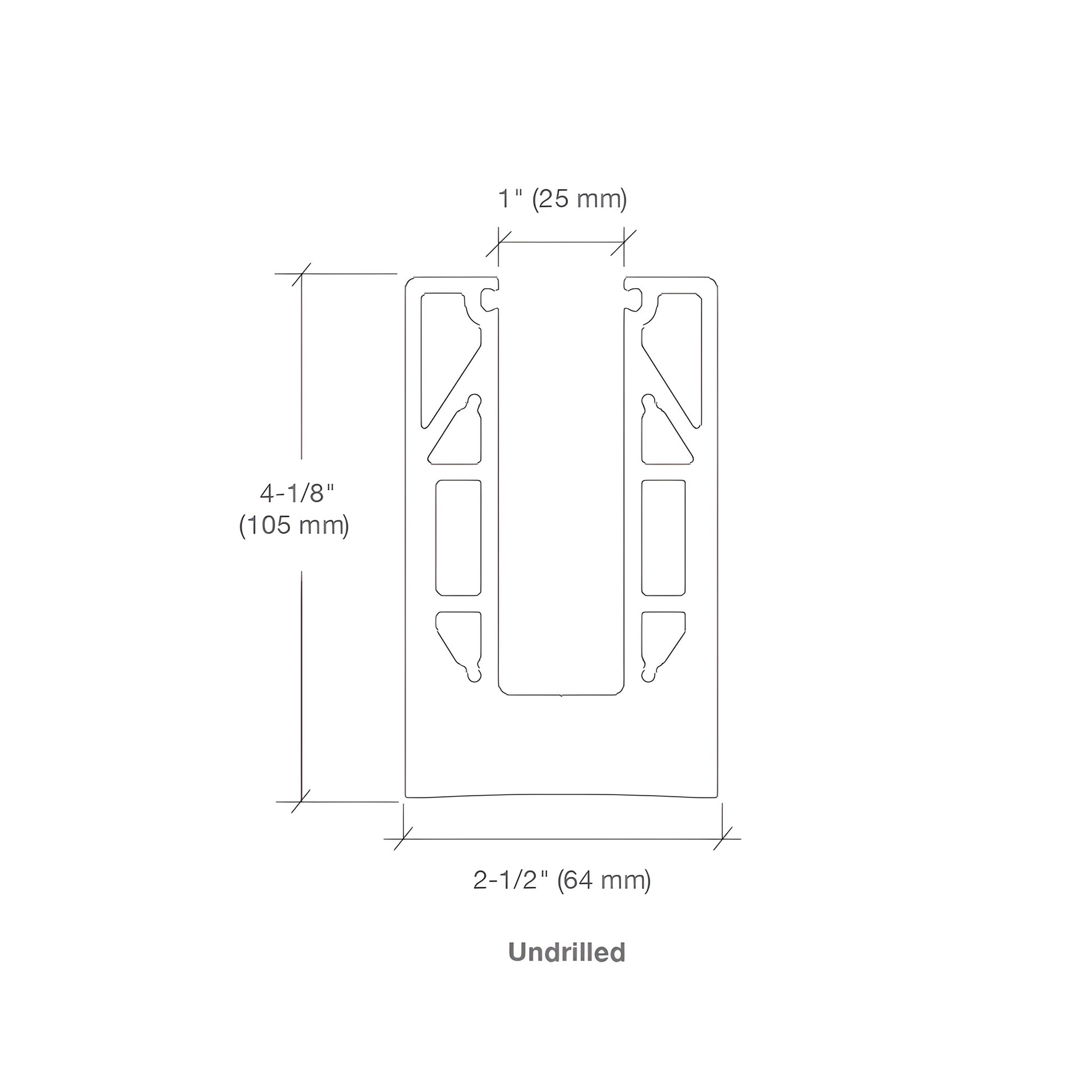

Finish/ColorMill
Glazing Thickness1/2 in. (13 mm)
GlazingType Monolithic
Height 4-1/8 in.(105 mm)
Length 120 in.(3048 mm)
MaterialAluminum
ProfileUndrilled
Width 2-1/2 in.(64 mm)

Overview

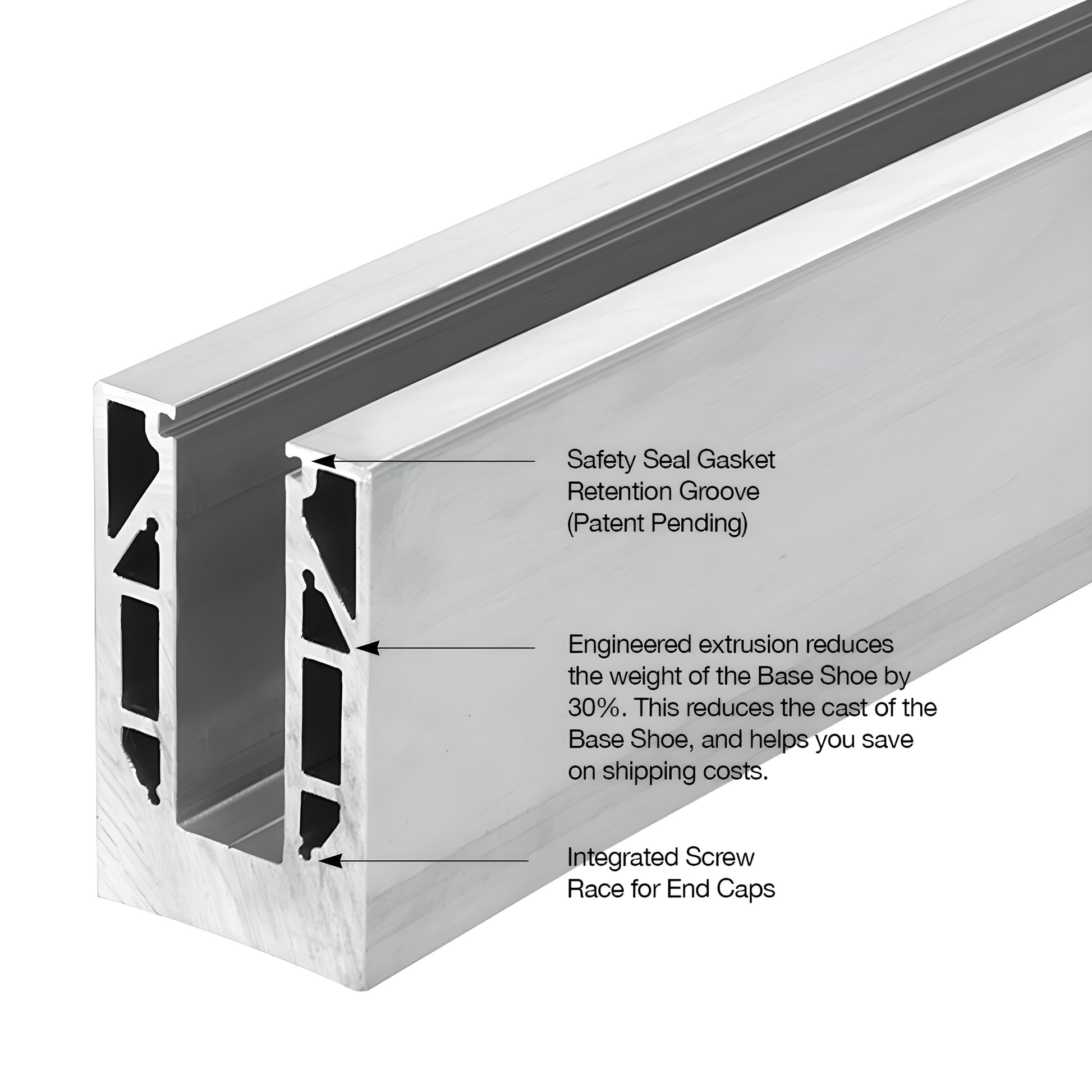

The CRL 8B Series Square Base Shoe is 30% lighter than CRL's traditional B5S Series, making it more cost-effective, eco-friendly, and reducing shipping expenses.
Engineered specifically for guard rail and windscreen applications, it is compatible with 1/2" (12 mm) monolithic tempered glass and available in 10' and 20' lengths, both drilled and undrilled.
This green product is easily customizable with a chop saw, ensuring it meets NBC load requirements when installed according to ICC-3269 standards.
Note that drilling is necessary for attachment, and powder coating should be applied over the base shoe cladding.
