CRL 8" ABS Handle Pump-Action Vacuum Lifter for Curved Surfaces

Item # S109

$141.08 CAD

Overview

SKUS109
Sold As1 Each
Carrying TrayYes
HandleABS
Lifting Capacity125 lbs.(57 kg)
Pad Diameter8 in. (203 mm)
Pad Quantity1

Description

  • Designed Primarily for Lifting Curved Architectural Glass
  • Lifting Capacity 125 Lbs. (57 kg)
  • Red-Line Indicator Warns User of Any Vacuum Loss
  • Thumb Trigger for Instant Release

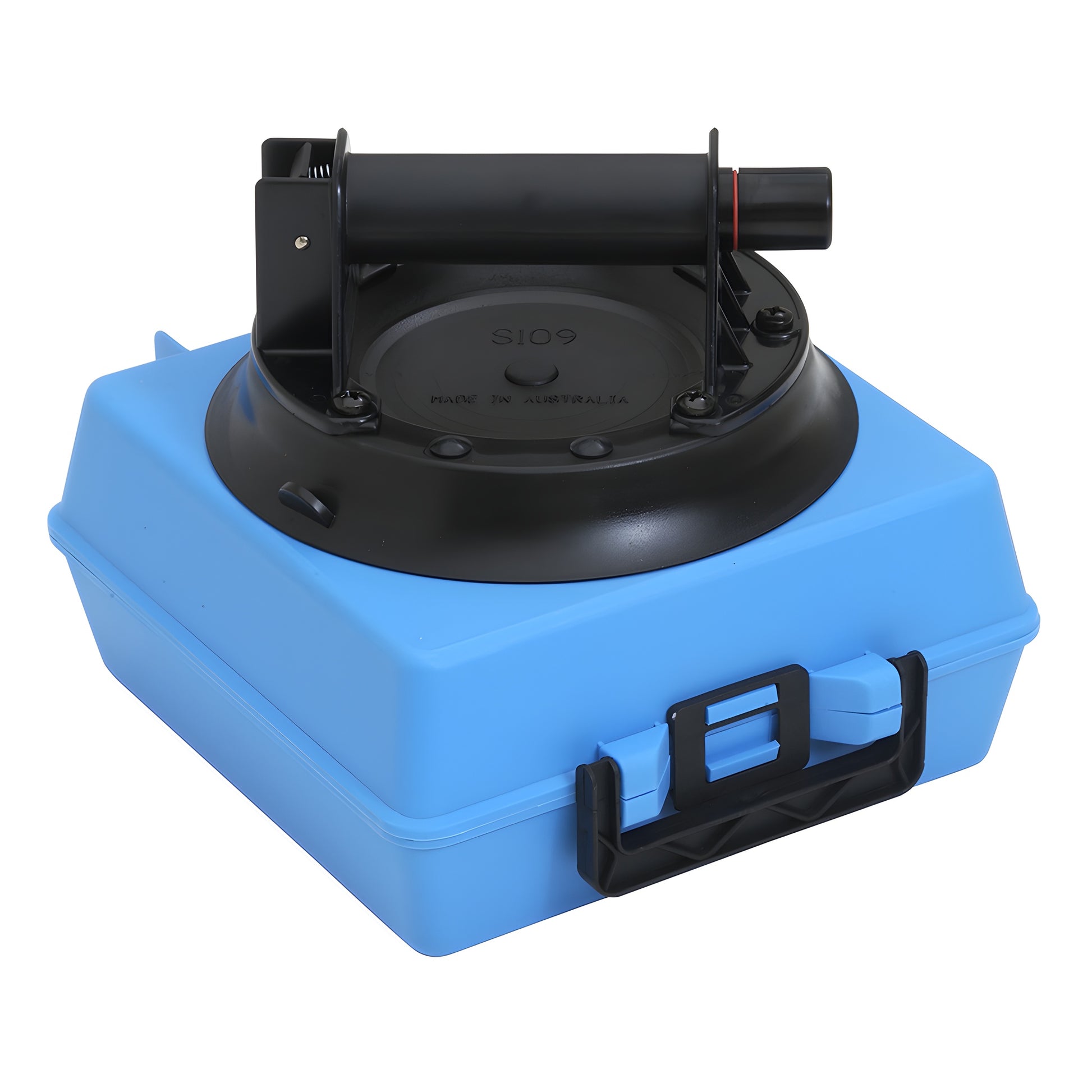

  • Includes Protective Carrying Case
  • 8" (203 mm) Vacuum Pad

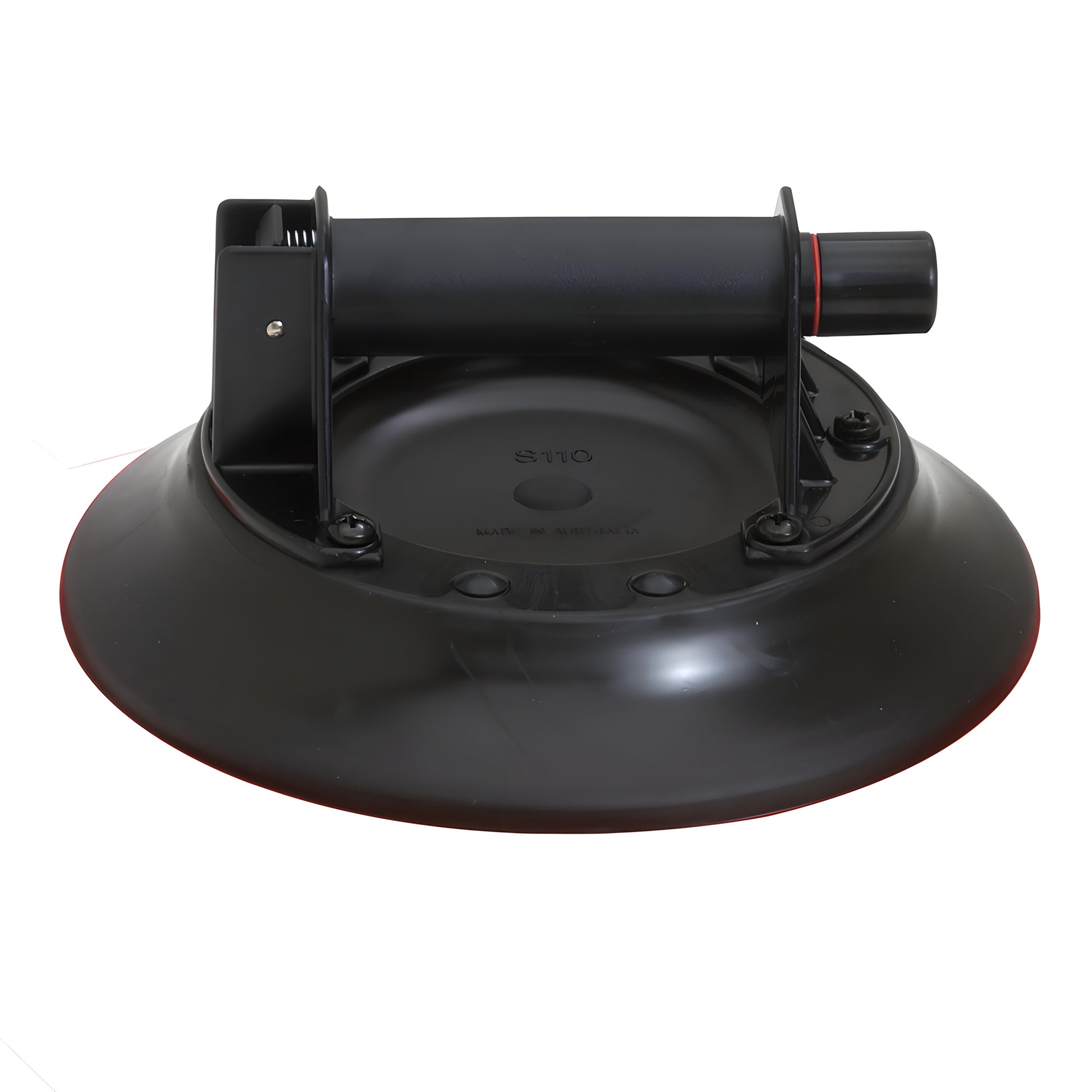

CRL Pump-Up Vacuum Lifters for Curved Glass are designed to make the carrying and lifting of large architectural curved glass sheets, windscreens (windshields), and thin flexible materials such as 1/16" (2 mm) sheet metals safe and easy. The handle is composed of tough ABS plastic, and the rubber suction cup has a diameter of 8" (203 mm). Vacuum attachment to flat, non-porous surfaces is achieved in a few seconds by depressing the pump's plunger until it stays well within the handle, beyond the red-line safety indicator. Once attachment has been achieved the glass sheet can be lifted easily by hand. The rubber cup has the capability of handling almost any manual lift without damaging the delicate surface, and is released instantly from the material by pressing the thumb release. It comes with a protective carrying case.


Product Warning:

Minimum recommended radius for curved glass is 31.5" (800 mm).
